HTS801
Available on backorder
-
The HTS801, distributed by Instromart is a high-performance instrument developed for monitoring humidity and temperature with outstanding accuracy in industrial environments.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

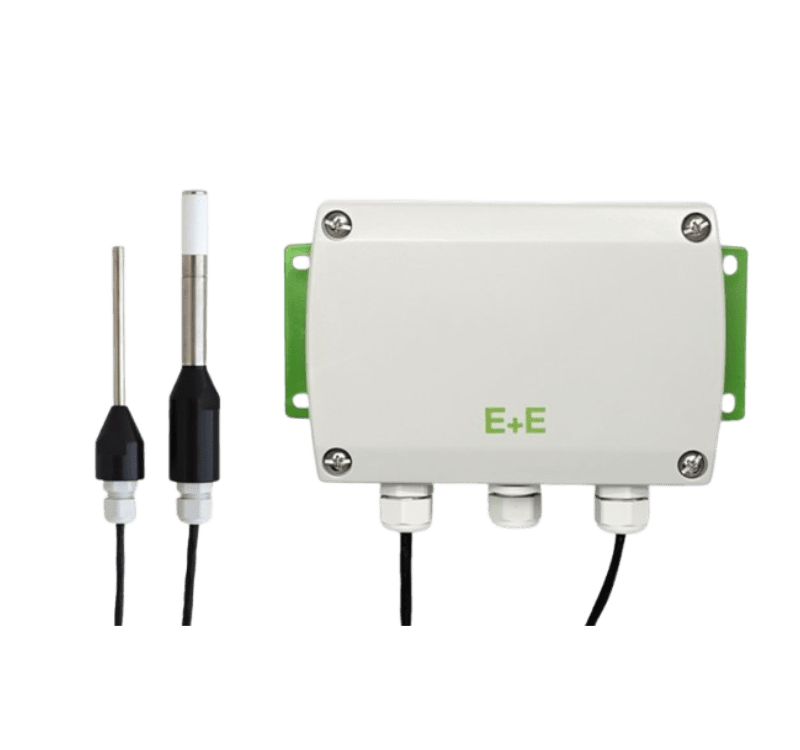

HTS801 – Industrial Humidity and Temperature Sensor
The HTS801 is a high-performance instrument developed for monitoring humidity and temperature with outstanding accuracy in industrial environments. Designed to withstand demanding operating conditions, it provides reliable measurement results and flexible connectivity, making it an ideal choice for applications in process control, HVAC automation, pharmaceutical production, and cleanroom monitoring.
Specifications
| Measured Values | Relative humidity, temperature, with optional outputs for Td, Tw, and x. |
| Humidity Accuracy | ±1.3 %RH (within 10–90 %RH). |
| Temperature Accuracy | ±0.1 °C (varies with configuration). |
| Signal Outputs | Analog: 0–10 V or 4–20 mA (2-wire / 3-wire). Digital: Modbus RTU, BACnet MS/TP. |
| Sensor Elements | Capacitive RH sensor and Pt1000 temperature element. |

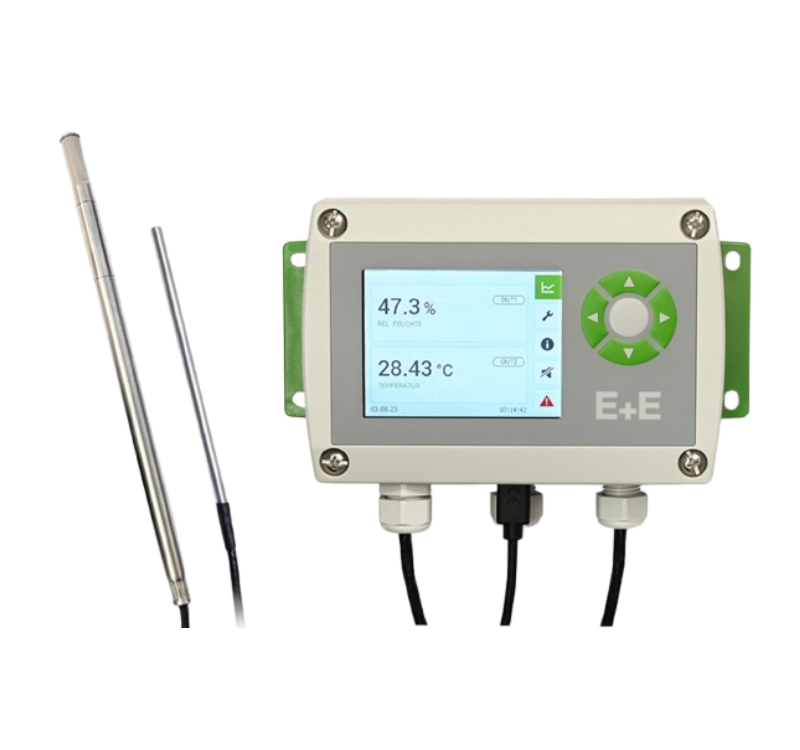

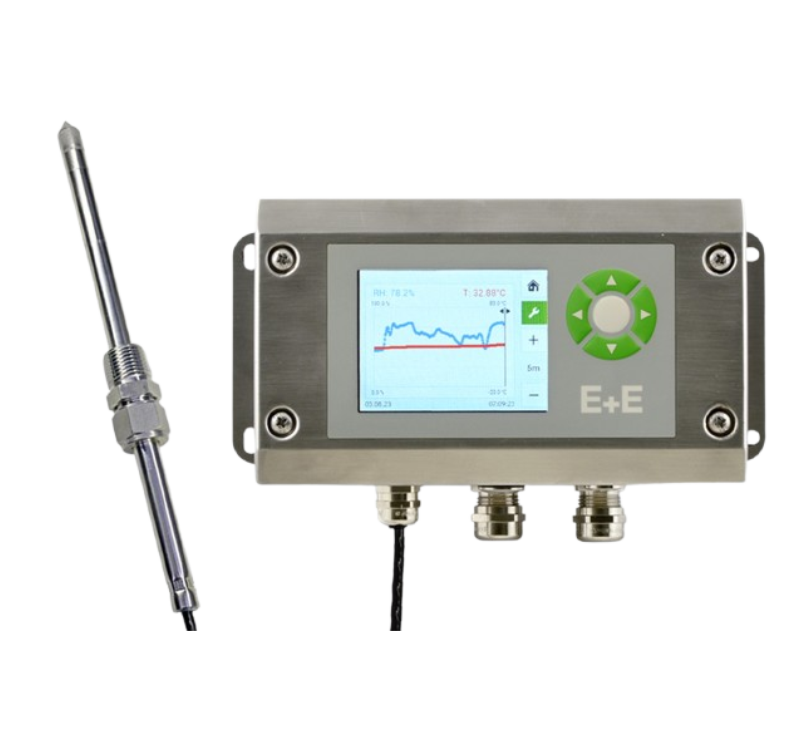

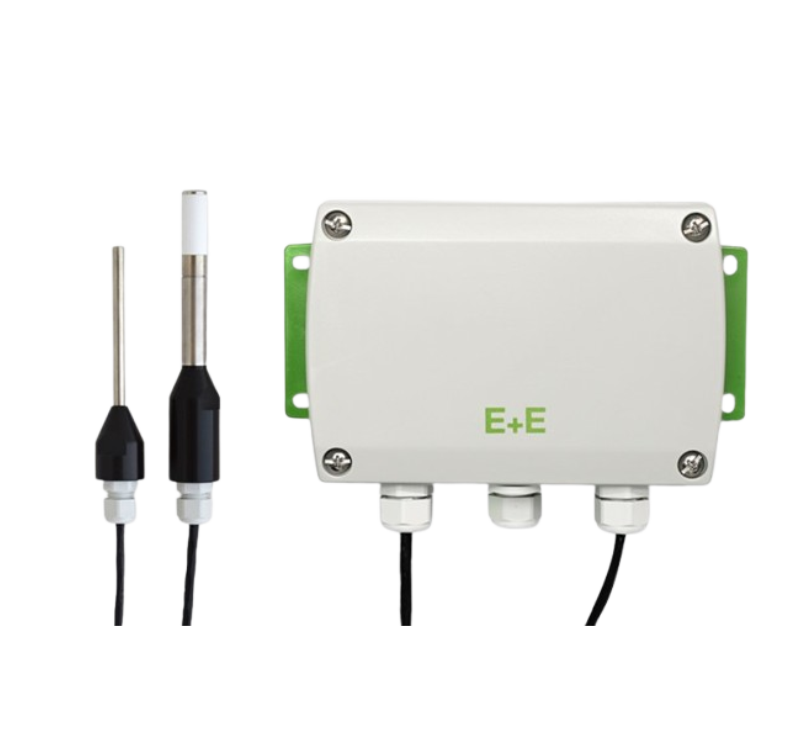

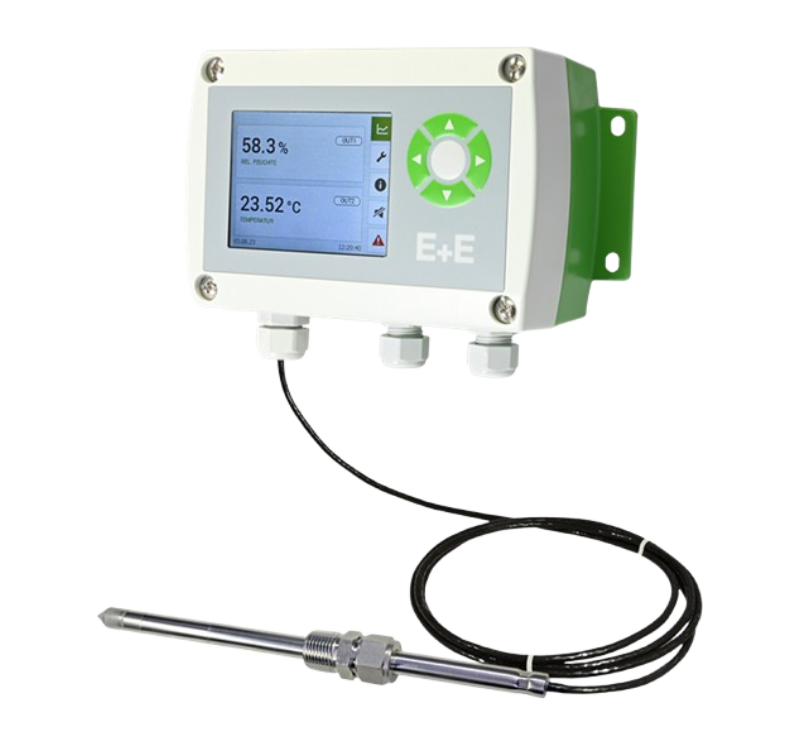

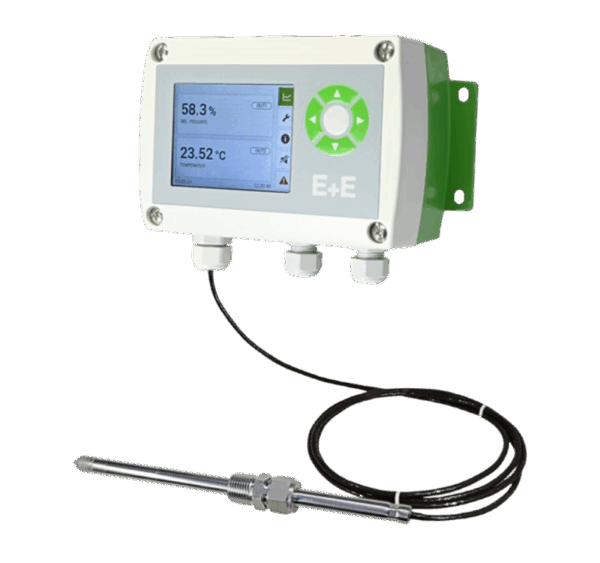

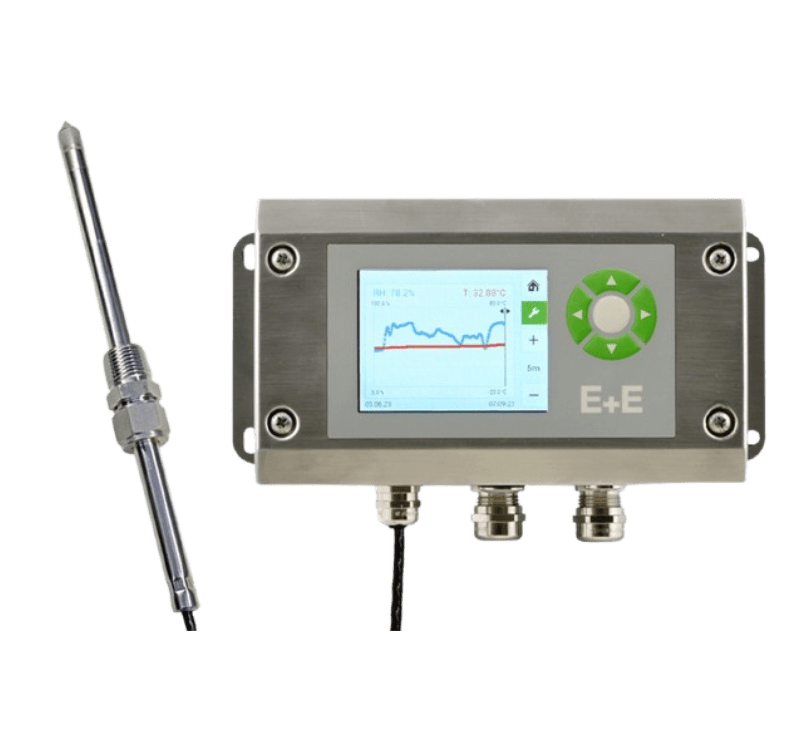

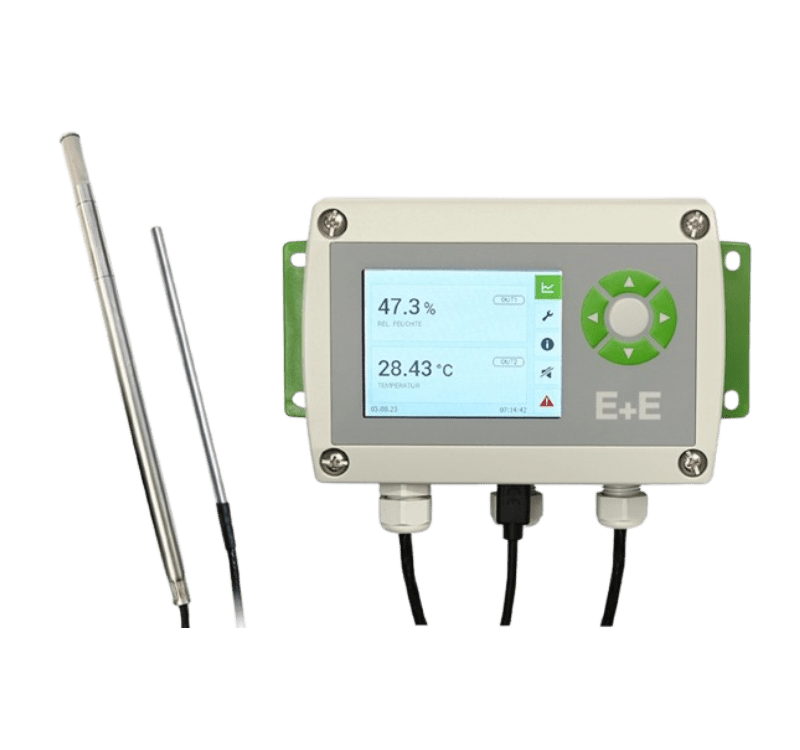

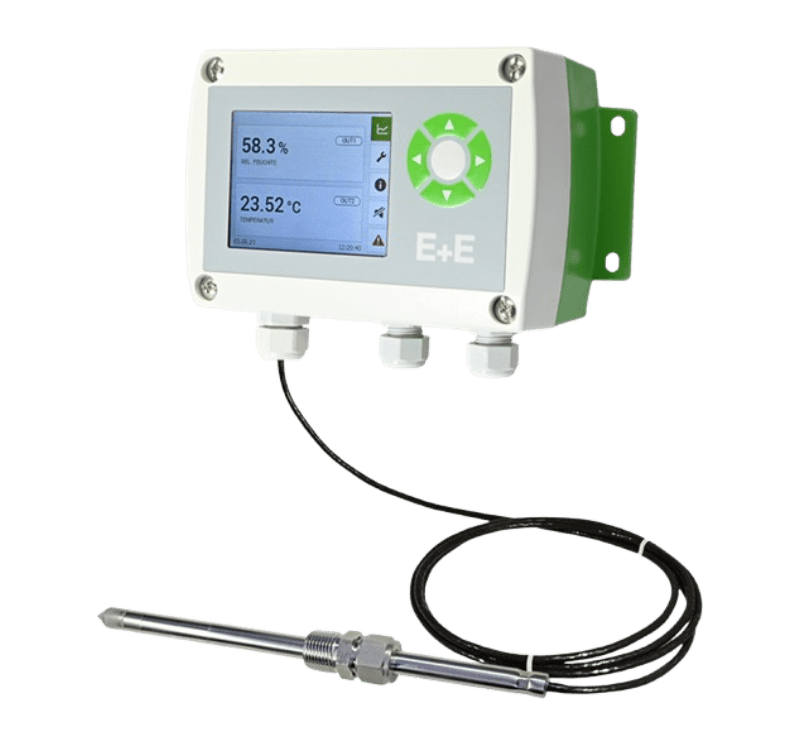

| Probe Types | Wall, duct, or remote mount with stainless steel or polycarbonate options. |
| Sensor Module | Factory-calibrated, plug-and-play replacement. |
| Configuration Interface | Micro USB, accessible via PC software. |
| Power Supply
|
8 - 35 V DC 12 - 30 V AC 100 - 240 V AC, 50/60 Hz with option AM31. |
| Working range | Temperature: -80 °C to +180 °C Humidity: 0 to 100 %RH |
| Housing Protection | IP65 / NEMA 4 rated. |
| Certifications | Complies with CE, UKCA, FCC, IC, and RCM standards. |
Main Features
- Real-Time Dual Sensing – Accurately measures both ambient temperature and relative humidity at once.
- Multiple Output Options – Offers compatibility with Modbus RTU, BACnet MS/TP, and standard analog signals (0–10 V, 4–20 mA).
- Interchangeable Sensor Head – Enables fast on-site replacement without needing recalibration or downtime.
- Easy Configuration Access – USB port and software interface for personalized setup and diagnostics.
- IP65 Protected Housing – Engineered to perform reliably in dusty, wet, and harsh industrial areas.
- Durable Probe Materials – Available in duct, wall-mounted, and remote versions with stainless steel or polycarbonate construction.
- High Measurement Precision – Ensures tight accuracy tolerances of up to ±1.3 %RH and ±0.1 °C.
- Modular System Design – Allows quick sensor swaps, reducing maintenance effort.
- Supports Modern and Legacy Systems – Compatible with both analog wiring and digital bus communication.
- Wide Temperature Handling – Operates effectively across extreme ranges from -80 °C to +180 °C.
- Suitable for Sensitive Environments – Designed for use in pharma, cleanrooms, and precision-controlled facilities.
Industrial Applications
- Cleanroom Environments – Helps maintain precise air quality for pharmaceutical or semiconductor processes.
- HVAC and Building Control – Enables intelligent temperature and humidity regulation.
- Food and Beverage Production – Supports hygiene and storage conditions with stable environmental control.
- Environmental Test Labs – Ensures reproducible conditions for performance testing.
- Industrial Manufacturing – Withstands tough plant conditions while delivering precise environmental data.
