EE771
$999.00
The EE771, available from Instromart, It is specifically designed for use in pipelines with diameters ranging from DN15 to DN50 and features a modular design that ensures quick and simple installation without the need for additional tools.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

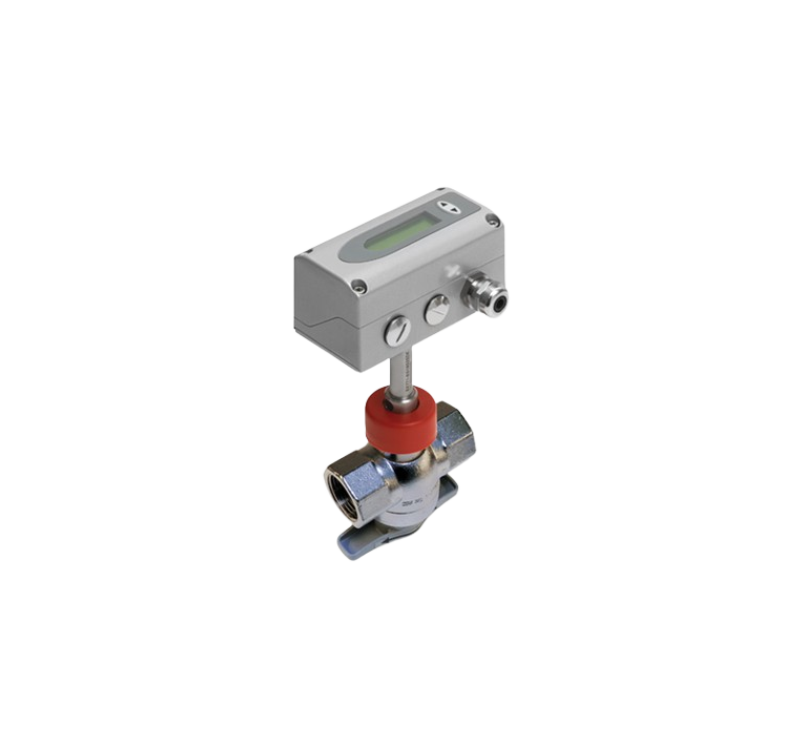

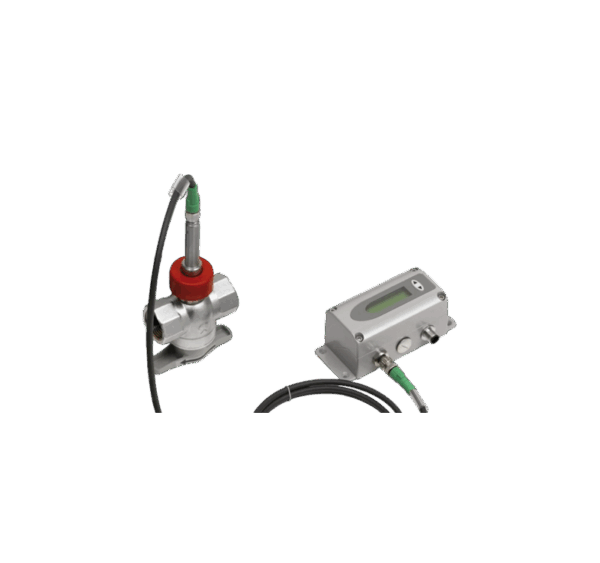

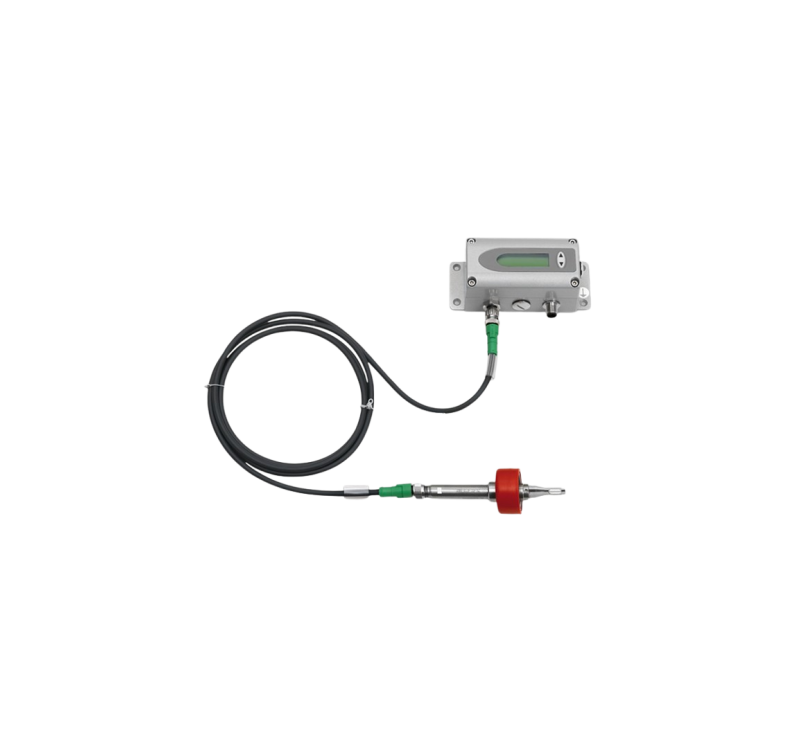

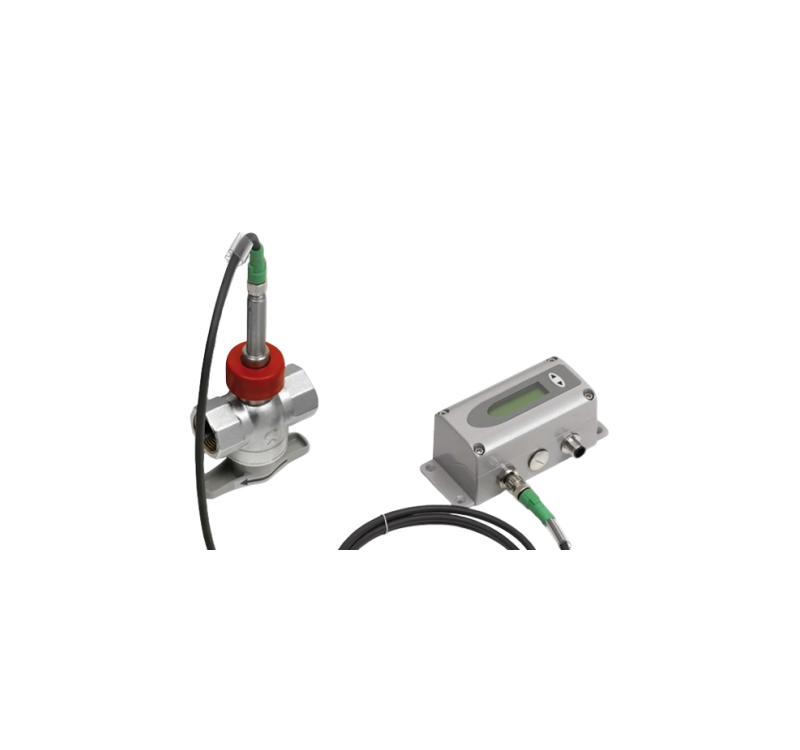

EE771 Thermal Flow Meter
The EE771 flow meter from E+E Elektronik is a thermal mass flow meter engineered for precise measurement of compressed air and non-corrosive gases in industrial applications. It is specifically designed for use in pipelines with diameters ranging from DN15 to DN50 and features a modular design that ensures quick and simple installation without the need for additional tools.
Specifications
| Measurement Principle | Thermal Mass Flow. |
| Flow Range (DN15–DN50) | 0.5 – 200 Nm³/h (varies with pipe size). |
| Accuracy | ±(1.5% of measured value + 0.3% of full scale). |
| Repeatability | ±0.5% of measured value. |
| Response Time (τ90) | 1 second. |
| Operating Temperature | -20 to +70 °C (-4 to 158 °F) |
| Operating Pressure | Standard 0–16 bar; Optional: up to 40 bar. |
| Outputs | 2 × 4–20 mA analog, pulse, RS485 (Modbus RTU). |
| Supply Voltage | 18–30 V DC |
| Power Consumption | Typical 100 mA |
| Electrical Connection | M12 connector, 5-pin or 8-pin. |
| Protection Class | IP65 / NEMA 4 |
| Wetted Material | Stainless Steel (AISI 316L), sealing FKM (option: EPDM). |
| Pipe Connection | ISO 228 G-thread |
Main Features
- Thermal Mass Flow Measurement Principle for direct measurement of mass flow without the need for pressure or temperature compensation.
- Robust stainless steel enclosure with IP65 / NEMA 4 protection for harsh industrial environments.
- Modular mechanical design allowing easy installation and removal under pressure via isolation sections.
- Wide operating pressure range up to 16 bar (232 psi); optional up to 40 bar (580 psi).
- High accuracy of up to ±1.5% of reading ±0.3% of full scale.
- Multi-gas capability, configurable for compressed air, nitrogen (N₂), oxygen (O₂), CO₂, argon (Ar).
- Multiple output options, including analog, pulse, and Modbus RTU (RS485).
- Flow Measurement: Provides mass flow readings in Nm³/h, Nm³/min, kg/h, or kg/min.
- Data Logging: Continuous monitoring and data output via Modbus or analog interfaces.
- Media Configuration: Supports different gases selectable via software.
- Quick Maintenance: Can be removed for maintenance or calibration without process interruption (with shut-off valve options).
- Pressure and Temperature Compensation: Integrated for improved accuracy.
Industrial Applications
- Compressed Air Systems: Monitoring and optimization of compressed air consumption.
- Leak Detection: Identifying and quantifying air or gas leaks in pneumatic systems.
- Process Control: Accurate gas flow monitoring in industrial automation systems.
- Gas Distribution Systems: Measuring and regulating the supply of process gases.
- OEM Equipment Integration: Customizable outputs make it suitable for integration into complex machinery.
