EE23 Humidity and Temperature Sensor for Industrial Applications
$999.00
Available through Instromart, the EE23 offers a combination of rugged design, customizable setup, and consistent measurement accuracy—ideal for professionals needing dependable performance in varied industrial settings.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

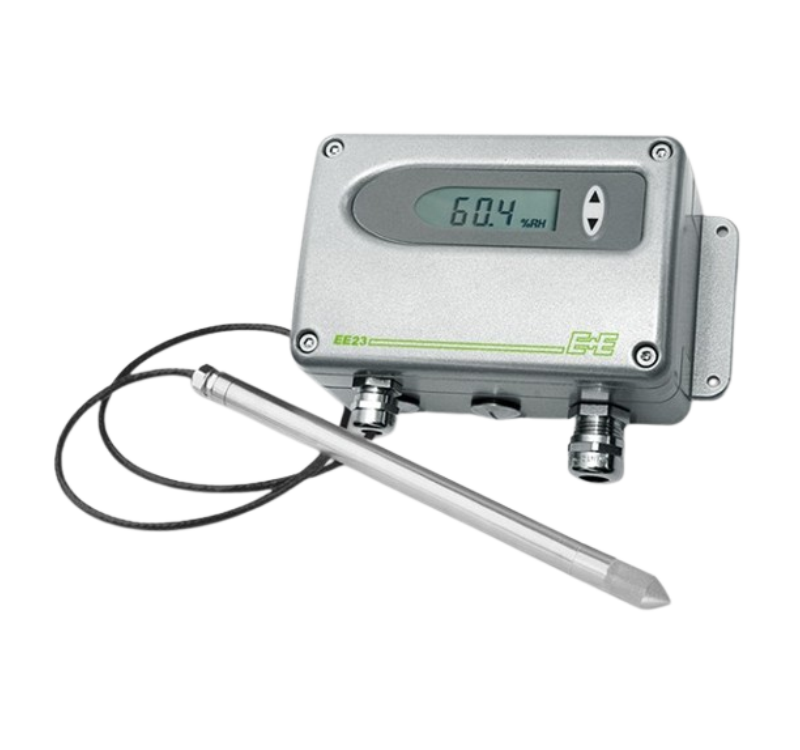

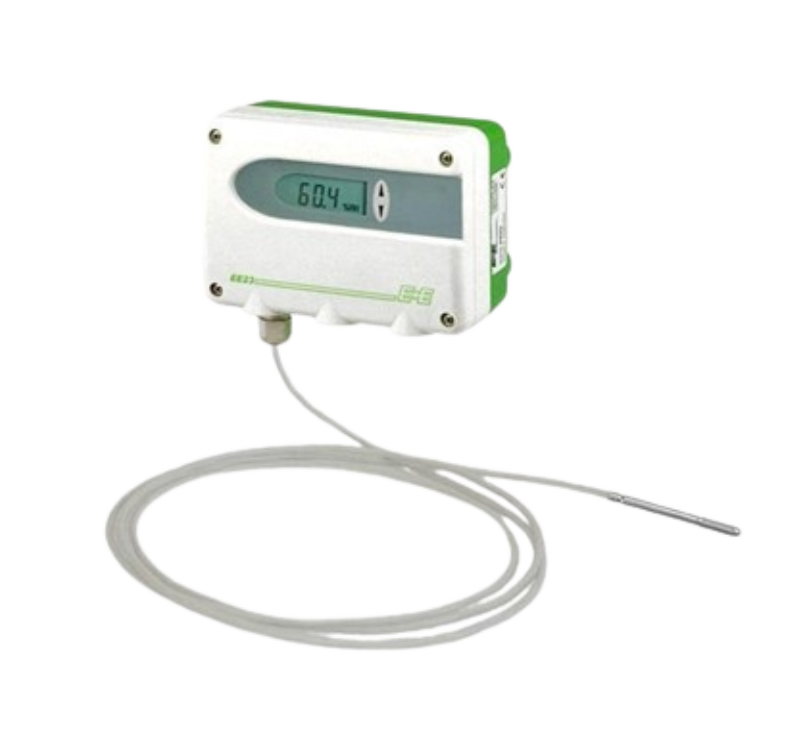

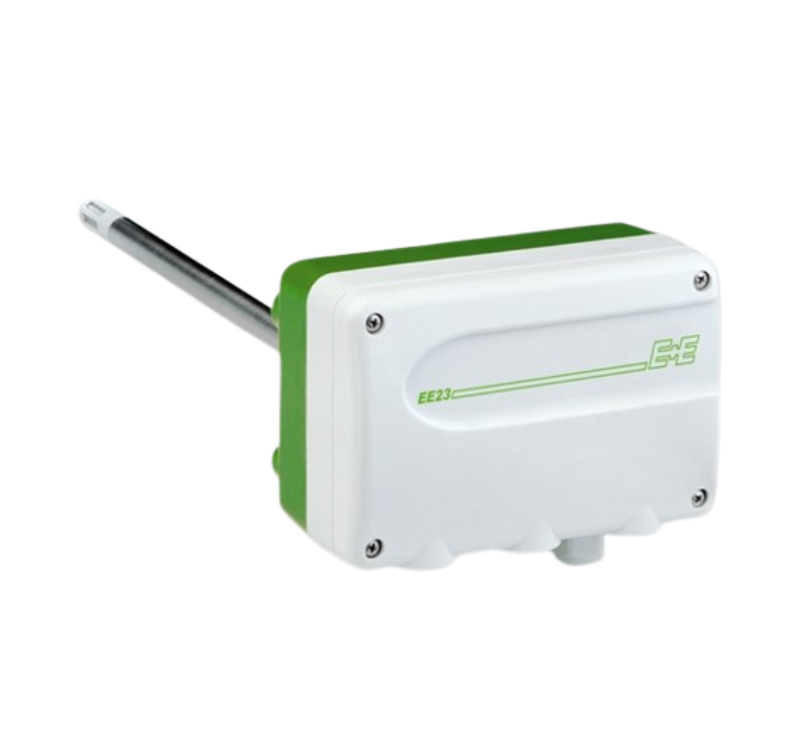

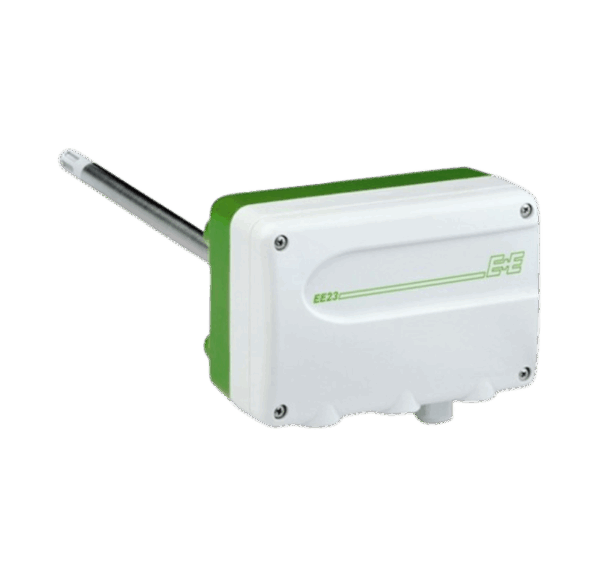

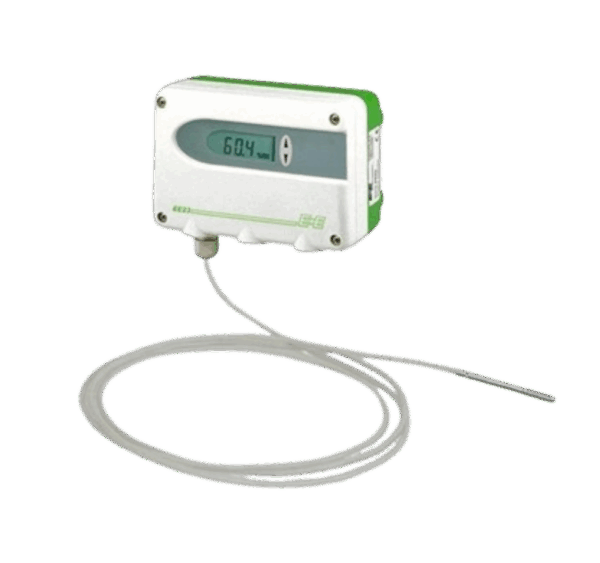

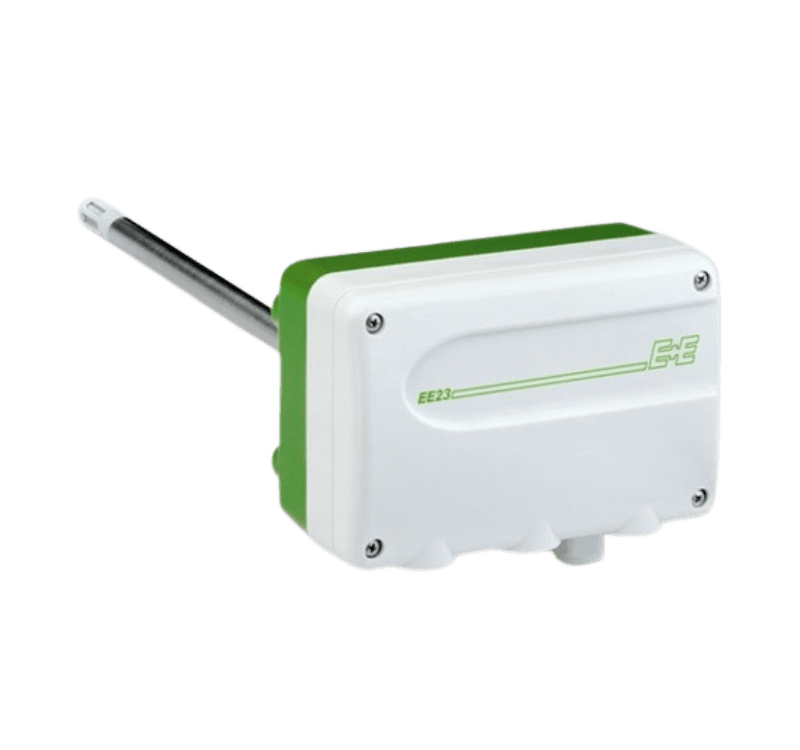

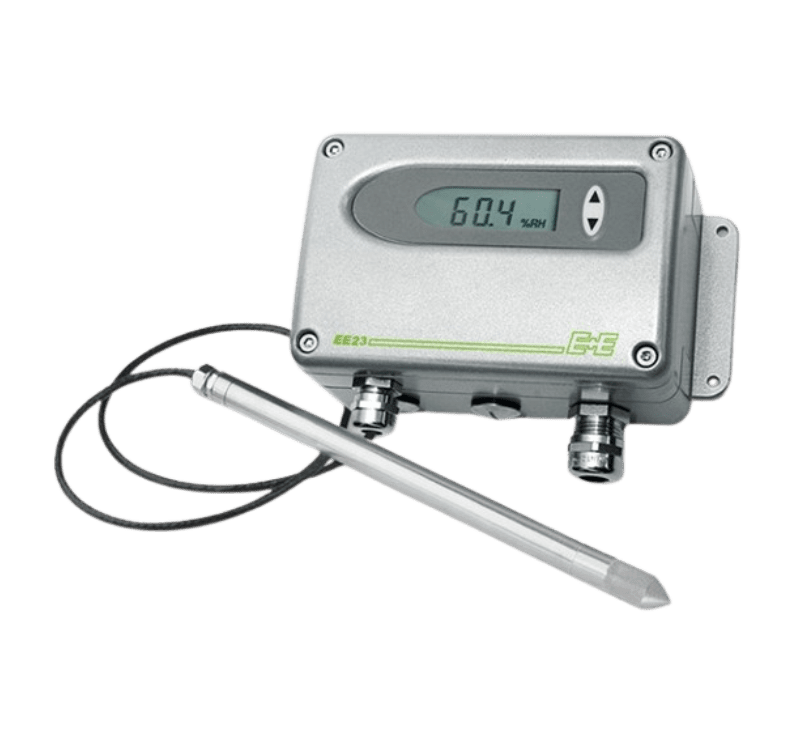

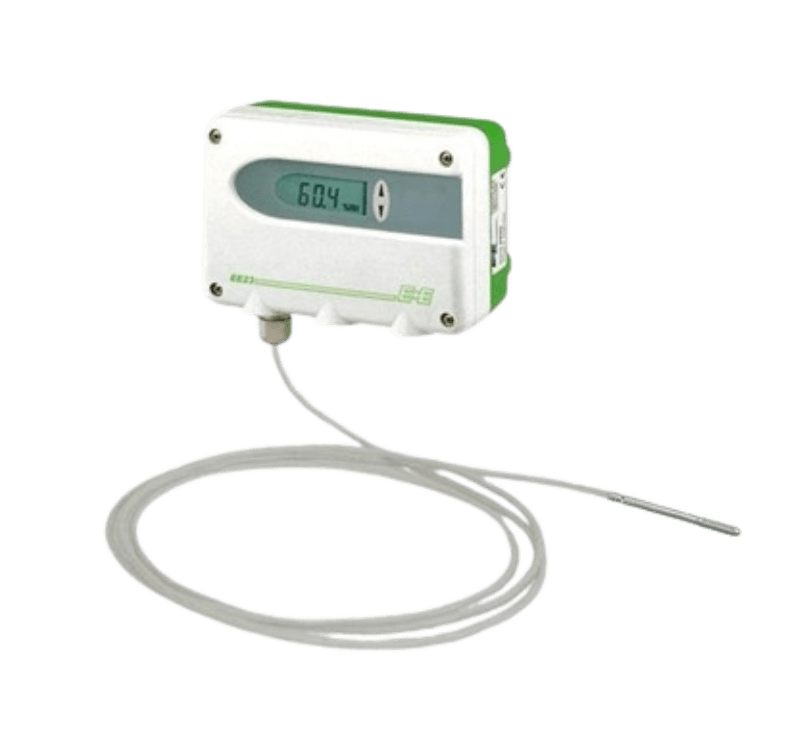

EE23 Industrial Humidity and Temperature Transmitter
The EE23 is a field-proven transmitter designed to measure both temperature and humidity with precision and consistency. Distributed by Instromart, this model has become a reliable option for engineers and technicians working in HVAC, pharmaceutical, cleanroom, and industrial settings. Its robust construction, interchangeable configurations, and long-term performance make it suitable for environments requiring accurate, uninterrupted monitoring.
Specifications
| Measured Parameters | Temperature, humidity, optionally calculated values. |
| Humidity Accuracy | ±2.0% RH (within the range of 10–90% RH at 20°C). |
| Humidity Operating Range | 0 to 100% RH. |
| Temperature Range | -40 to +60 °C (device); up to 180 °C with probe. |
| Analog Output Types | Dual output channels configurable for 0–10 V or 4–20 mA. |
| Power Supply | Works with 10–35 V DC or 24 V AC. |
| Sensor Module | Pluggable, pre-calibrated, user-replaceable. |
| Mounting Options | Available in wall-mount, duct-mount, or probe cable (up to 10 m) configurations. |
| Optional Outputs | Dew point, frost point, enthalpy, wet-bulb temperature. |
| Filter Options | Mesh, PTFE, sintered metal (varies by application). |
| Casing Protection | IP65 – shields internal components from dust and splashes. |
| Field Calibration Access | Manual trimmers are accessible for in-situ tuning. |
Main Features
- Simultaneous humidity and temperature measurement with dependable precision.
- Modular design supports installation on walls, inside ducts, or at remote points via probe extension.
- Each analog output can be set to voltage (0–10 V) or current (4–20 mA) independently.
- Optional values such as dew point, wet-bulb, or enthalpy can be included based on your selected configuration at the time of ordering.
- Sensor unit is replaceable without the need for recalibration tools or software.
- Weather-resistant casing with IP65 protection allows for installation in dusty or humid locations.
- Protective filter caps are available in various materials to suit different operating conditions.
- User-adjustable signal scaling per channel.
- Compatible with both AC and DC power sources, ensuring versatile integration into a variety of systems.
- Holds calibration well over time in continuous use environments.
- Optional probe model is capable of reading in high-temperature zones (up to 180 °C).
- Plug-and-use sensor modules simplify maintenance tasks.
- Internal calibration dials allow for manual fine-tuning without disassembly.
Industrial Applications
- Building HVAC systems where indoor air quality is monitored and controlled.
- Controlled environments such as cleanrooms in the pharmaceutical sector.
- Food production lines where moisture and temperature must be stabilized.
- Automated factories requiring real-time climate readings fed to controllers.
- Test facilities using stable reference readings for product evaluation.
