EE040
$999.00
EE040 distributed by Instromart, this sensor combines durability, precision, and an analog output format, making it perfect for integration in diverse embedded systems.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

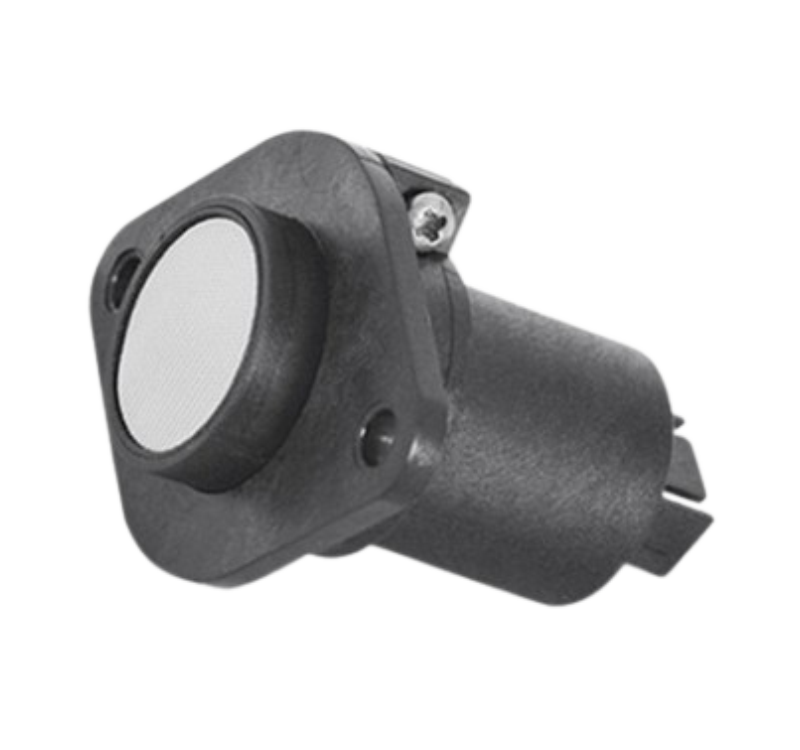

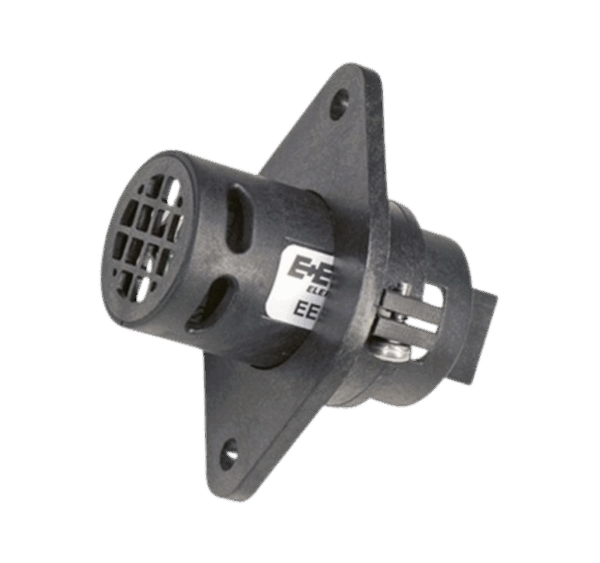

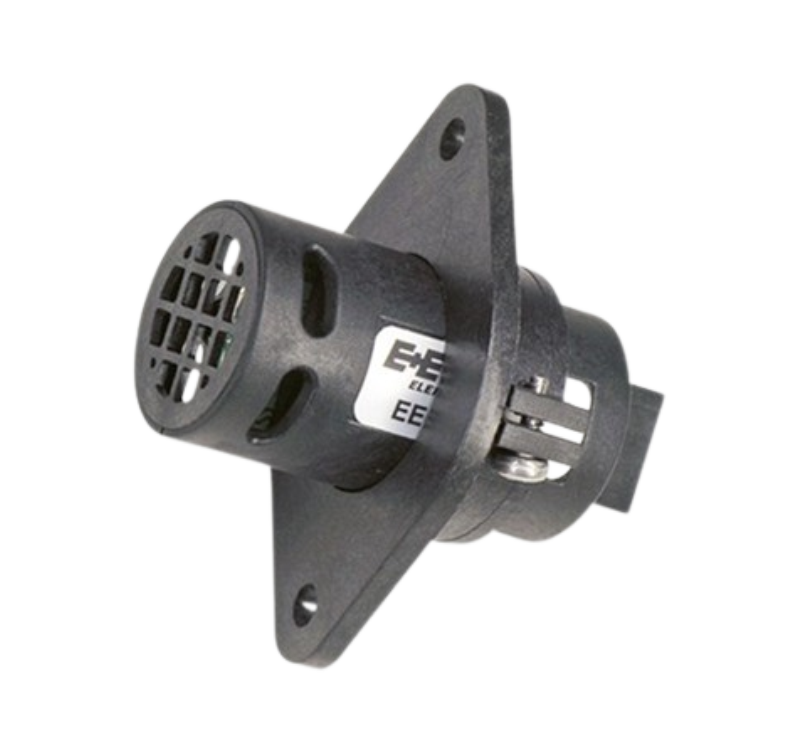

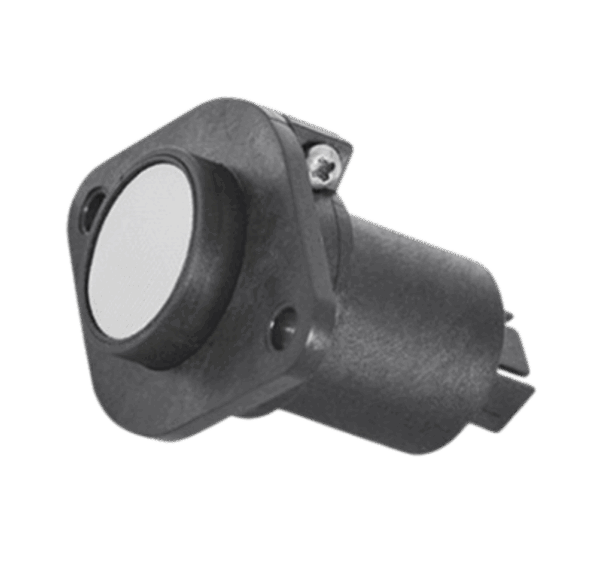

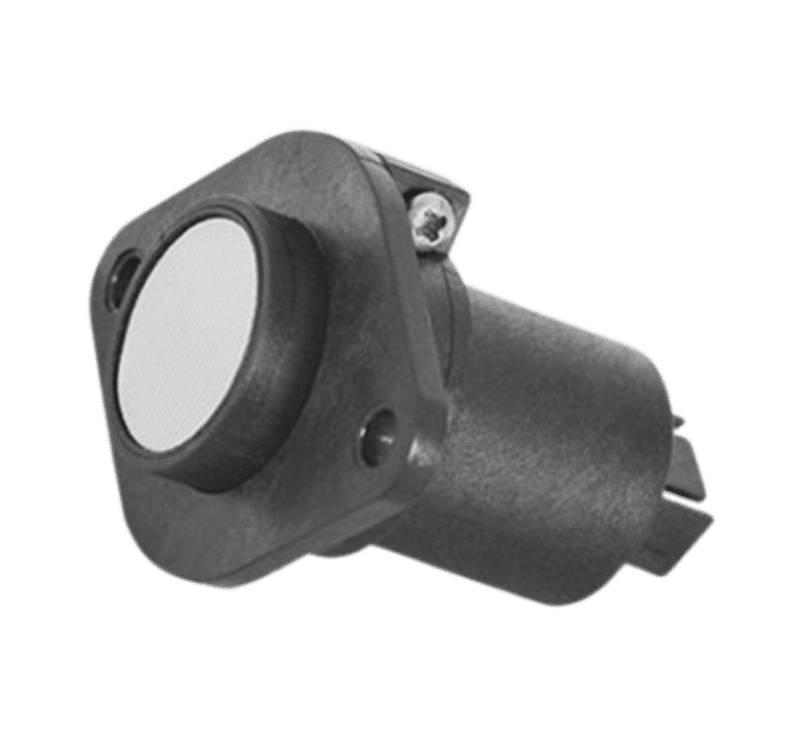

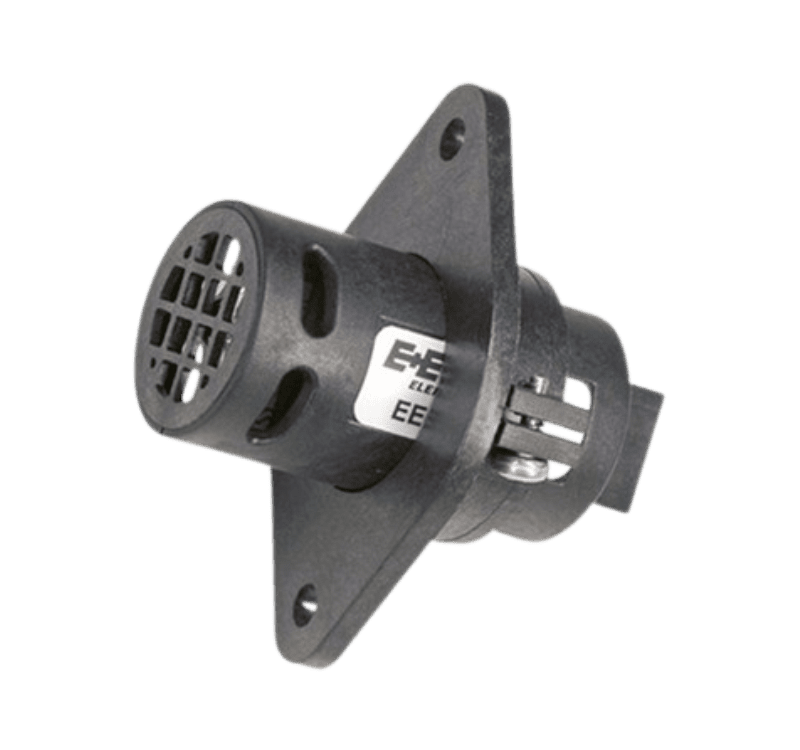

EE040 – Miniature Environmental Sensor for Accurate Humidity and Temperature Measurement.
The EE040 is a small-footprint sensor designed to deliver accurate relative humidity and temperature data, specifically engineered for OEM applications. Distributed by Instromart, this sensor combines durability, precision, and an analog output format, making it perfect for integration in diverse embedded systems.
Specifications
| Humidity Range | 0 to 100 % RH (non-condensing). |
| Temperature Range | -40 to +85 °C |
| Humidity Accuracy | ±3 % RH (valid between 10 and 90 % RH). |
| Temperature Accuracy | ±0.3 °C at 20 °C. |
| Output Signal | Analog voltage (standard 0–2.5 V). |
| Power Supply | 5 V DC. |
| Sensor Protection | Special anti-contamination coating. |
| Available Filters | PTFE membrane, stainless steel mesh, sintered stainless steel. |
| Response Time (Humidity) | Approximately 15 seconds (t63). |
| Probe Type | OEM compact plug-in sensor. |
| Connector | Mating plug with cable. |
| Calibration | Factory-calibrated, ready for immediate use. |
Main Features
- Measures humidity and temperature concurrently, all within a small form factor ideal for confined spaces.
- Provides an analog voltage output standardized at 0 to 2.5 volts for straightforward compatibility with control electronics
- Operates across an extended temperature spectrum from -40 °C to +85 °C, suitable for demanding conditions.
- Measures full-range humidity from dry to saturated air (0–100 % RH) in non-condensing atmospheres.
- Utilizes a specially coated sensor element that resists contaminants like dust, moisture, and chemicals.
- Offers a selection of protective filter caps to enhance sensor longevity in harsh industrial or HVAC environments.
- Factory calibration ensures high precision and eliminates the need for recalibration after installation.
- Maintains humidity measurement accuracy within ±3 % RH in the mid-range (10–90 % RH) and temperature accuracy of ±0.3 °C at room temperature.
- Designed for operation on a low 5 V DC power supply, compatible with typical OEM hardware.
- Responds quickly to changes in humidity, reaching 63% of the variation in approximately 15 seconds.
- Engineered for seamless embedding into HVAC systems, data loggers, and other environmental monitoring devices.
- Enhanced sensor life through protective E+E proprietary coating, guarding against environmental wear.
- Linear analog output simplifies integration into existing signal processing chains.
Industrial Applications
- Integration into industrial automation and smart appliances.
- Environmental data acquisition and portable instruments.
- Ventilation control and air quality monitoring systems.
- Energy-efficient building management solutions requiring precise humidity and temperature feedback.
