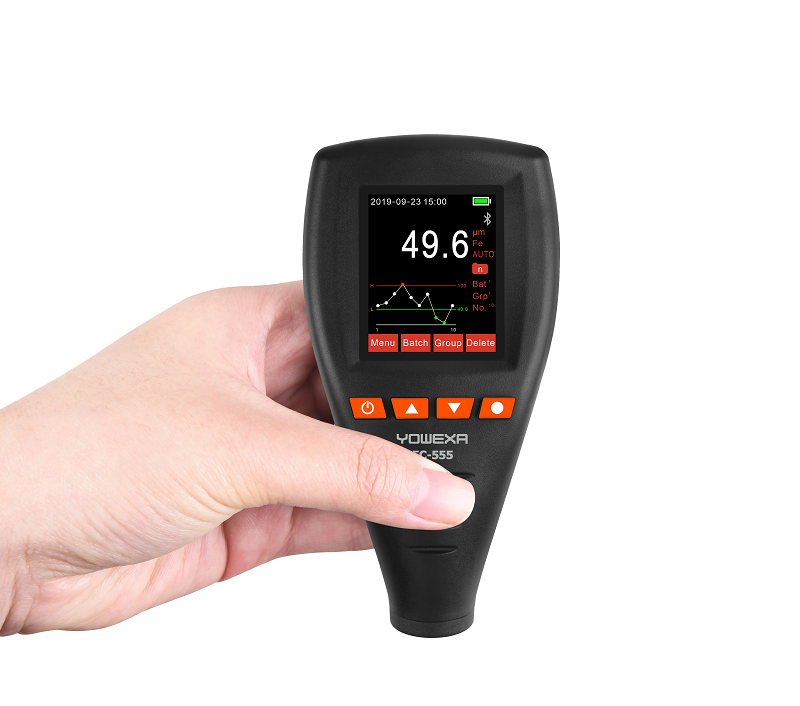

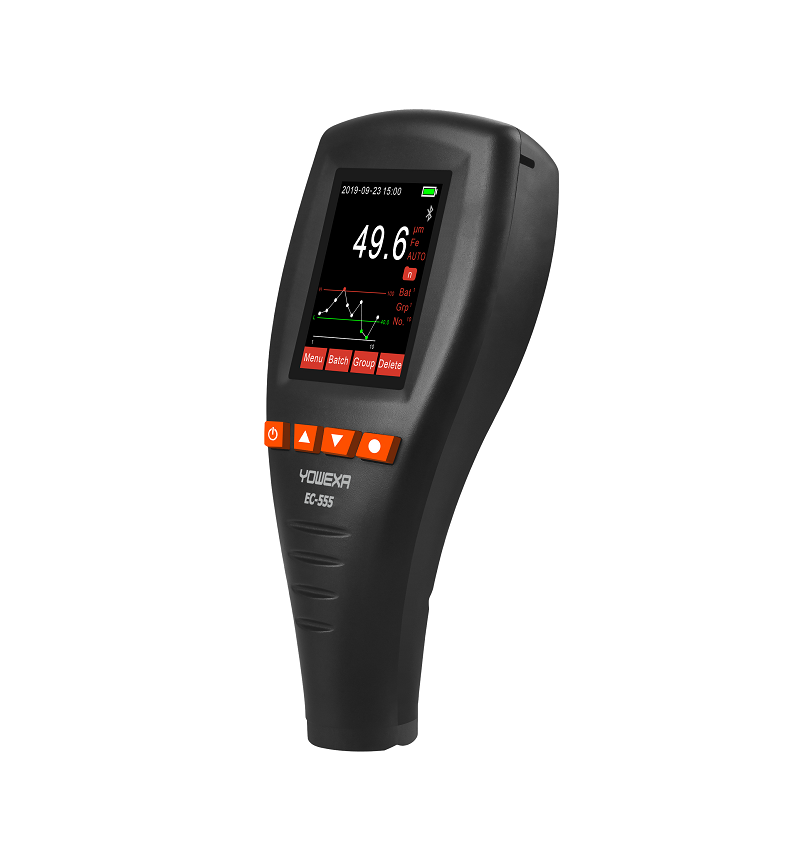

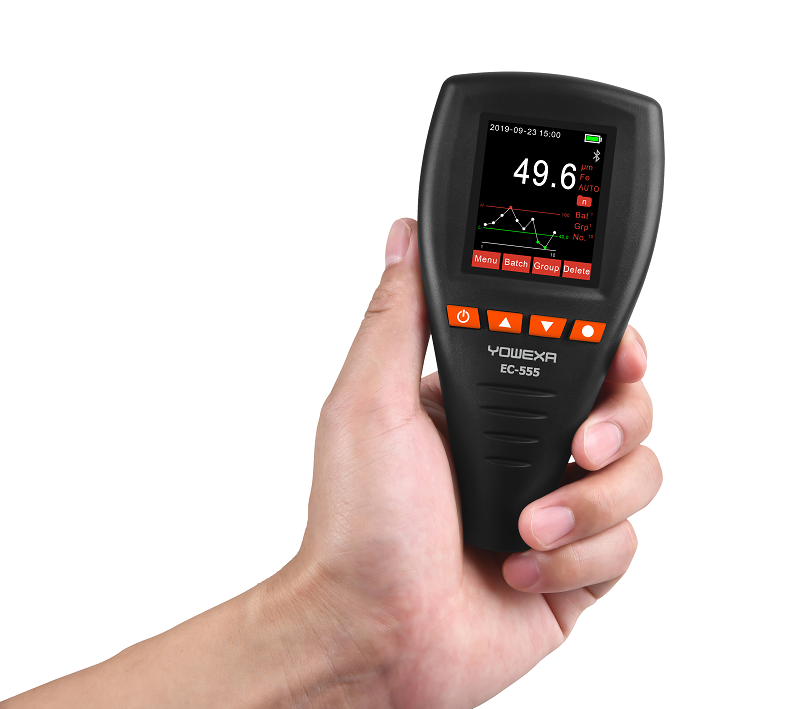

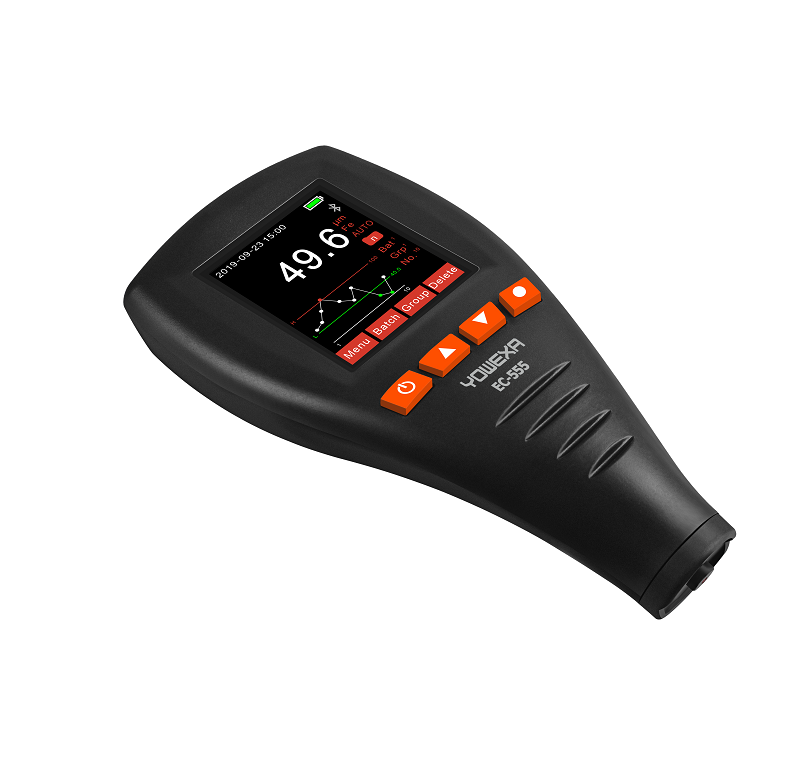

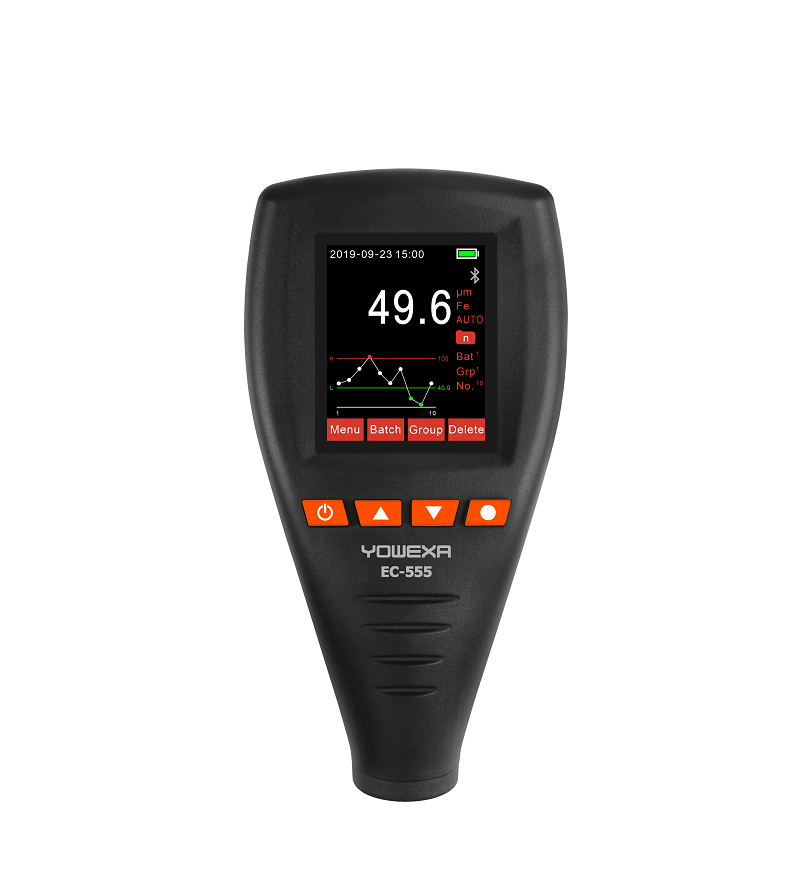

EC-555 Coating Measurement Sensor
$700.00
EC-555 coating thickness sensor device identifies the substrate types and switches the mode to simplify the measurement process.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.
Simplifies Coating Thickness Measurement: EC-555
The EC-555 series uses both eddy current and magnetic induction principles. The device identifies the substrate types and switches the mode to simplify the measurement process. You can send the readings to your laptop using a USB cable. Sharing the readings to your mobile via Bluetooth is also possible. Look at EC 500A
Specifications
|
Power supply
|
3pcs 1.5V AAA alkaline batteries
|
|
Probe type
|
Internal probe
|
|
Measuring principle
|
Fe: Magnetic induction; NFe: Eddy currents
|
|
Measuring range
|
0~2000μm
|
|
Accuracy
|
±(3%+1μm)
|
|
Resolution
|
0.1μm(0~100μm); 1μm(>100μm)
|
|
Weight / Case Material
|
About 90gm(no battery) / ABS
|
|
Size
|
133mm*68mm*30 mm
|
|
Readings memory
|
10x13x10 measurement data
|
|
Minimum measuring area
|
Diameter 15mm
|
|
Minimum thickness of substrate
|
Fe: 0.30mm/NFe: 0.05mm
|
|
Maximum measuring rate
|
2 readings / s
|
|
Standards/Certificates
|
CE, ROHS, ISO 2178, 2360, GB./T 4956-2003, 4957-2003, JJG-818-2005
|
Main Features
- EC-555 comes with the ruby probe.
- The EC-555 series has a 2-inch color screen.
- Its resolution is up to 0.1µm.
- The device’s measurement range is between 0-2000µm.
- It records the coating thickness and can send it to the computer.
- Three batteries, an F/N probe, a USB cable, and five foils accompany this device.
- You can adjust the volume of the sound.
- EC-555 supports zero and multipoint calibration.
- It shuts down automatically when not in use.
- EC-555 can send its readings to the mobile app.
- It can send its reading by Bluetooth connectivity.
- The display supports auto-rotation
- The backlight is adjustable.
- It displays the data as a bar or curve chart.
- It is a portable and durable device.
- EC-555 can measure the thickness of non-conductive coatings on any metallic surface.
- It can measure the coating thickness of nonferromagnetic metal coatings on ferromagnetic metals like iron and nickel.
Industrial Applications
- Automobile Industry: The device can measure the paint thickness on ferrous and non-ferrous substrates.
- Manufacturing: The device measures the coating thickness on various metal parts to ensure their durability and performance.
- Construction: It measures the coatings on different steel structures.
- Ship Building: Ships sustain environments like harsh sunlight and salt water. A layer of anti-rust paint is applied to various ship parts to protect them from corrosion. EC-555 helps to measure the coating thickness to ensure that there will be no premature wear and tear of the components.
