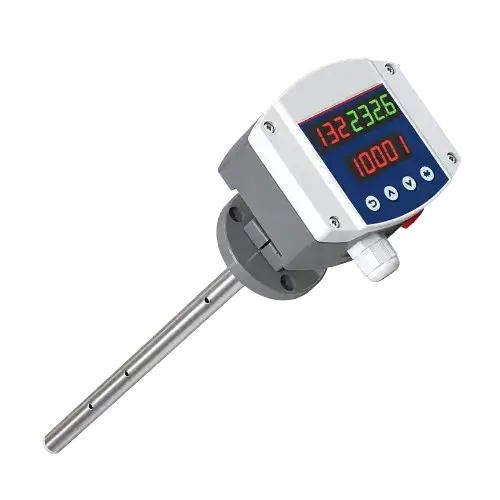

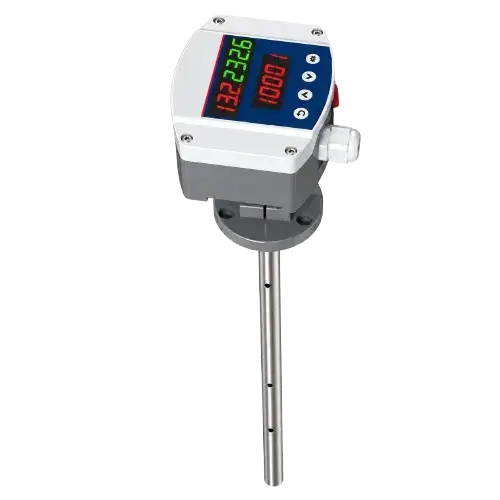

Duct air flow transmitter
AU$510.00
Instromart presents the Duct air flow transmitter–Monitor duct air velocity and calculated airflow with a transmitter featuring RS485 Modbus RTU communication, flange mounting, and an IP65 protection rating. Measures both air velocity and calculated airflow, using the configured duct cross-sectional area to determine volumetric airflow.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.
Duct Air Flow Transmitter
The duct air flow transmitter measures air velocity and calculates volumetric airflow using the configured duct cross-sectional area. Its multi-point probe supports ventilation monitoring, while adjustable settings allow configuration through buttons or RS485 commands.
Technical Specifications:
| Measured Quantity | Air velocity and calculated volumetric airflow |
| Model | NS-D1-0-30m/s-RS485 |
| Measuring media | Air, nitrogen, and oil fumes |
| Air velocity range | 0–30 m/s |
| Accuracy | ±2% FS |
| Resolution | 0.1 m/s |
| Air pressure range | 0–500 Pa |
| Power Supply | 10–30 V DC |
| Operating temperature | −40°C to +80°C |
| Operating humidity | ≤95% RH |
| Protection rating | IP65 |
| Long-term stability | ≤0.1 m/s/year |
| Communication | RS485, Modbus RTU |
| Configuration | Buttons or RS485 commands |
| Duct size options | DN315, DN400, DN440, DN560, DN660 |
Main Features
Features:
- Multi-point air velocity measurement.
- Airflow calculation using configured duct area.
- Adjustable flange with silicone sealing ring.
- Circuit design for interference resistance.
- Configurable measurement density.
- Side or bottom duct installation
Industrial Applications
Industrial Applications:
• HVAC duct airflow monitoring
• Cleanroom airflow validation
• Ventilation efficiency measurement
• Building automation and air balancing
• Energy-efficient ventilation control systems
