Omniport 30
AU$6,020.00
The Omniport 30 is a high-precision handheld instrument designed for real-time environmental monitoring.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

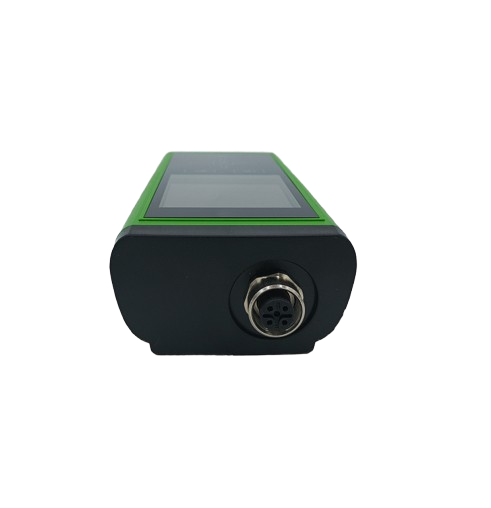

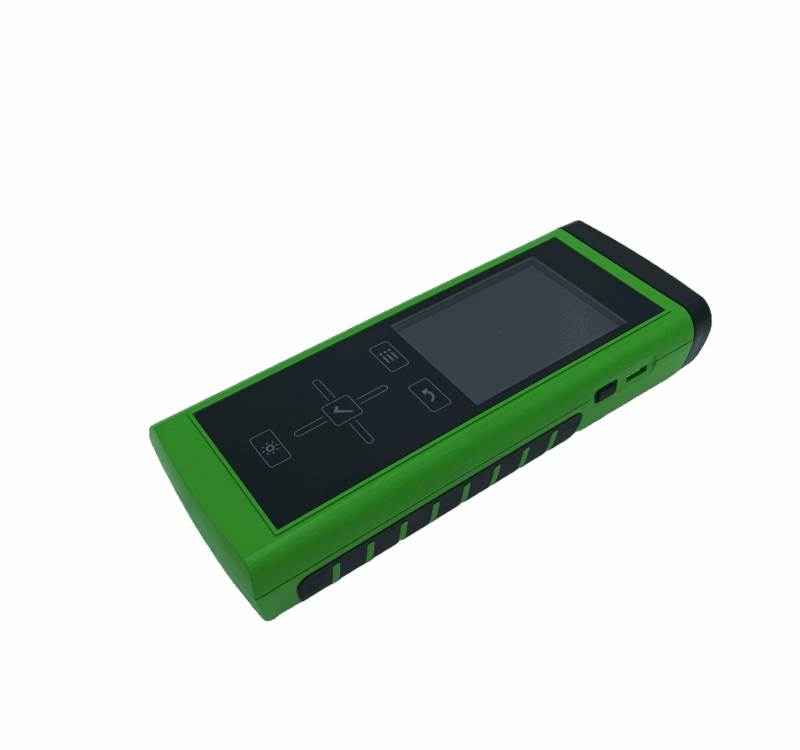

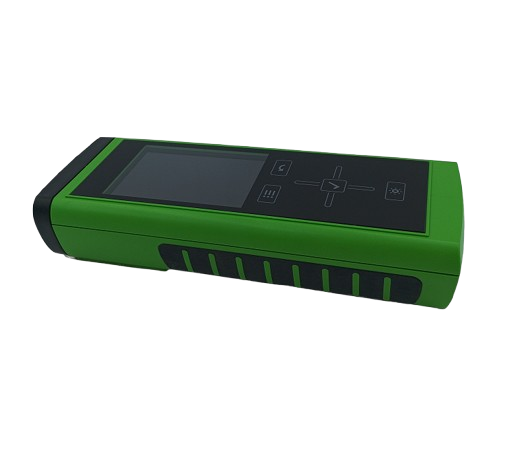

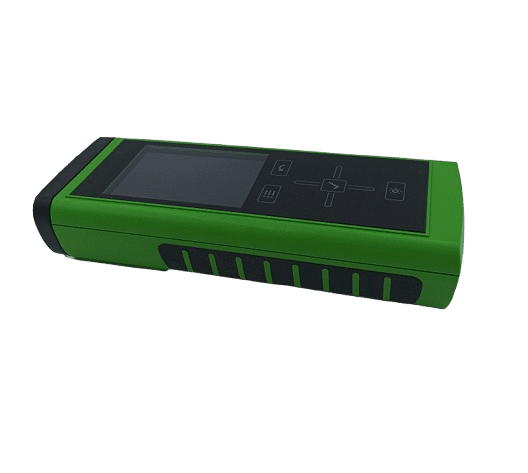

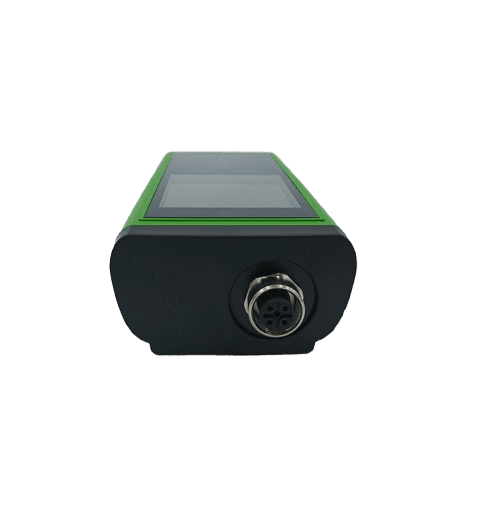

Omniport 30 Professional Multifunctional Measuring Device
The Omniport 30 is a high-precision handheld instrument designed for real-time environmental monitoring. It supports multiple interchangeable probes for measuring humidity, temperature, CO₂, air velocity, barometric pressure, and more. The Omniport 30 delivers precise, real-time environmental data with versatile sensor compatibility, extensive data logging, and seamless software integration.
Specifications
| Measured Parameters | Humidity, temperature, dew point, CO₂, air velocity, and pressure. |
| Display | 2.13” TFT capacitive touchscreen, backlit. |
| Memory Capacity | Up to 2 million readings. |
| Measurement Units | °C/°F, %RH, g/m³, hPa, m/s, ppm, etc. |
| Sensor Compatibility | Interchangeable plug-in probes. |
| Logging Modes | Continuous & single-point recording. |
| Software | SmartGraph3 – Data analysis & reporting. |
| Data Transfer | USB connectivity. |
| Power Supply | 4x AA batteries or USB (5V DC). |
| Operating Temperature | 0 to 50°C (32 to 122°F). |
| Storage Temperature | -20 to 60°C (-4 to 140°F). |
| Protection Class | IP40 (Indoor industrial use). |
| Housing Material | High-durability ABS plastic. |
| Dimensions | 170 x 62 x 34 mm. |
| Weight | Approx. 205g (0.45 lbs). |
Main Features
- 2.13” TFT Touchscreen – High-resolution, backlit display.
- Multi-Parameter Support – Measures 22 environmental variables.
- Pluggable & Built-in Sensors – Barometric pressure sensor + external probes.
- Massive Data Storage – Logs up to 2 million measurement values.
- SmartGraph3 Software – PC connectivity for data analysis & reporting.
- USB Interface – For data transfer & power supply.
- Multiple Power Options – 4x AA batteries or USB power.
- Durable ABS Housing – Lightweight, industrial-grade design.
- Real-Time Monitoring – Displays HOLD, MIN, MAX, and AVG values.
- Fast Data Access – Quick retrieval of stored measurements.
- Multi-Unit Support – Reads values in m/s, hPa, °C/°F, g/m³, ppm, etc.
- Interchangeable Probes – Supports a variety of environmental sensors.
- User Calibration – Ensures long-term measurement accuracy.
- USB Connectivity – Fast data transfer & PC integration.
- Continuous & Single-Point Logging – Versatile data recording options.
- User-Defined Alarms – Customizable thresholds for key parameters.
- Environmental Condition Assessment – Supports industrial & scientific applications.
- Data Export & Reporting – Seamless PC integration via USB.
- Versatile Sensor Support – Expandable with various external probes.
Industrial Applications
- HVAC & Building Monitoring – Climate control & ventilation assessment.
- Manufacturing & Process Control – Environmental condition optimization.
- R&D & Laboratories – Scientific data collection & validation.
- Aerospace & Automotive – Measuring air pressure, temperature, & humidity.
