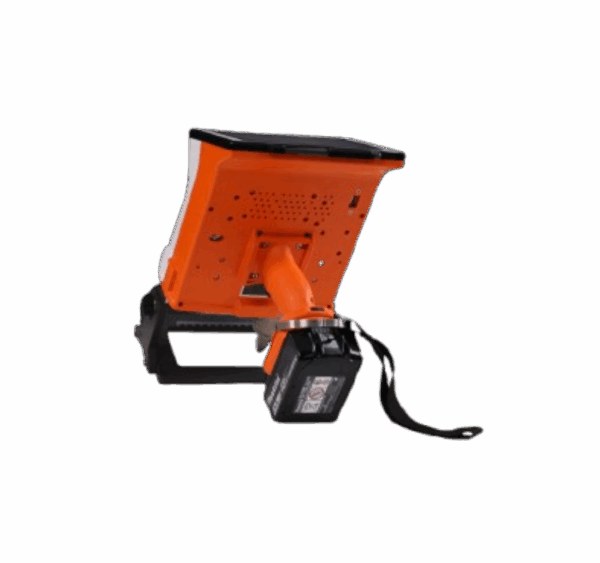

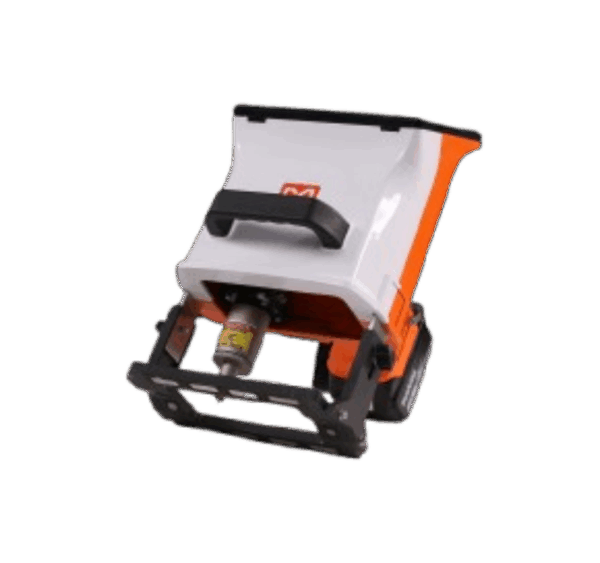

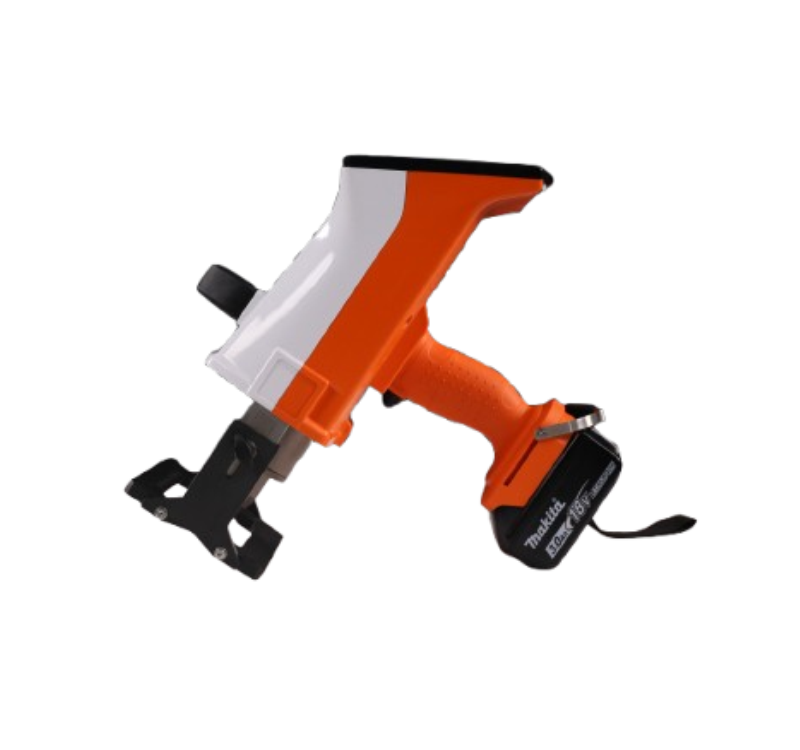

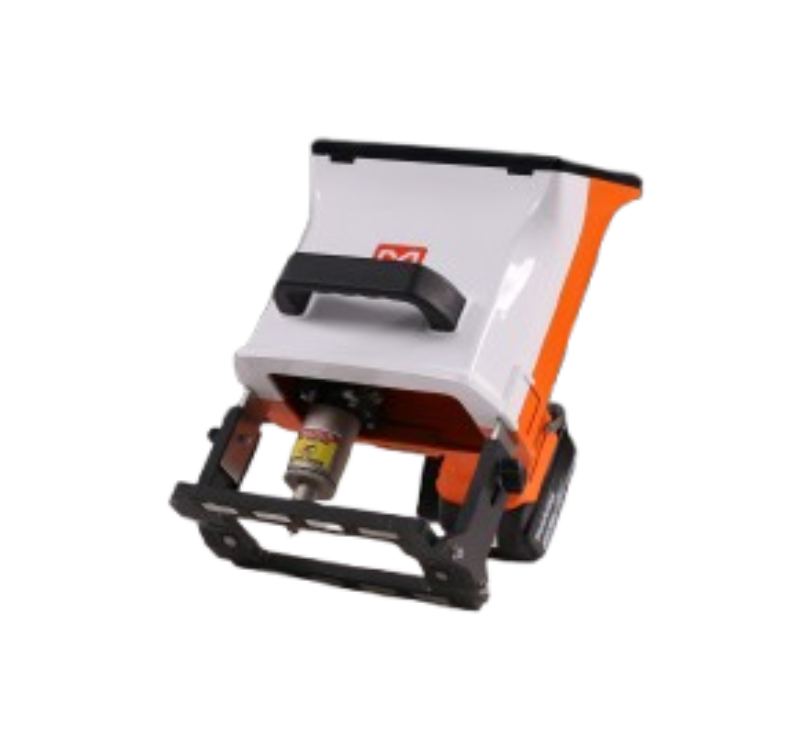

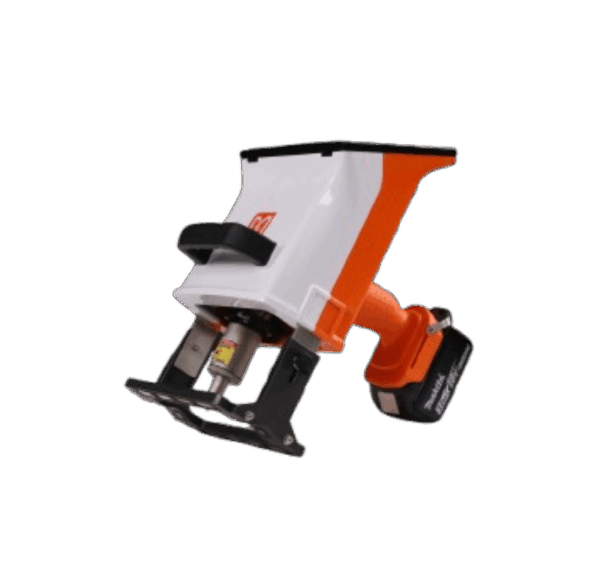

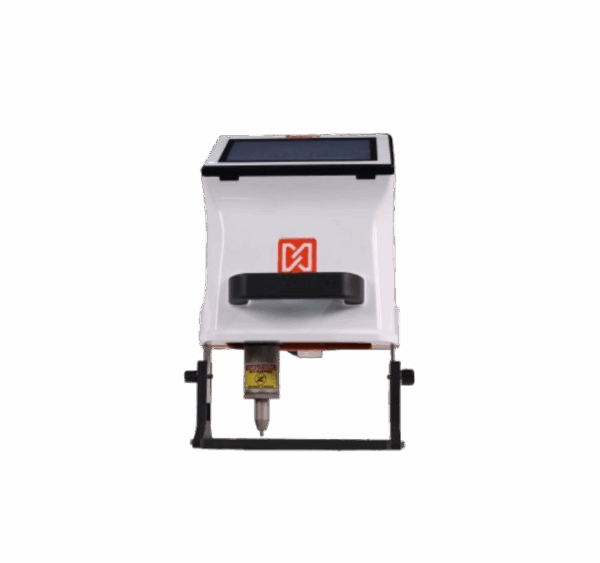

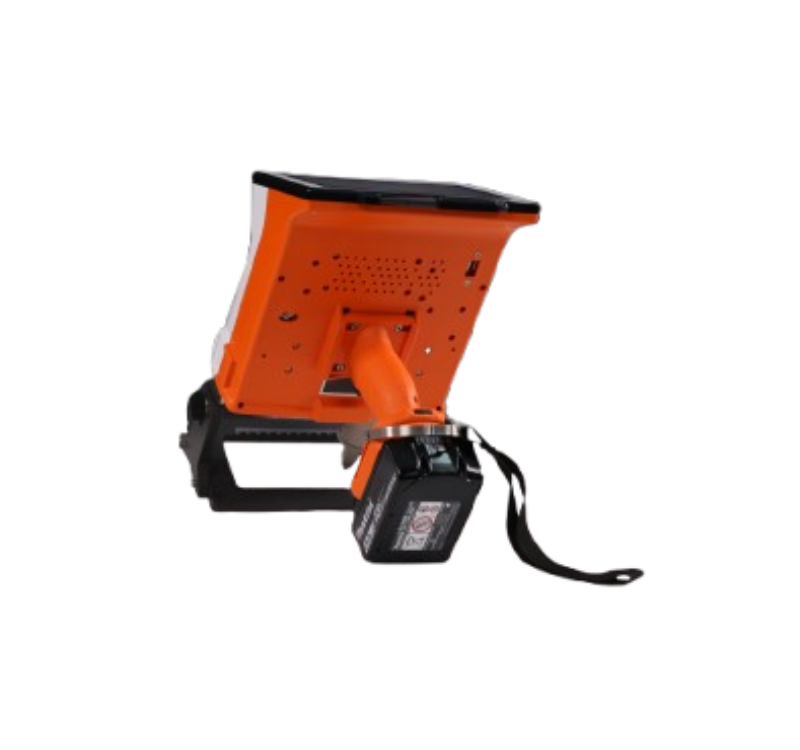

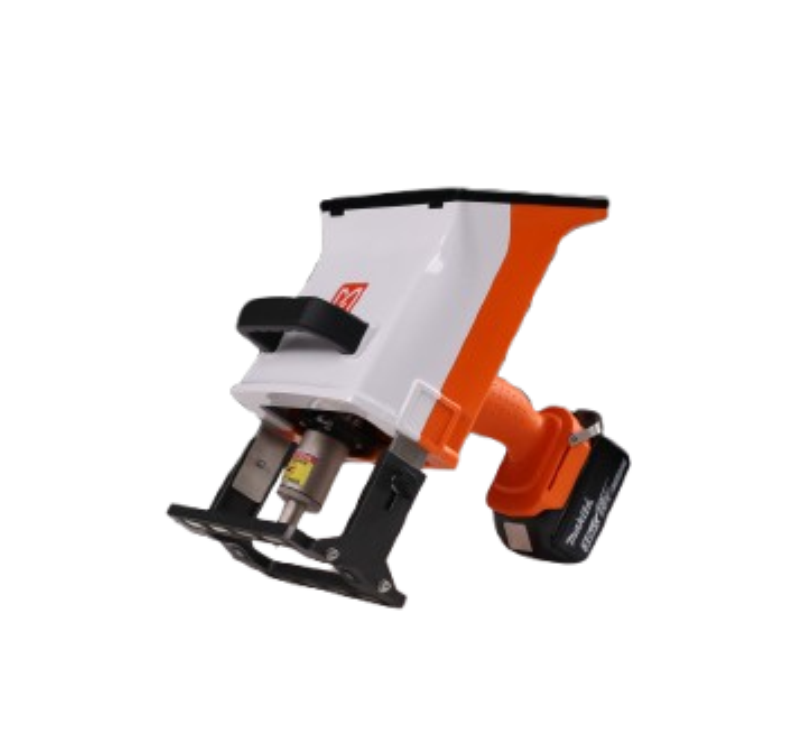

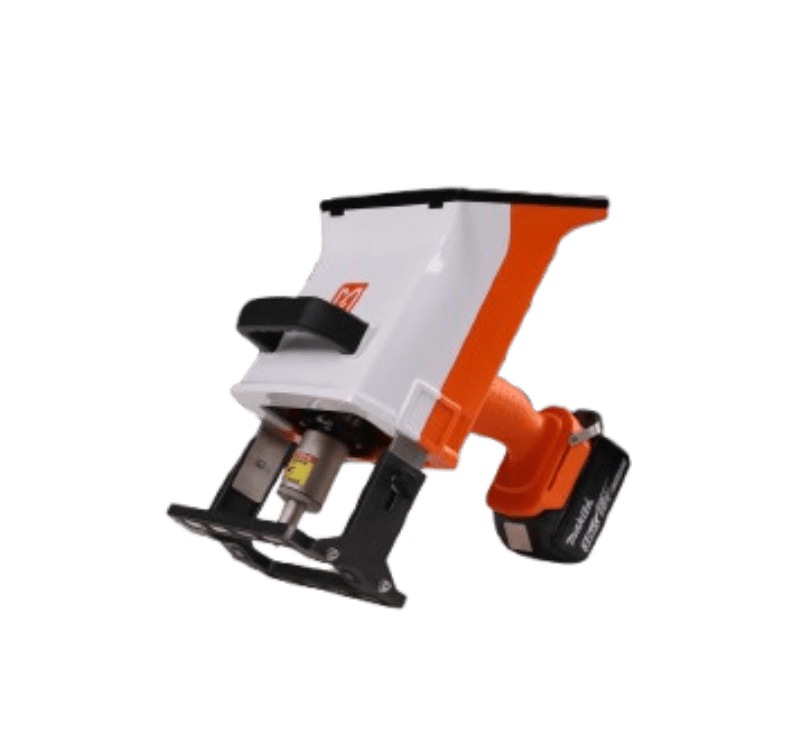

MNSB-TC: Portable Handheld Dot Peen Marking Machine

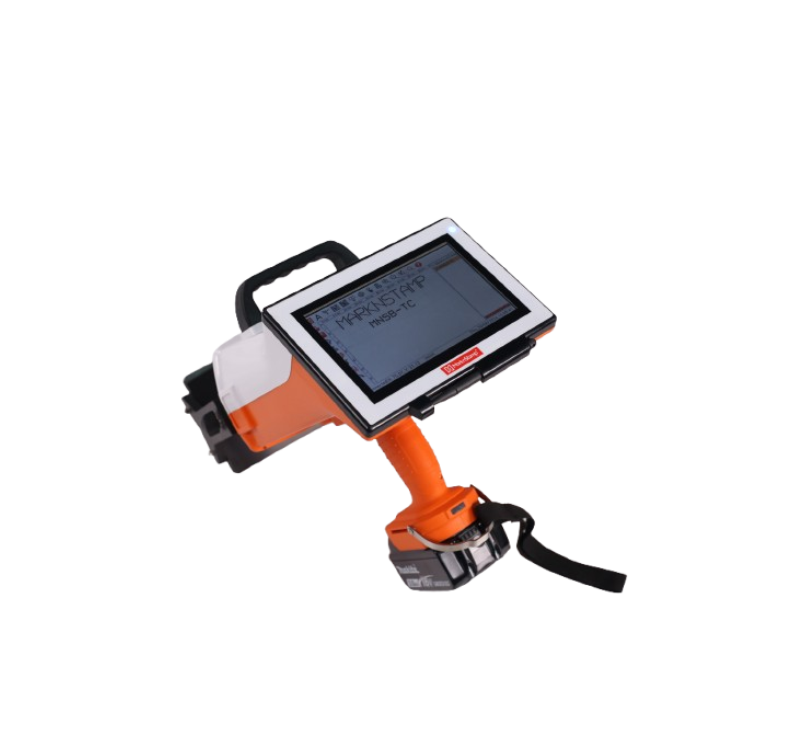

The MNSB-TC is a fully portable, battery-operated handheld dot peen marking machine with a 7” built-in touchscreen, ideal for on-site and industrial marking applications. It delivers durable, high-quality markings on metal, plastic, and other materials—without the need for a PC or external control unit.
Specifications
| Marking Field | 100 mm × 30 mm |
| Display | 7” Resistive Touchscreen |
| Marking Force | 9-Level Adjustable |
| Operating Modes | Designer Mode, Production Mode (password protected) |
| Battery Type | 18V DC Makita Lithium Battery (3Ah standard, up to 9Ah) |
| Backup Time | Approx. 4 hours (with 3Ah battery) |
| Material Compatibility | Metal, Plastic, Coated Surfaces |
| Housing Material | Glass-filled Nylon (Shatterproof) |
| Connectivity | USB 2.0 (keyboard/mouse), Wi-Fi via MNSBLauncher App |
| Supported Formats | Text, Serial Numbers, Logos, QR Codes, Barcodes, Date/Time |
| Onboard Memory | 512 MB (Layout storage & CSV import) |
| Dimensions | Approx. 350 × 200 × 340 mm (L×W×H) |
| Weight | Approx. 4.7 kg |
| Warranty | 1 Year Standard |
Additional information
| Weight | 31 kg |
|---|---|
| Dimensions | 86 × 48 × 52 cm |
Main Features
- 7” Resistive Touchscreen – Fully programmable marking via built-in display.
- Cordless Operation – No external wires or controllers required.
- Battery Powered – Up to 4 hours backup with standard 3Ah Makita battery.
- Adjustable Force Levels – 9-step marking pressure control.
- High Durability – Rugged glass-filled nylon casing.
- Flexible Marking – Text, logos, barcodes, QR/2D codes, serial & batch numbers.
- USB & Wi-Fi – Supports USB keyboard/mouse or app control via MNSBLauncher.
- Built-in Software – Designer & Production modes with password protection.
- Marks on Various Surfaces – Compatible with metals, plastics, and coated surfaces.
- Advanced Programming – Supports variable data, time/date, counters, and shift codes.
- Portable Convenience – Ideal for fieldwork, workshops, or semi-automated setups.
- App & USB Interface – Design and control marking layouts directly or remotely.
- Accurate Marking Control – Selectable force and dot spacing for different materials.
Industrial Applications
• Automotive Parts Marking.
• Aerospace Component Coding.
• Electrical & Instrumentation Panels.
• Tool, Pipe, and Cylinder Identification.
• Fabricated Metal Product Marking.
• Batch & Shift Number Traceability.
• Industrial Asset Tagging.
• Field-Based Equipment Coding.
