MNSB-53
$999.00
Need indestructible markings on steel, titanium, or cast iron? The MNSB-53 uses high-impact dot peen technology to engrave crisp serial numbers, barcodes, and logos. Even in harsh environments.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

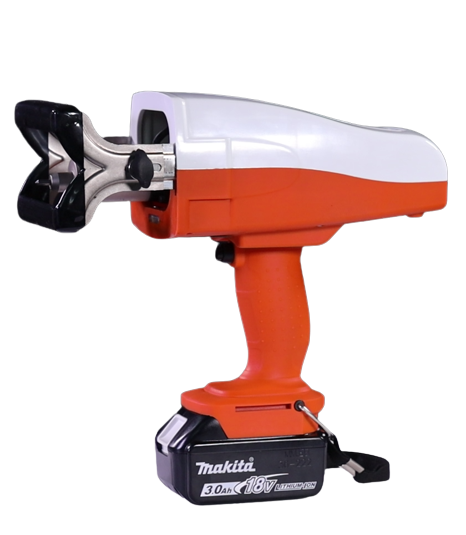

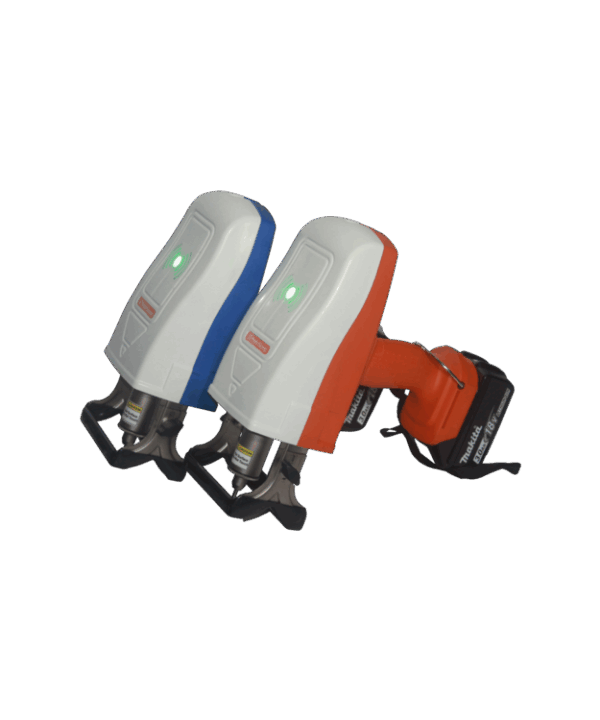

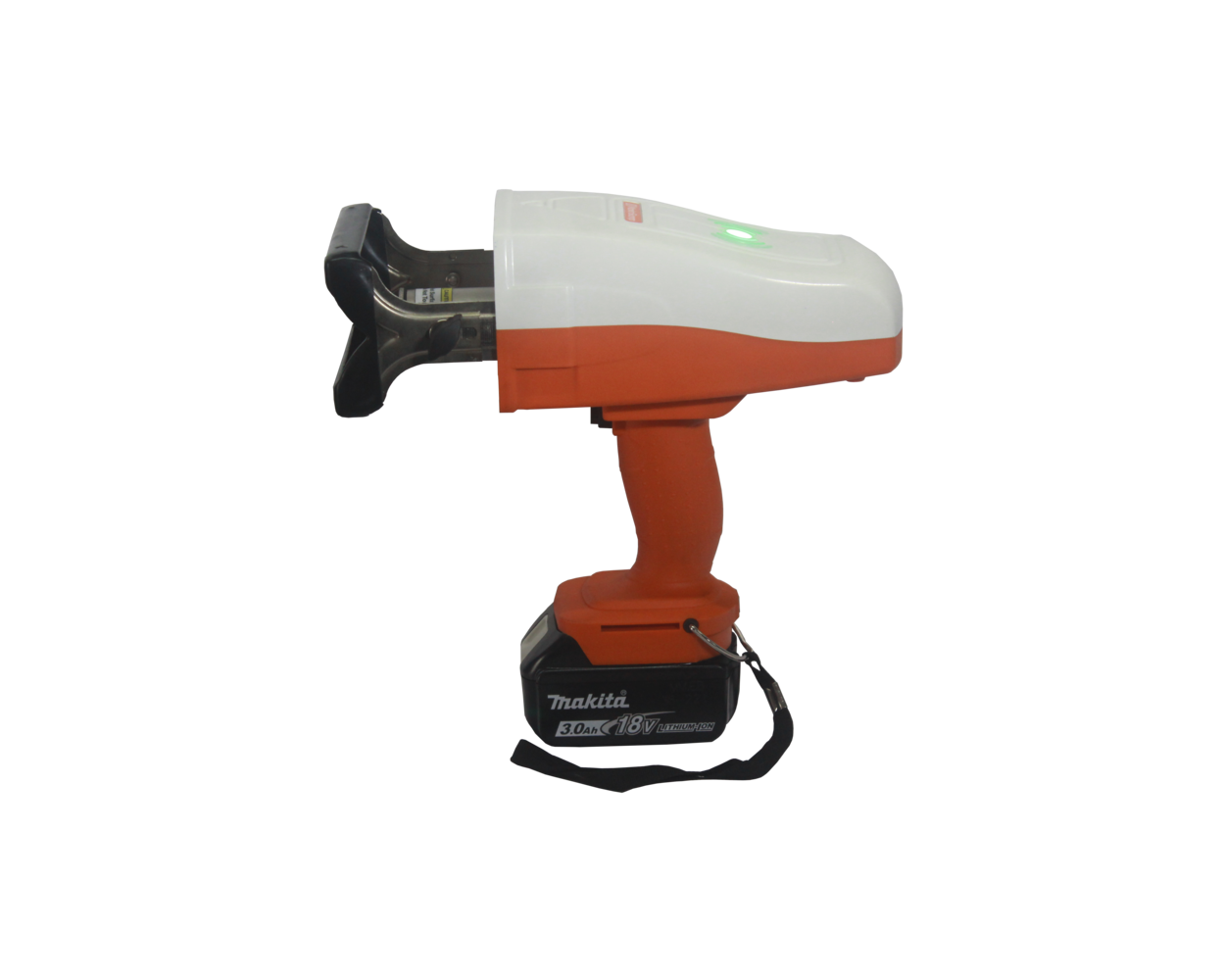

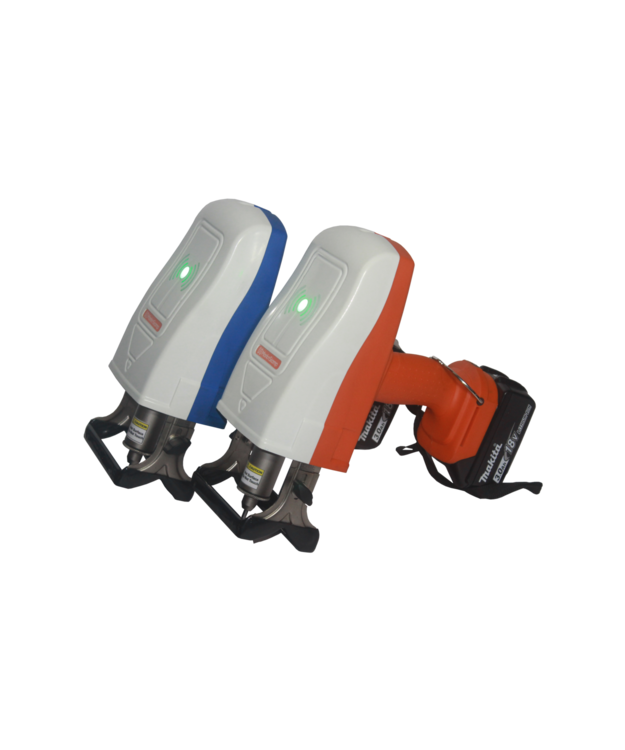

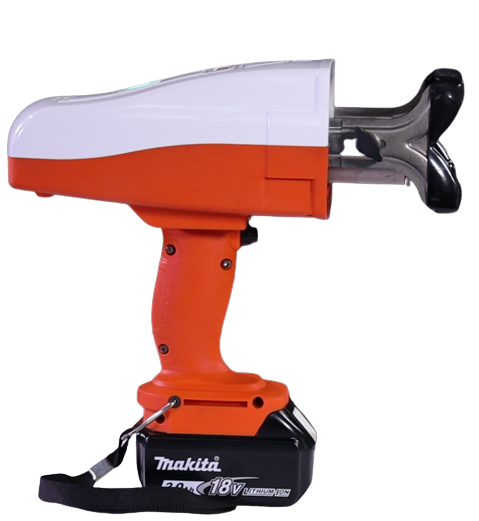

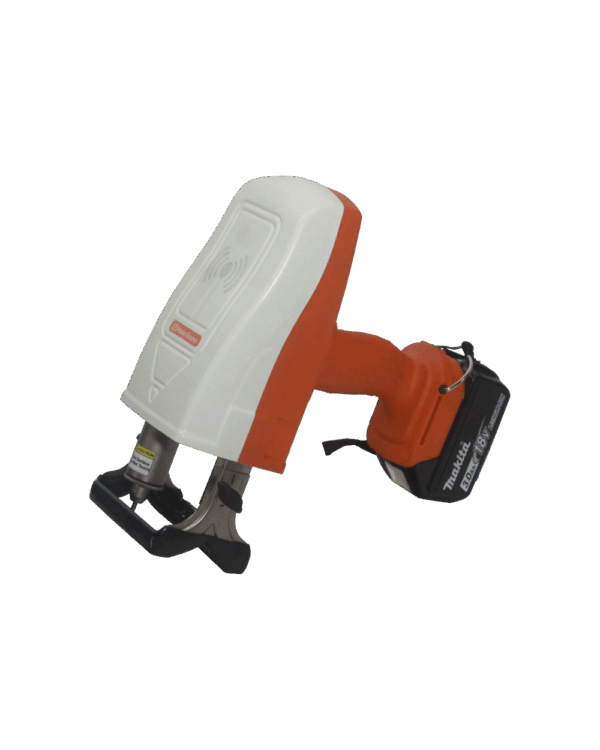

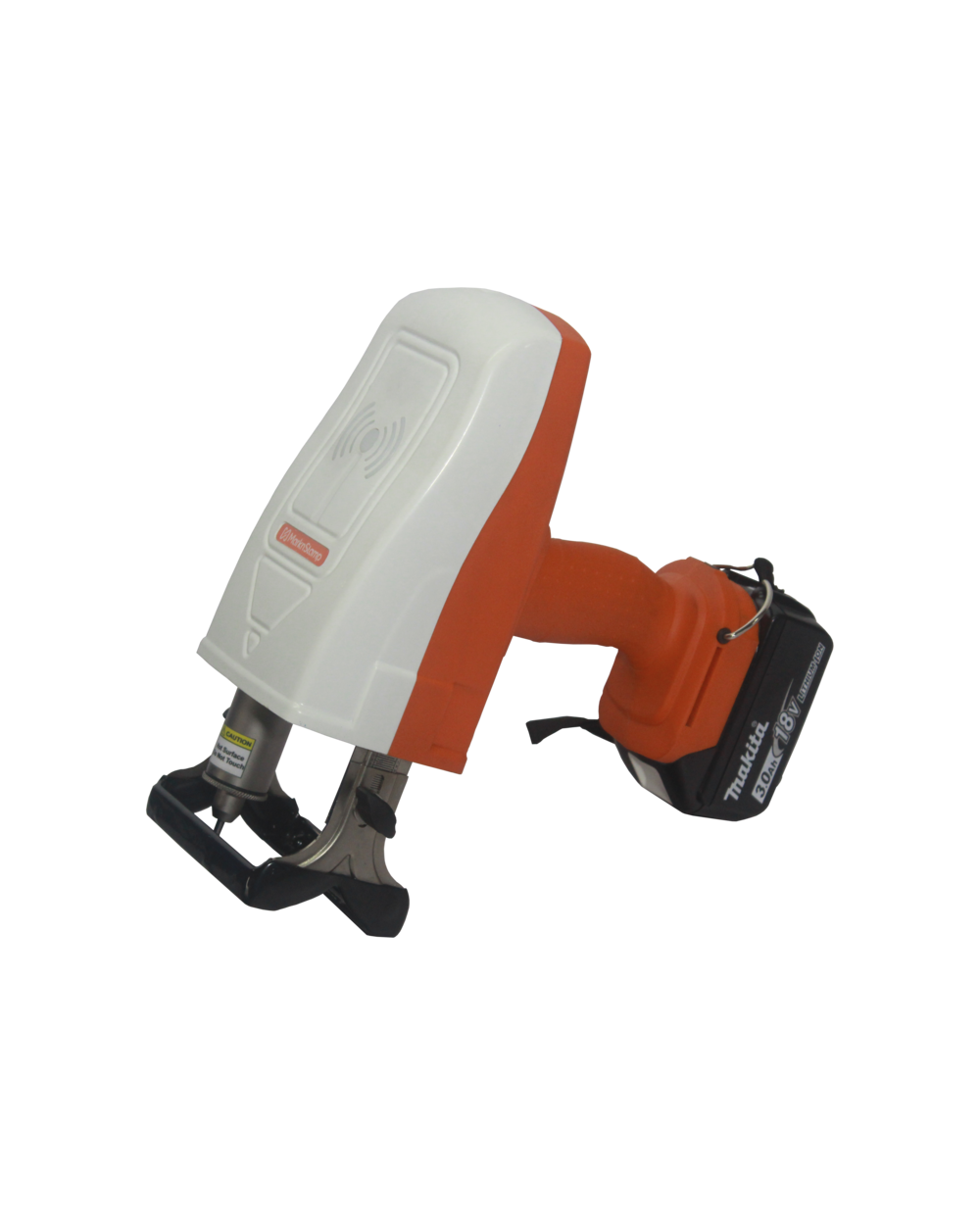

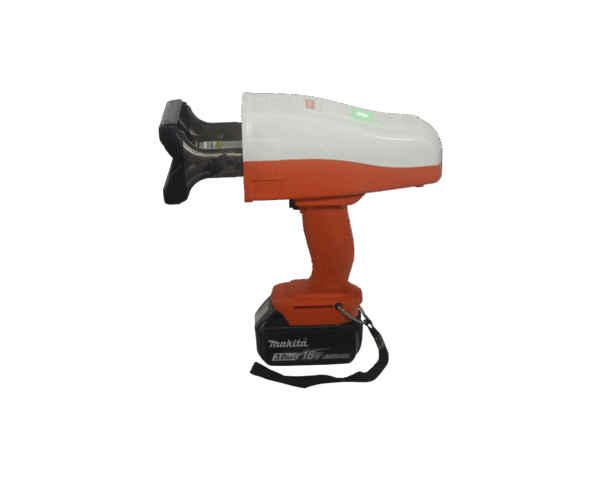

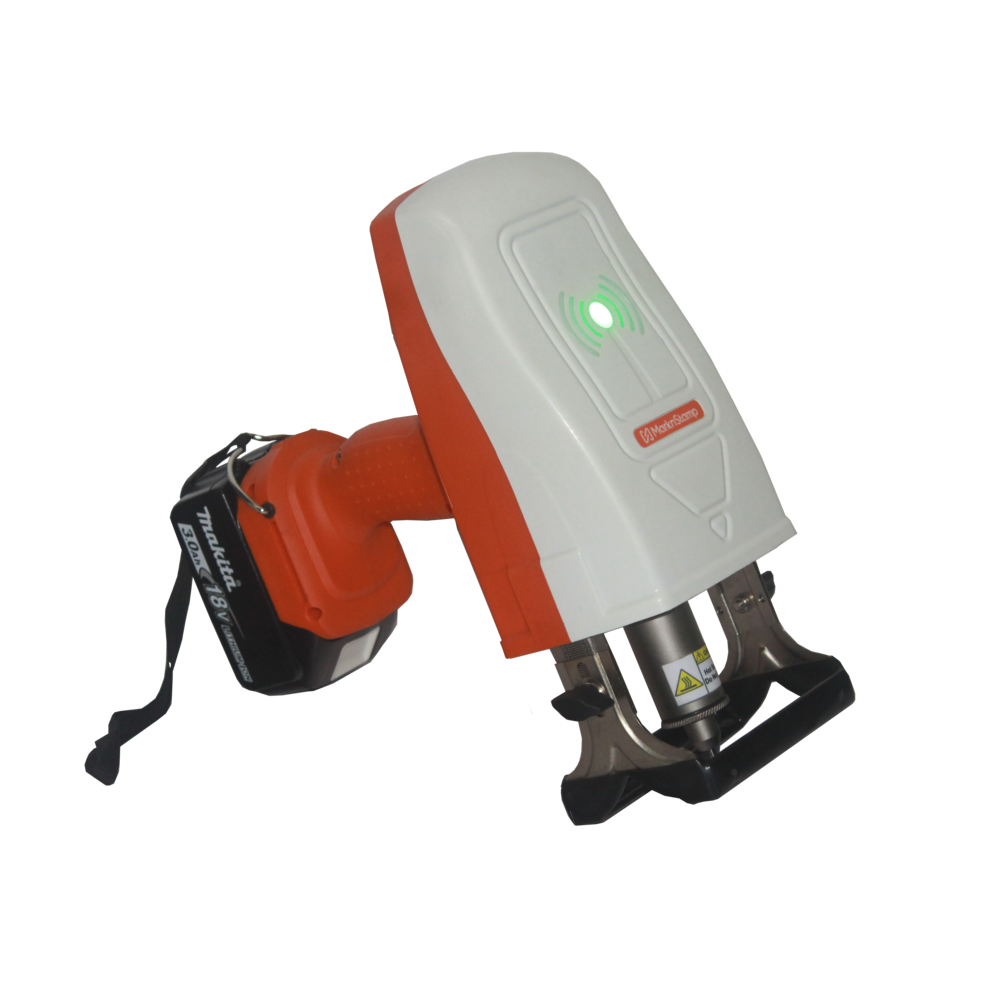

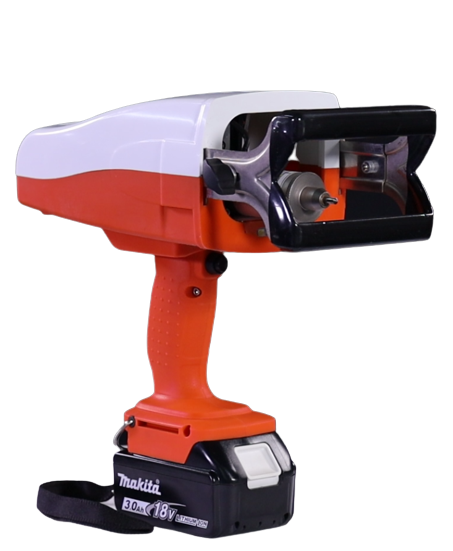

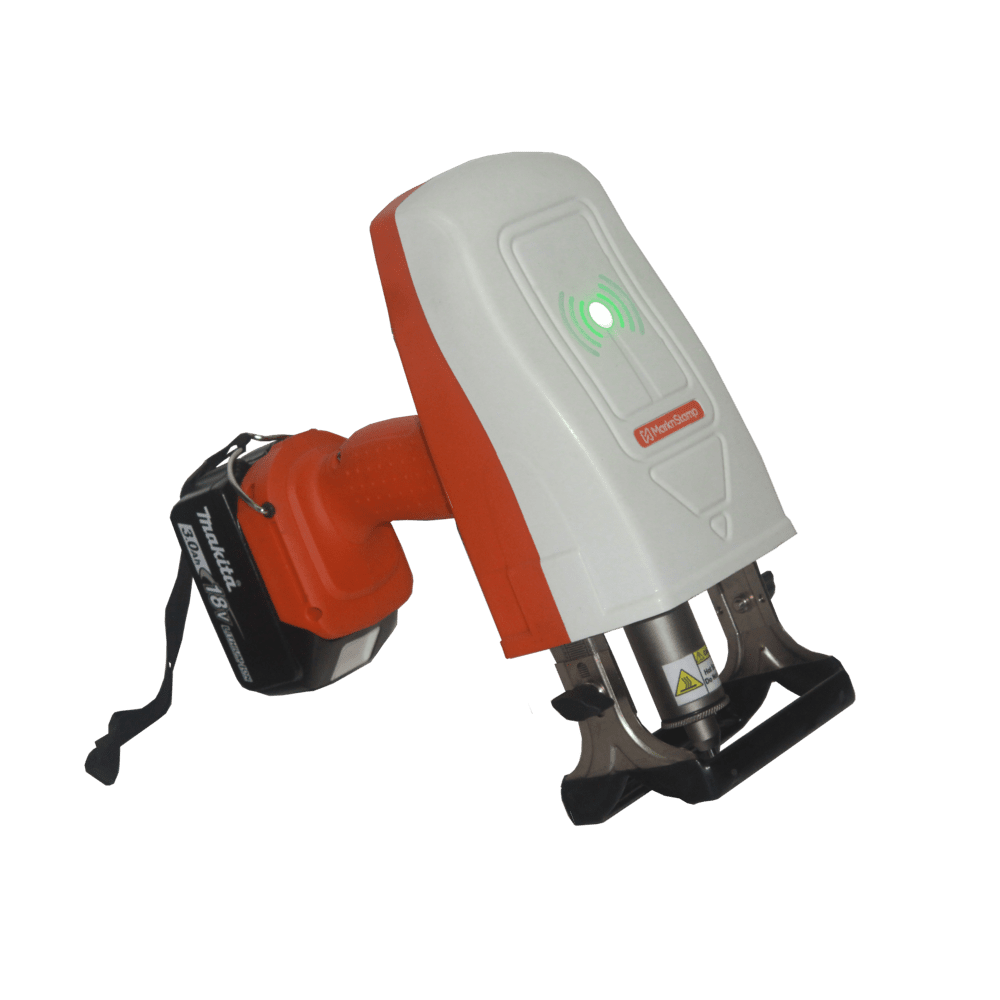

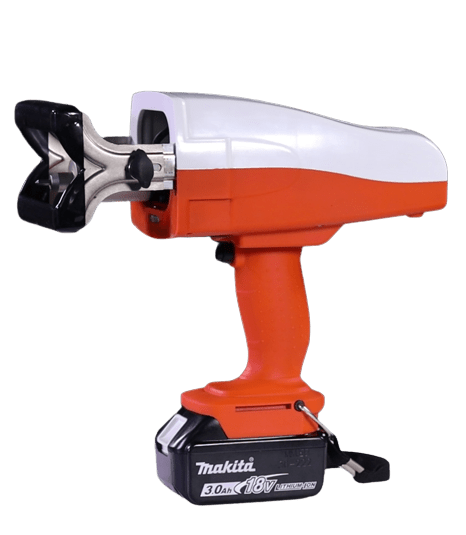

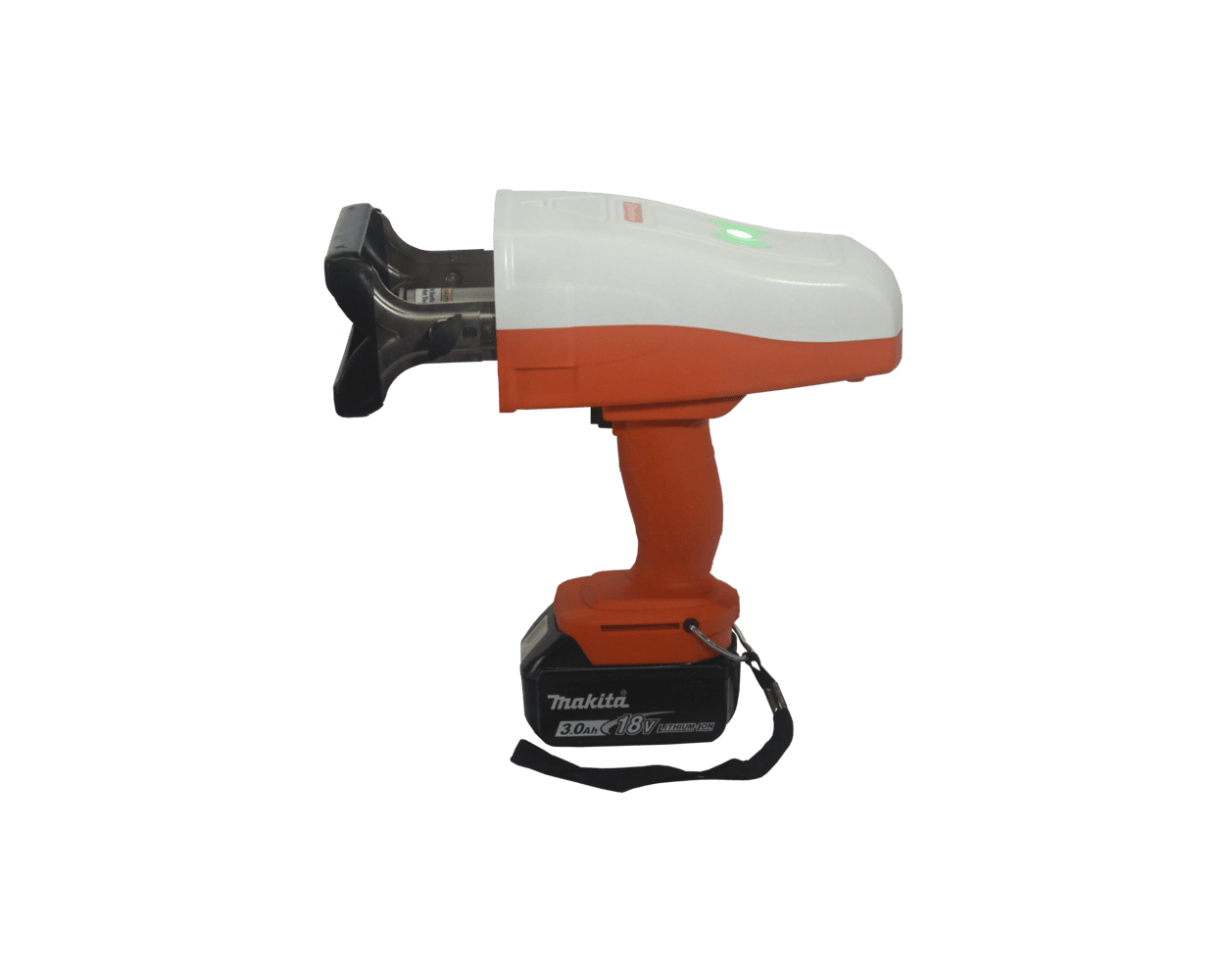

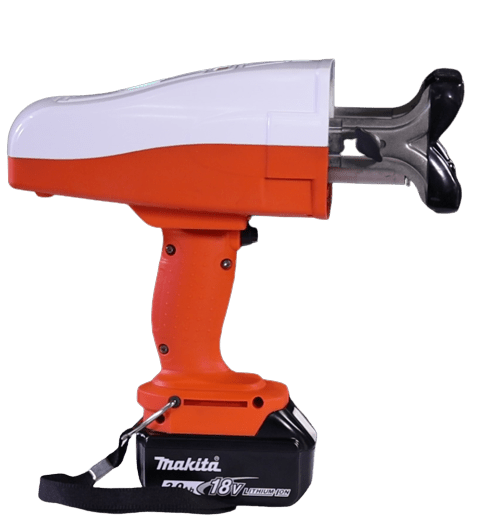

MNSB-53: Lightweight Battery-Operated Dot Peen Marking Machine
The MNSB-53 is a compact, cordless dot peen marking system designed for lightweight, portable marking applications. Engineered for easy use, the machine runs on a long-lasting Makita lithium battery and works standalone with a mobile device via Wi-Fi. Ideal for low-duty marking operations, the MNSB-53 delivers reliable, clear, and permanent marks on metal, plastic, and industrial surfaces.
Specifications
| Model Name | MNSB-53 |
| Type of Machine | Handheld, Battery Operated, Cordless. |
| Marking Area | 50 mm × 30 mm. |
| Machine Size | 286 mm × 135 mm × 285 mm. |
| Weight | 2.5 kg with 3Ah battery (Machine), 7 kg (Packaged). |
| Battery | Makita 18V DC, 3Ah standard (Up to 9Ah supported). |
| Battery Backup | Up to 8 hours (3Ah). |
| Stylus Type | Electric Stylus |
| Body Material | Glass-filled Nylon, shatter-proof |
| Depth of Marking | Up to 0.4 mm |
| Force Adjustment | 9 levels |
| Connectivity | Wi-Fi Spot (Internal), No external Wi-Fi needed. |
| App Compatibility | Android (min v6.0), iOS, Windows. |
| App Name | MNSB Launcher. |
| Display Requirement | Min. 5.5” Screen, 1280 × 720 px, 1.5 GB RAM. |
| Operating Mode | Standalone with app; single push-button. |
| Fonts Supported | Dot 5x7, 7x9, 11x16, Single Line, Fast Font, SHM, BOD, TTF. |
| Barcode Scanner | Phone camera or USB external barcode scanner. |
| Storage | Unlimited (on smartphone); 1 design onboard. |
| Accessories | Resting Legs (with/without magnets), Combo Column, Kiosk App. |
| Warranty | 1 Year. |
Main Features
- Lightweight Design – Only 2.5 kg (including battery).
- Portable Cordless Operation – Handheld use with no wires or PC needed.
- Wi-Fi Enabled – Built-in Wi-Fi spot, no internet required.
- Long Battery Life – Up to 8 hours of normal use with standard 3Ah battery.
- Makita-Compatible – Uses standard 18V Makita lithium batteries (3Ah–9Ah).
- Touchless App-Based Control – Supports Android, iOS, and Windows devices.
- App-Based Touchless Control – Compatible with Android, iOS, and Windows platforms.
- Robust Body – Made from shatter-proof, glass-filled nylon.
- Linear & Circular Text Marking.
- Serial Number, Date, Shift & Julian Code Options.
- QR & Datamatrix Code Marking.
- User Input Blocks and Blank Point Movement.
- Optional Accessories: Resting Legs, Combo Column, Kiosk App Mode.
- PRO Version Upgrade: Barcode parsing & CSV file marking.
Industrial Applications
• Light to Medium Duty Part Marking
• Nameplates and Component Identification
• Electric Panels, Pipe Tags, and Small Job Marking
• On-Site Metal Fabrication Marking
• Workshop & Warehouse Traceability
• Automotive and Aerospace Coding (light parts)
