HTP201
$999.00
The HTP201 from Instromart is a durable and flexible sensor built to deliver accurate humidity and temperature data in challenging environments. Its analog outputs, rugged construction, and protective features make it ideal for long-term deployment in areas exposed to moisture, dust, or chemical stress.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

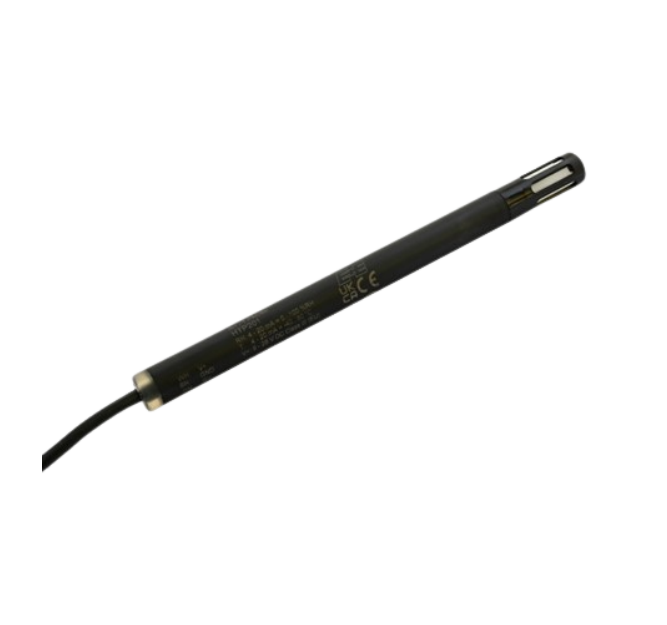

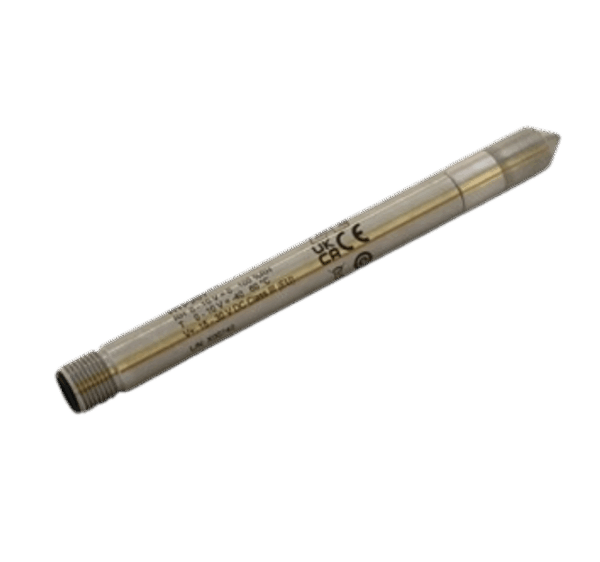

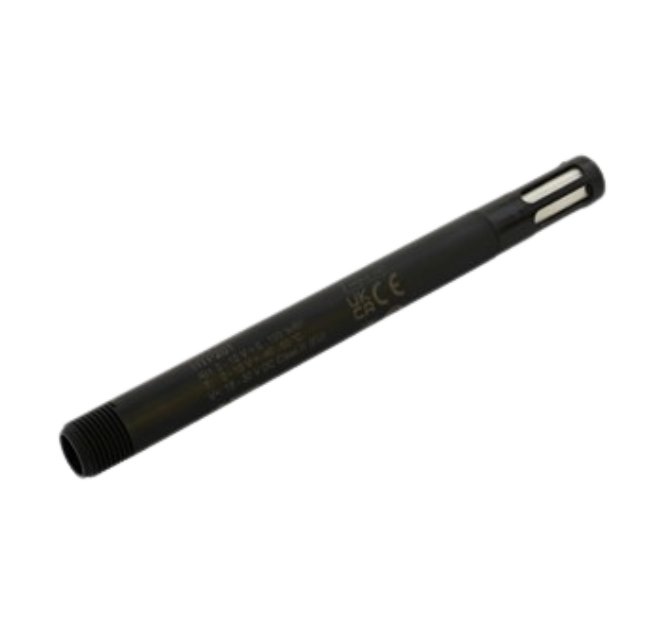

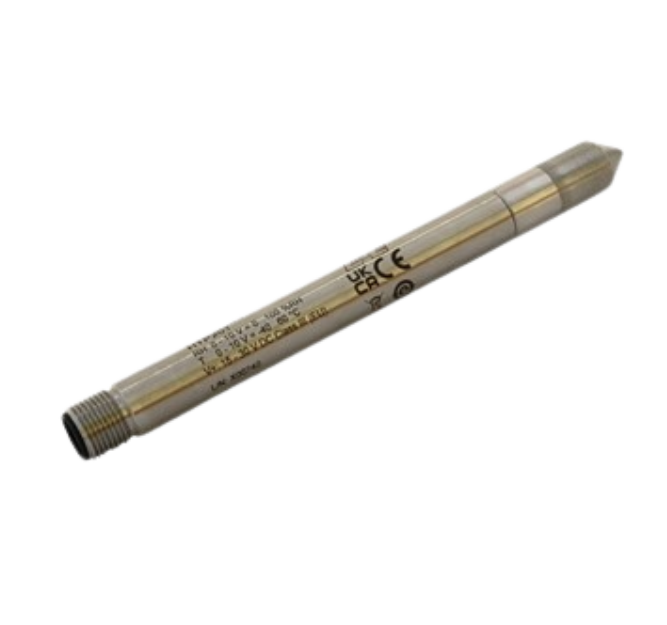

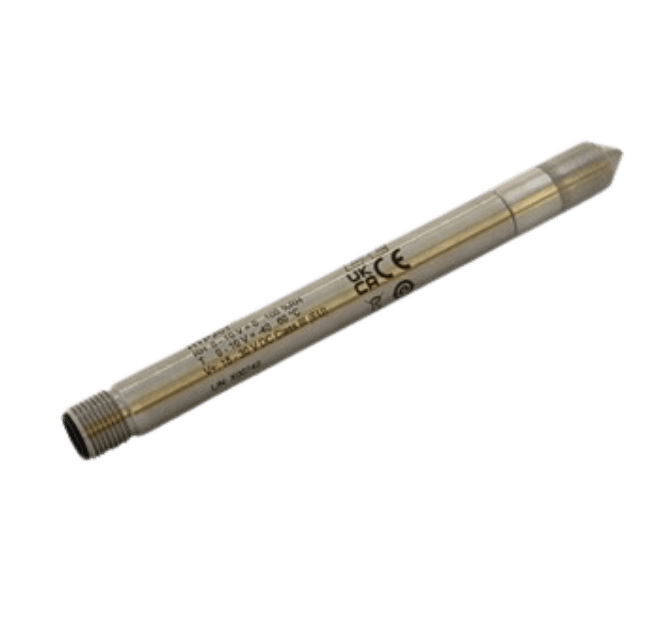

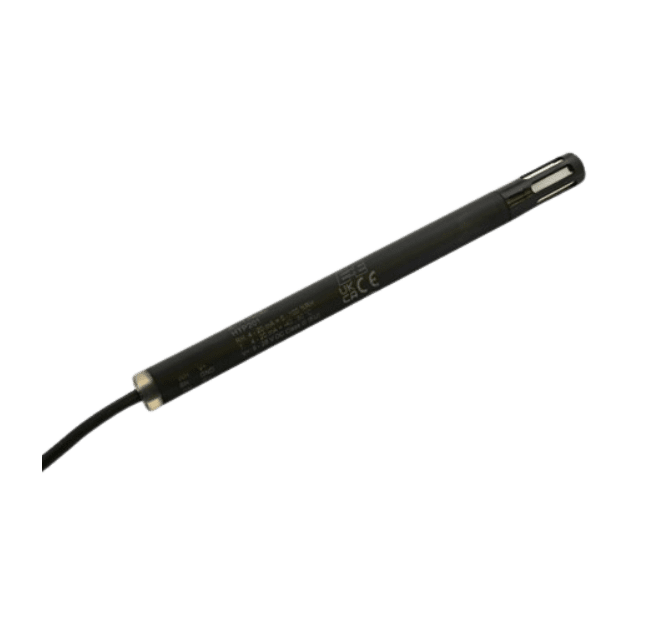

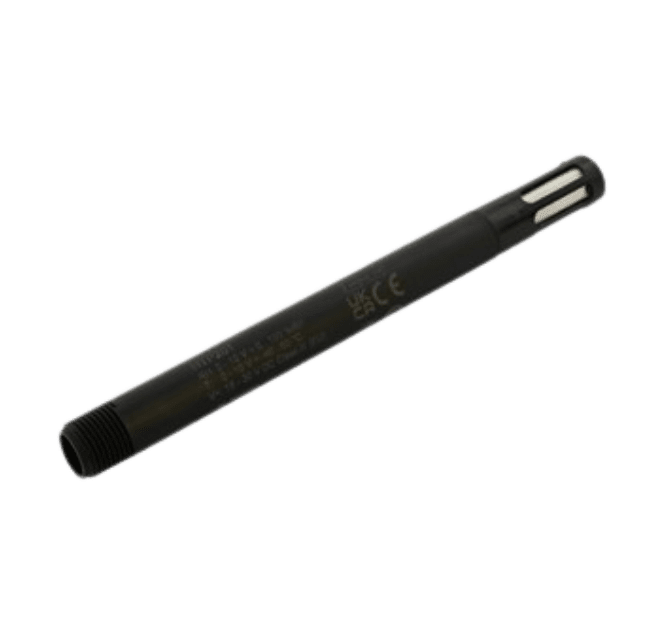

HTP201 – Rugged Analog Humidity and Temperature Sensor for Industrial Environments
The HTP201 is a durable, analog-output sensor probe designed for accurate measurement of temperature and relative humidity in challenging industrial, HVAC, and agricultural applications. With configurable voltage or current output signals, optional passive temperature sensing, and encapsulated electronics, this probe is built to deliver stable, long-term performance in polluted or high-humidity areas.
Specifications
| Measurement Parameters | Temperature and Relative Humidity. |
| Humidity Range | 0 to 100 % RH (non-condensing) |
| Humidity Accuracy | ±2.5 % RH at 23 °C (typical), up to ±5 % across full range. |
| Temperature Range | -40 to +80 °C |
| Temperature Accuracy | ±0.3 °C at 20 °C |
| Analog Outputs | 0–1 V, 0–5 V, 0–10 V (3-wire) or 4–20 mA (2-wire) |
| Passive Output (optional) | Pt1000, NTC 10k, Ni1000 (4-wire connection) |
| Power Supply Requirements | 3.6–30 V DC (voltage models); 9–28 V DC (current models). |
| Current Consumption | Typically 1.5 mA (voltage version). |
| Sensor Protection | E+E proprietary coating on RH sensor. |
| Housing Materials | Polycarbonate or stainless steel. |
| Ingress Protection | IP65 |
| Connector Type | M12 plug or fixed cable (1.5 m, 3 m, or 5 m options). |
| Response Time (Humidity) | Approx. 15 seconds (t63). |
Main Features
- Monitors both humidity and temperature through a compact, all-in-one probe.
- Available with multiple options of analog outputs in both voltage (0–1 V / 0–5 V / 0–10 V) and 4–20 mA current formats.
- Optional passive temperature signal (RTD or thermistor via 4-wire) available.
- Broad measurement range: -40 to +80 °C and 0 to 100% RH
- Delivers dependable accuracy of ±2.5% for humidity and ±0.3 °C for temperature.
- Sturdy enclosure options: polycarbonate or stainless steel.
- Sensing element is coated for added protection in harsh or humid air.
- Fully encapsulated electronics extend durability and resist damage.
- Easy connection via M12 plug or fixed cable in multiple lengths.
- IP65-rated housing ensures reliable operation in rugged environments.
- One compact sensor for temperature and humidity tracking.
- Output scaling pre-set and customizable by model code.
- Signal options: voltage (0–1 / 0–5 / 0–10 V) or 4–20 mA current loop.
- Power input ranges from 3.6–30 V DC (voltage) or 9–28 V DC (current)
- Special sensor coating resists contaminants and moisture.
- Choose between M12 connection or pre-attached cable (1.5–5 meters).
- Long-lasting performance with minimal signal drift.
- Energy-efficient design with low current draw.
- Quick response and stable readings under varying conditions.
Industrial Applications
- Industrial environment and automation systems.
- HVAC and ventilation control in buildings.
- Greenhouse and agriculture climate monitoring.
- Cleanroom and pharmaceutical air quality regulation.
- Equipment integration in energy and environmental systems.
