Elcometer 456 Ferrous Separate – Model A456CFBS

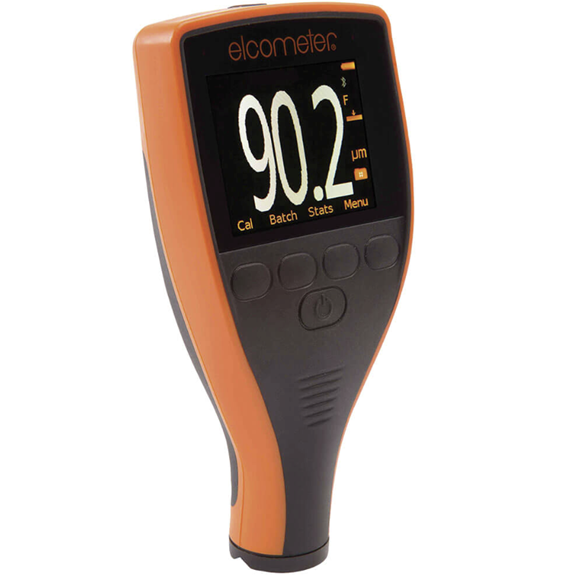

The Elcometer 456 Ferrous Separate (Model A456CFBS) is a high-precision coating thickness gauge designed for accurate, repeatable, and traceable dry film thickness (DFT) measurements on ferrous metal substrates. Ideal for use in heavy-duty industrial environments, it features separate probe compatibility and is engineered to meet international test standards for reliable quality control and inspection.
Specifications
| Model | Elcometer 456 A456CFBS (Ferrous Separate). |
| Display | 2.4” QVGA colour TFT, 320×240 px, auto-rotating. |
| Measurement Range | 0–31 mm (based on probe selection). |
| Accuracy | ±1–3% or probe-specific (whichever is greater). |
| Probe Type | Separate (Ferrous only). |
| Storage Capacity | 150,000 readings in 2,500 batches. |
| Communication | USB and Bluetooth®. |
| Battery Type | 2 × AA (alkaline or rechargeable). |
| Battery Life | Up to 24 hours of continuous use. |
| Operating Temperature | -10°C to +50°C. |
| Weight | Approx. 161 g (including batteries). |
| Software Compatibility | ElcoMaster® (Windows, Android™, iOS). |
| Protection Rating | IP64 Equivalent. |
| Standards Supported | ISO, ASTM, SSPC PA2, IMO PSPC, JIS, BS, EN, etc. |
Main Features
- Measurement range: 0 to 31 mm (up to 1220 mils) depending on the selected probe.
- Accuracy: ±1–3% or fixed probe-specific values.
- Supports a wide range of interchangeable probes (ferrous only for this model).
- Dust and solvent-resistant screen; large buttons with tactile feedback.
- Automatic display rotation and tap-to-wake for fast operation.
- Battery-powered operation (2 × AA) with ~24-hour life per set.
- Lightweight: Approx. 161g with batteries (gauge only).
- Designed for ferrous (magnetic) metal substrate coating thickness measurements.
- Rugged separate probe design—ideal for challenging or hard-to-access surfaces.
- Durable IP64-rated construction—resistant to dust, water, and mechanical impact.
- 2.4” color screen with auto-rotate and clear outdoor readability.
- Internal memory supports logging of up to 150,000 readings, organized in 2,500 groups.
- Compatible with ElcoMaster® software and mobile app for full reporting.
- USB and Bluetooth® output for fast data transfer
- Factory-calibrated and traceable with test certificates included
Industrial Applications
• Coating thickness measurement on steel structures, tanks, and pipelines.
• Used for coating inspection in ships and coastal equipment.
• Used for paint and powder coat checks in manufacturing setups
• Surface coating audits on bridges, structural steel, and OEM components.
• Lab and field measurement compliance with ISO, ASTM, and NAVSEA protocols.
