EE741
$999.00
The EE741, distributed by Instromart, It offers a compact, modular design with minimal installation effort and integrates seamlessly into existing systems.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

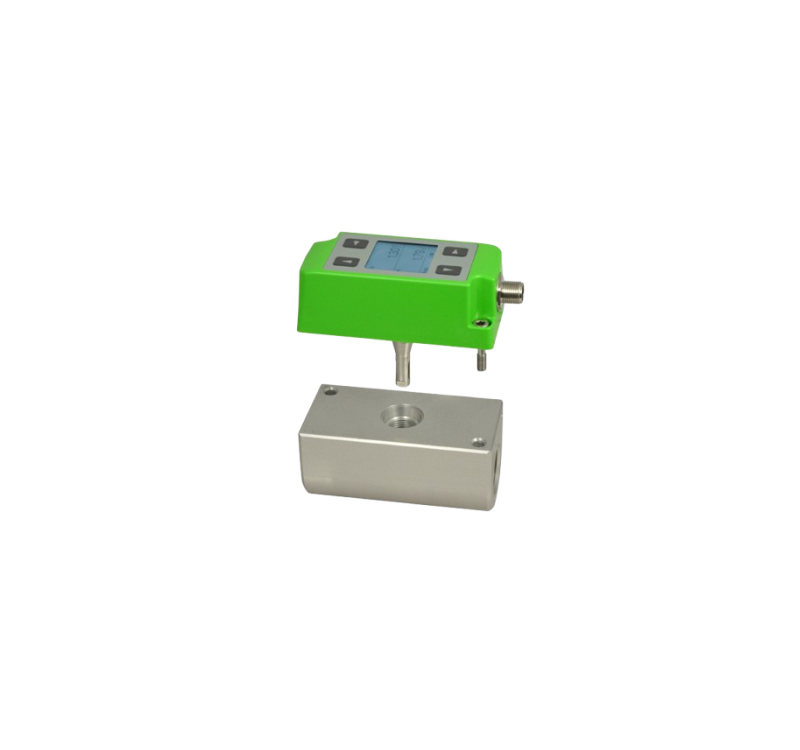

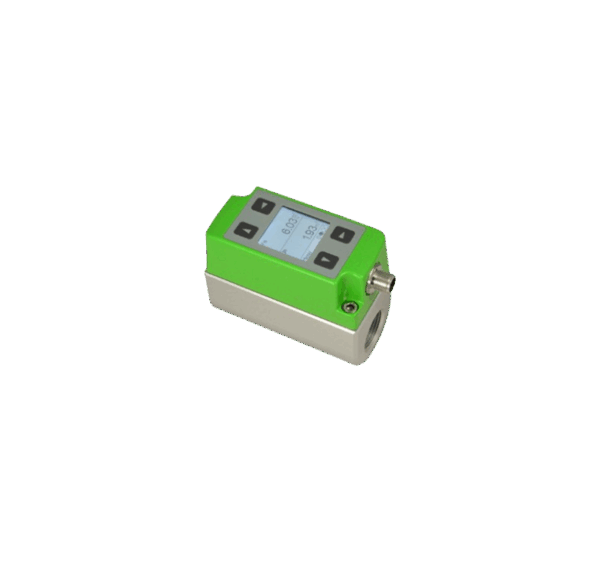

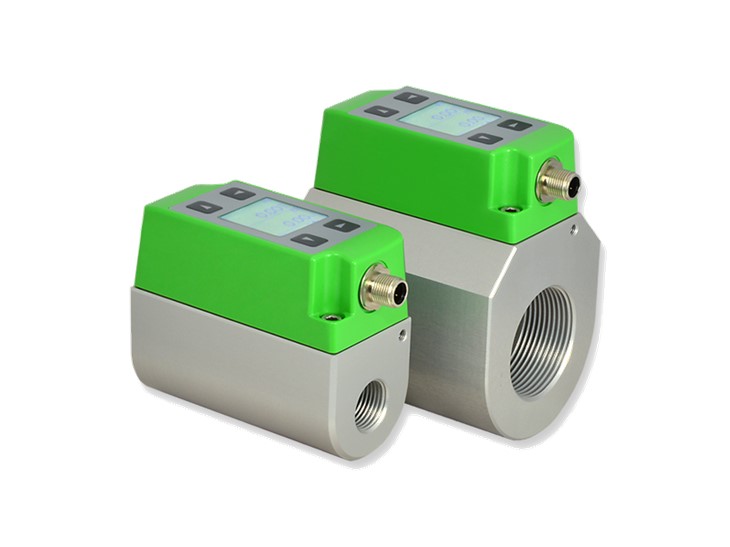

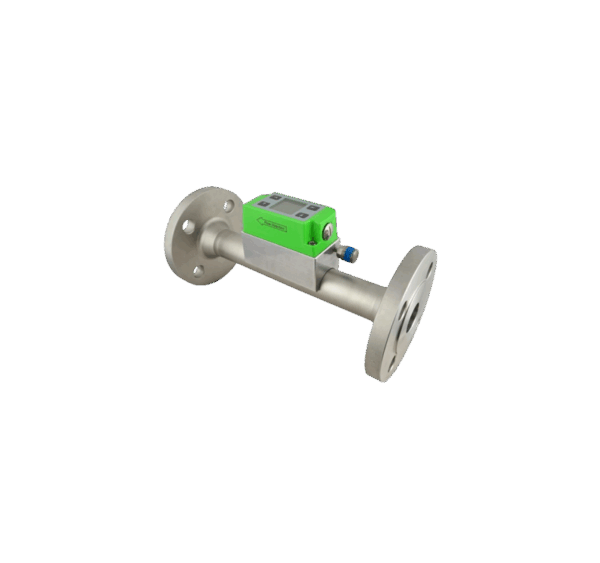

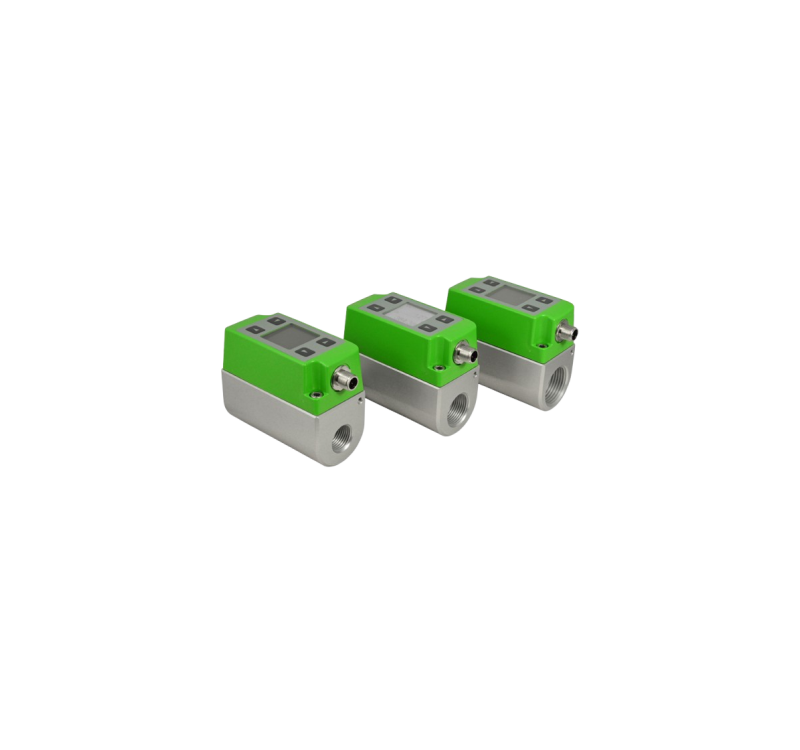

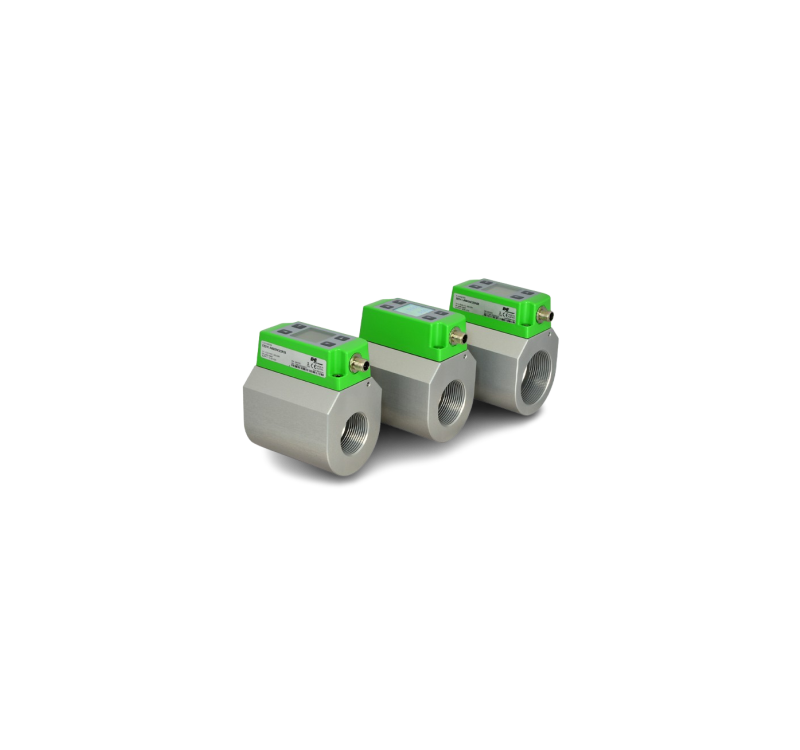

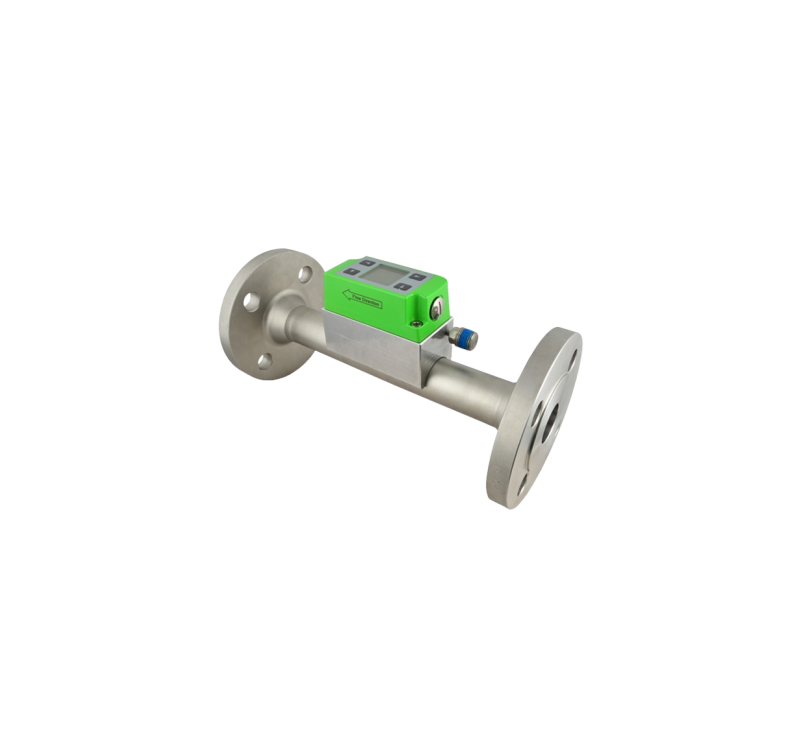

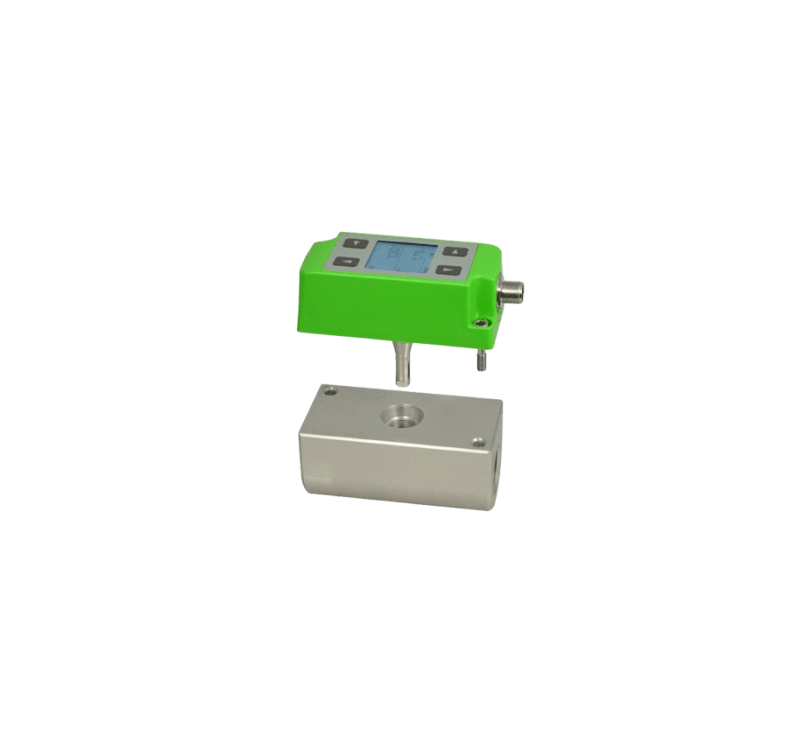

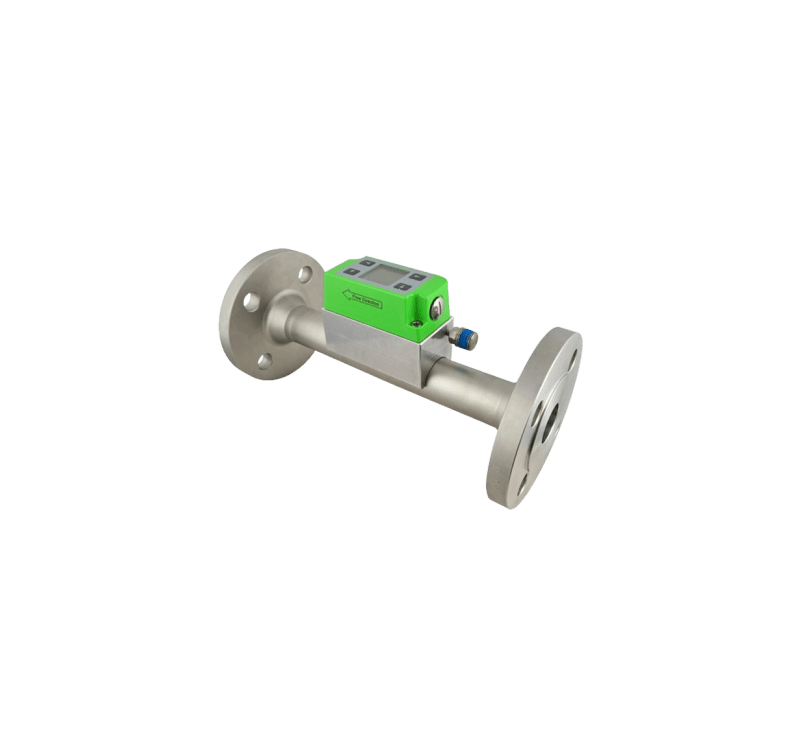

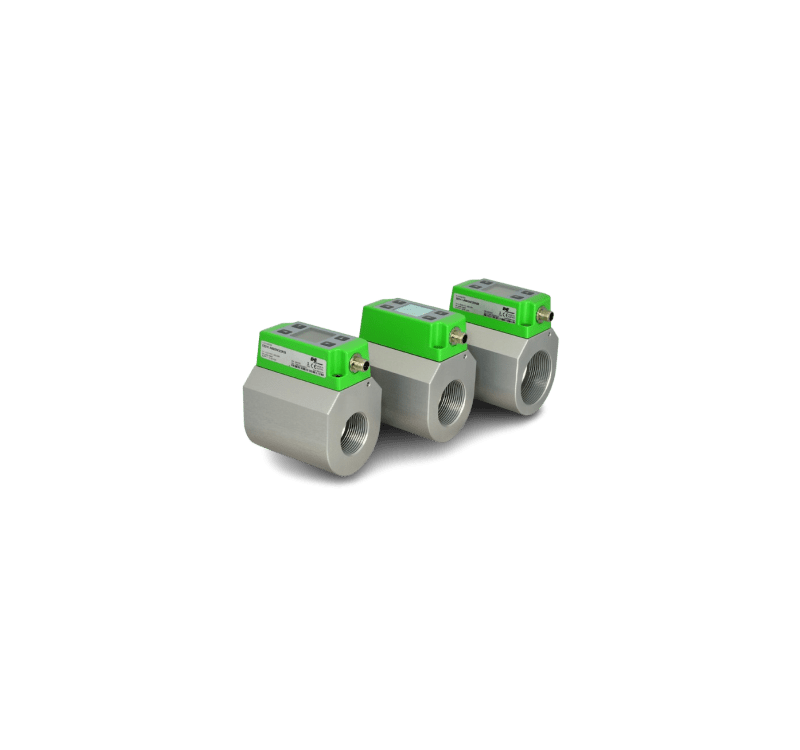

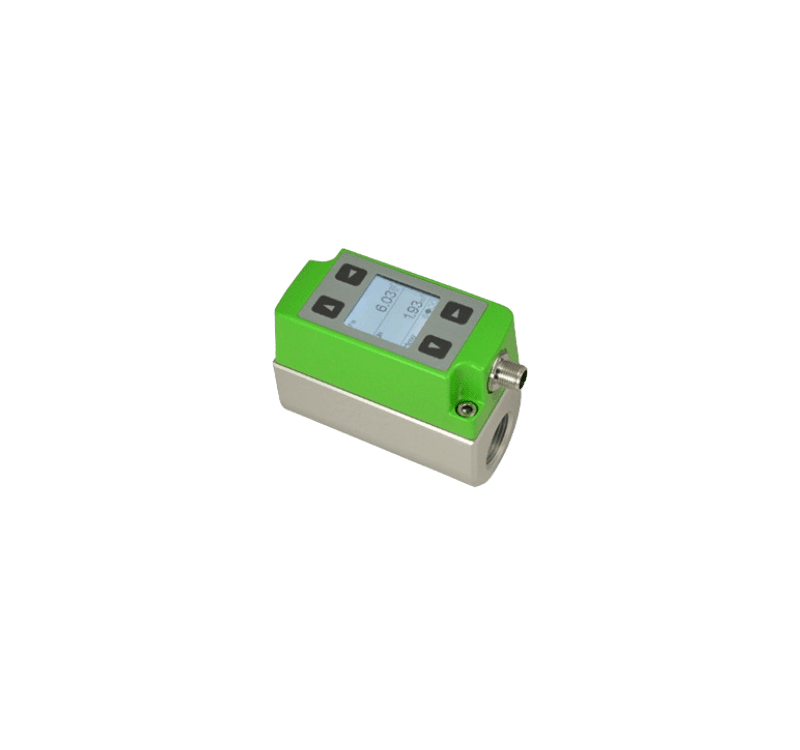

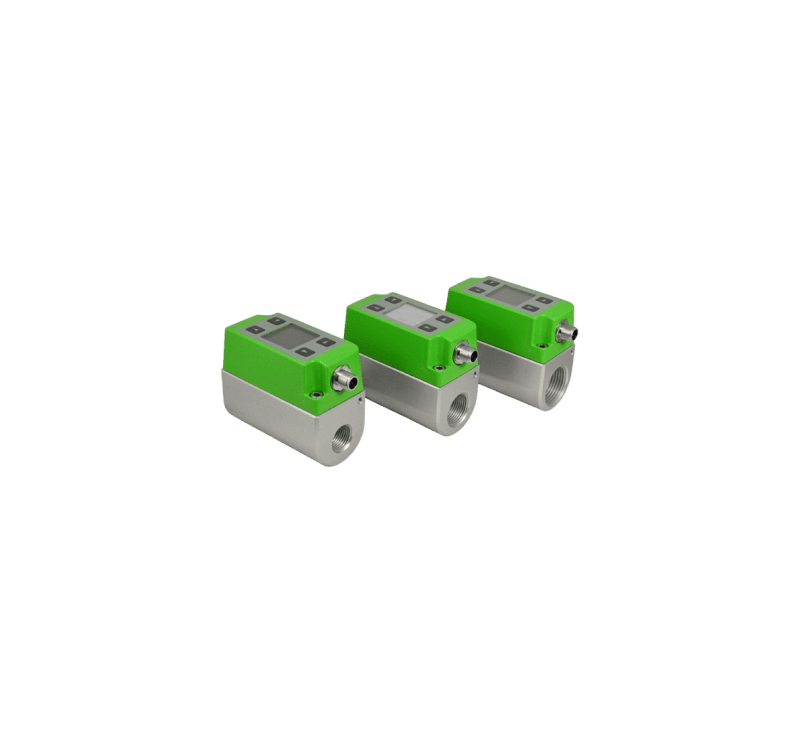

EE741 Inline Flow Sensor
The EE741 Inline Flow Sensor by E+E Elektronik is designed for the accurate measurement of compressed air and gases in industrial environments. It offers a compact, modular design with minimal installation effort and integrates seamlessly into existing systems. By monitoring flow consumption, the EE741 helps reduce energy costs and detect leakages effectively.
Specifications
| Measurement Range | 0.5 to 200 Nm³/h (depending on probe and pipe diameter) |
| Accuracy | ±3% of measured value (or ±0.3 Nm³/h) |
| Repeatability | ±0.5% of measured value |
| Media | Compressed air, nitrogen, oxygen, CO₂, non-corrosive gases |
| Operating Pressure | Up to 16 bar (232 psi) |
| Operating Temperature Range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Output Options | 1x Analog (0–10 V or 4–20 mA), 1x Pulse, RS485 (Modbus RTU) |
| Power Supply | 18 – 30 V DC |
| Electrical Connection | M12 5-pin (male) |
| Display (optional) | 2-line LC display |
| Protection Class | IP65 |
| Process Connection | Inline (threaded) or with Hot Tap Valve (optional) |
| Housing Material | Aluminum alloy with protective coating |
| Probe Lengths Available | Various lengths based on pipe diameter (DN15 to DN50 inline variants) |
| Configuration Interface | USB via configuration adapter and software |
Main Features
• Compact & Modular Design: Easy installation and integration with existing systems.
• High Accuracy: Suitable for measuring flow in compressed air and non-corrosive gases.
• Integrated Display (optional): Real-time readout of flow and consumption.
• Multiple Output Options: Analog, pulse, and Modbus RTU over RS485.
• Hot Tap Mounting (optional): Installation without system shutdown.
• User-Configurable Setup: Via USB and configuration software.
• Measurement Capability: Volumetric flow and consumption of compressed air and gases.
• Sensor Type: Thermal mass flow sensing principle.
• Media: Compressed air, nitrogen, oxygen, CO₂, and other non-corrosive gases.
• Mounting: Inline measurement with optional hot tap valve.
• Pressure Rating: Up to 16 bar (232 psi).
• Display: Optional, with configurable units and parameters.
• Interface: RS485 with Modbus RTU, analog output, and pulse output.
• Power Supply: 18–30 V DC.
Industrial Applications
• Compressed Air Systems: Monitoring consumption and flow in factories or processing plants.
• Leak Detection: Helps in identifying leaks to improve energy efficiency.
• Energy Management: Monitoring flow and consumption for cost analysis and optimization.
• Gas Distribution Systems: Accurate metering of non-corrosive gas flows.
• OEM Integration: Suitable for integration into machinery and process equipment.
• Maintenance and Servicing: Rapid installation and removal for system upgrades and checks.
