EE610
Available on backorder
-
The EE610, available at Instromart, is ideal for low differential pressure monitoring in cleanrooms, hospitals, and pharma environments. It ensures high accuracy for air and non-aggressive gas applications.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

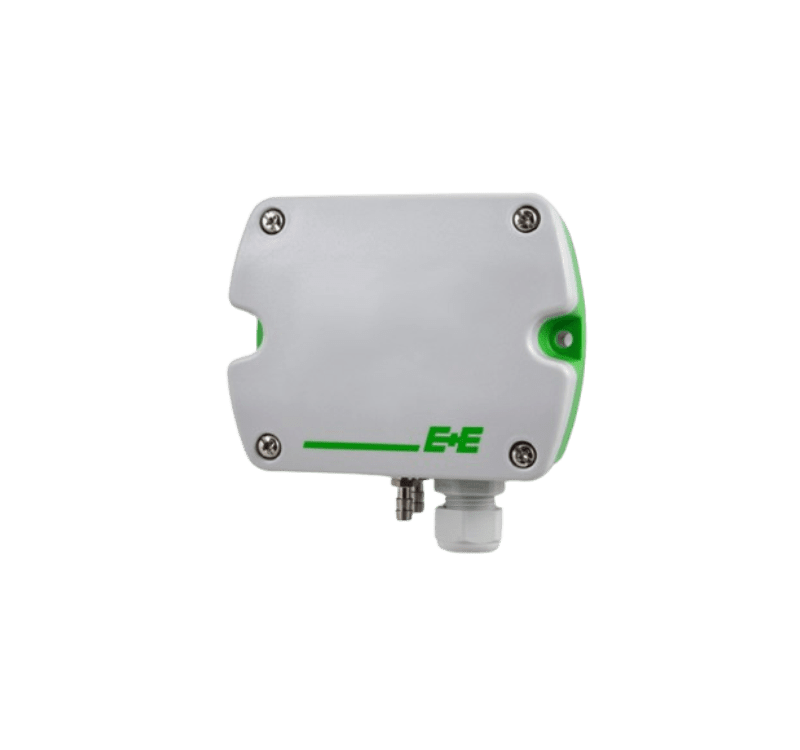

EE610 Low Differential Pressure Sensor
The EE610 is a precision sensor designed for accurate measurement of low differential pressure, making it ideal for sensitive environments such as clean rooms, hospitals, laboratories, isolation chambers, and applications within the pharmaceutical industry. It is compatible with air and all non-flammable, non-aggressive gases.
Specifications
| Measurement Principle | Piezoresistive, no flow-through. |
| Measuring Range | ±25 / ±50 / ±100 Pa or 0…100 Pa (selectable). |
| Accuracy | ±0.5 Pa |
| Temperature Dependency | 0.03 Pa/K |
| Response Time (t90) | 50 ms to 4 s (analog); 0.5 s to 30 s (digital). |
| Auto-zero Interval | 24 h (default), 10 min – 7 days (configurable). |
| Overload Limits | ±7000 Pa |
| Output | Analog (0-10 V, 4-20 mA), Digital (RS485 Modbus RTU). |
| Display | Graphic with backlight (optional). |
| Power Supply | 15–35 V DC or 24 V AC ±20% |
| Power Consumption (typical) | 23 mA (no display); 49 mA (with display). |
| Temperature Range (Operating) | -20 to +60 °C (-4 to +140 °F) |
| Enclosure Protection | IP65 / NEMA 4X |
| Certifications | EN 61326, FCC Part 15 Class A, ICES-003 Class A. |
| Electrical Connections | Spring-loaded/screw terminals, cable gland M16x1.5. |
Main Features
- High accuracy of ±0.5 Pa.
- Selectable measurement ranges: ±25 / ±50 / ±100 Pa and 0…100 Pa.
- Piezoresistive, no flow through sensing element.
- Long-term stability (<0.5 Pa/year).
- Analog and digital outputs (RS485 with Modbus RTU).
- IP65 / NEMA 4X robust housing.
- Easy configuration via DIP switches or PCS10 software.

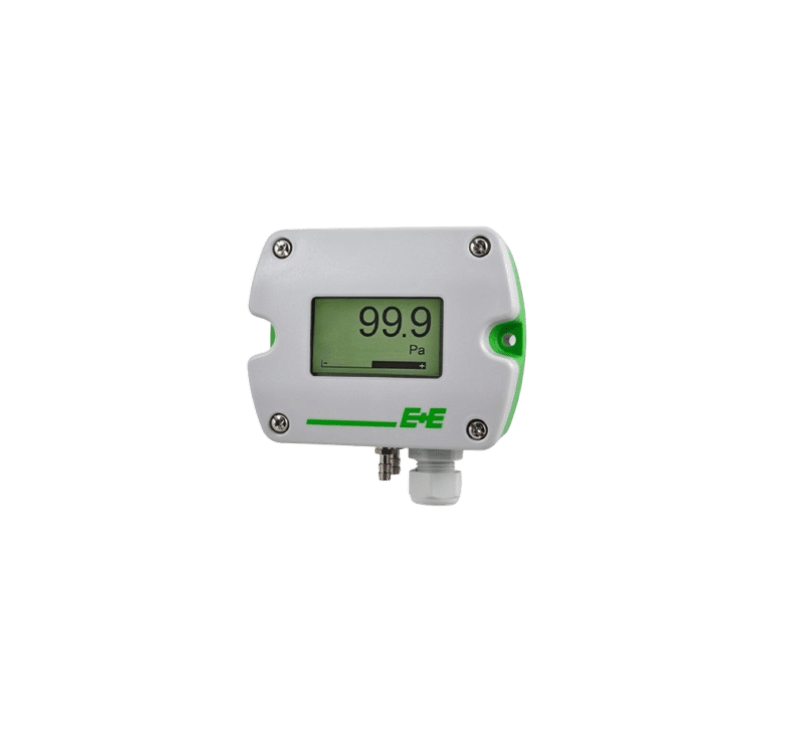

- Optional backlit graphic display.
- Auto-zero function configurable.
- Accuracy: ±0.5 Pa (0.5% of full scale).
- Response Time: Adjustable from 50 ms to 30 s.
- Power Supply: 15–35 V DC or 24 V AC ±20%.
- Output Options: 0–10 V, 4–20 mA, RS485 digital interface.
- Enclosure: IP65 / NEMA 4X, polycarbonate body.
- Installation: External mounting holes for closed-cover installation.
- Temperature Range: -20 to +60 °C (operation), -40 to +70 °C (storage).
Industrial Applications
- Clean Rooms: Monitoring and control of slight air pressure differences for contamination prevention.
- Hospitals: Pressure monitoring in surgical suites and isolation wards.
- Laboratories: Ensures precise environmental conditions for experiments and equipment.
- Pharmaceutical Industry: Maintains required differential pressures in production zones.
- Isolation Chambers: Controls airflow to prevent the escape of hazardous substances.
