EE600
$999.00
The EE600 available at Instromart delivers precise differential pressure measurement for HVAC and clean air systems. With multi-range settings and optional auto-zero, it ensures long-term stability and reliability.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

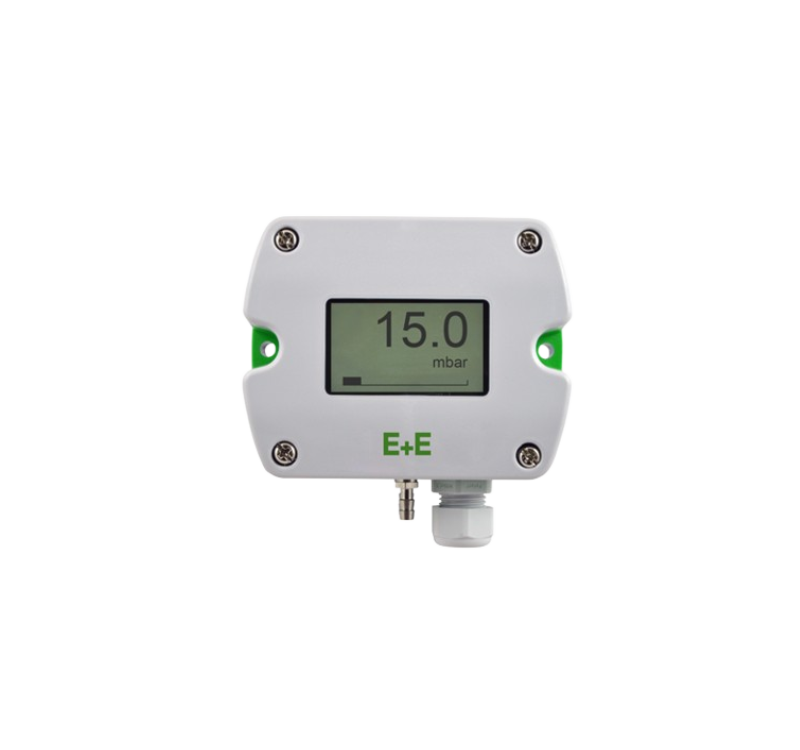

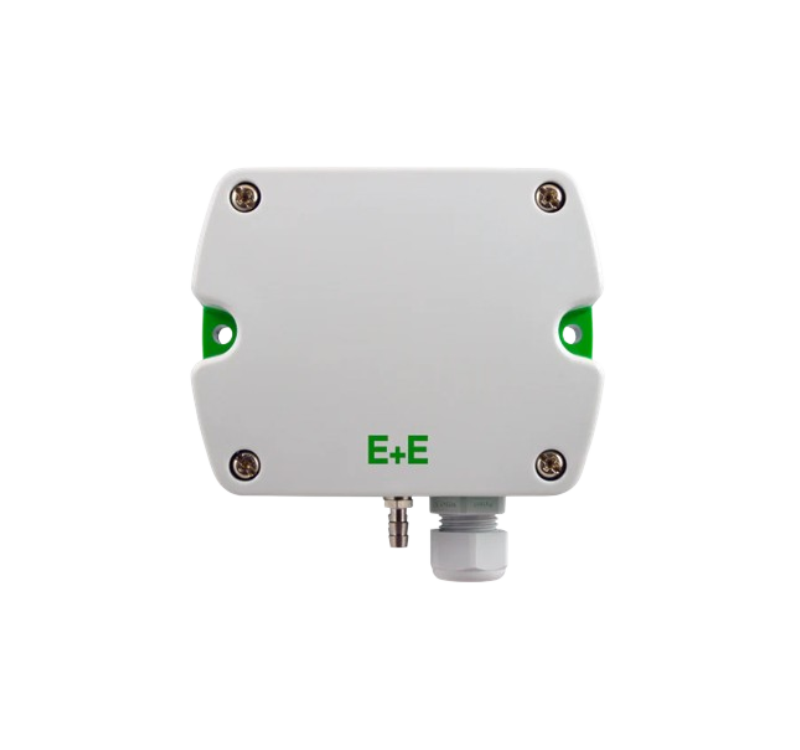

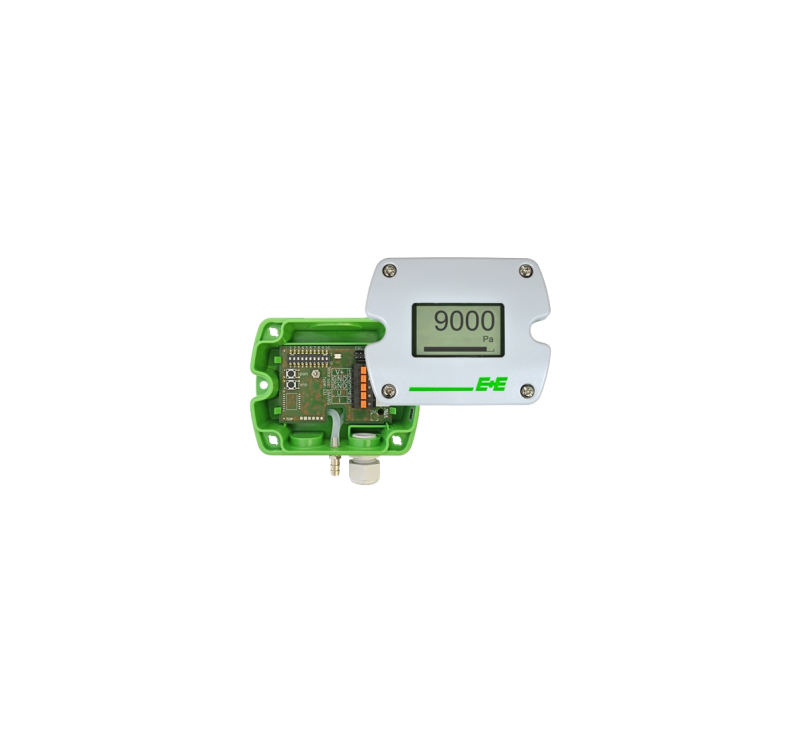

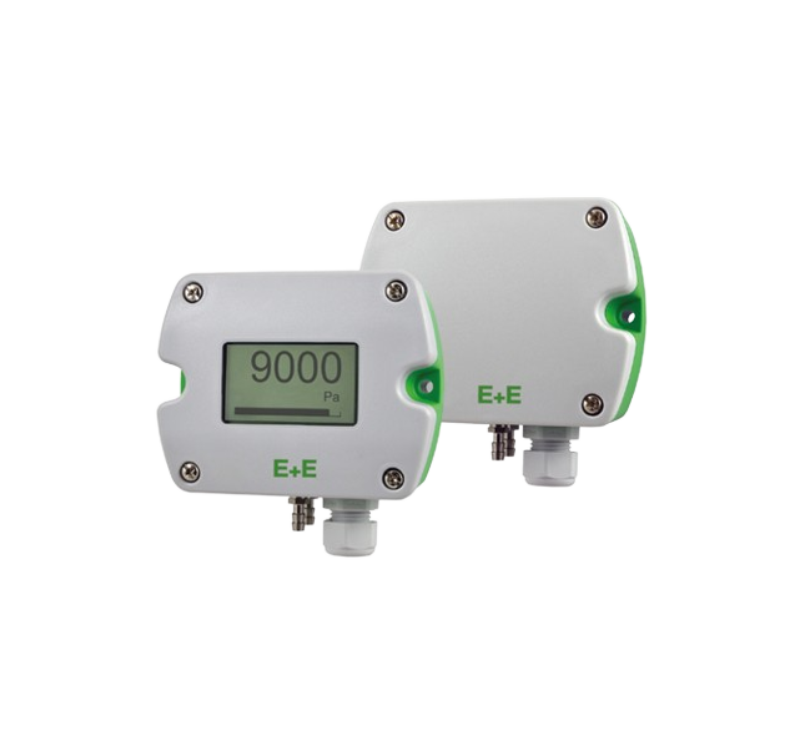

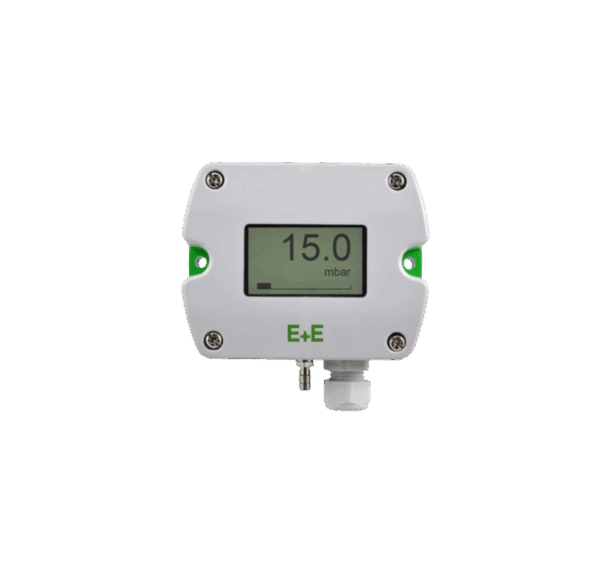

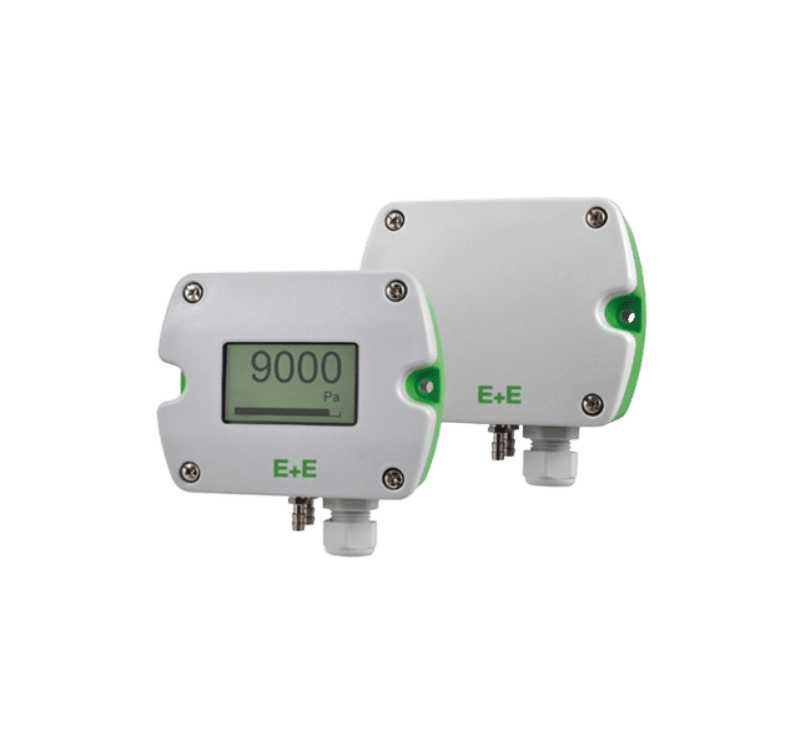

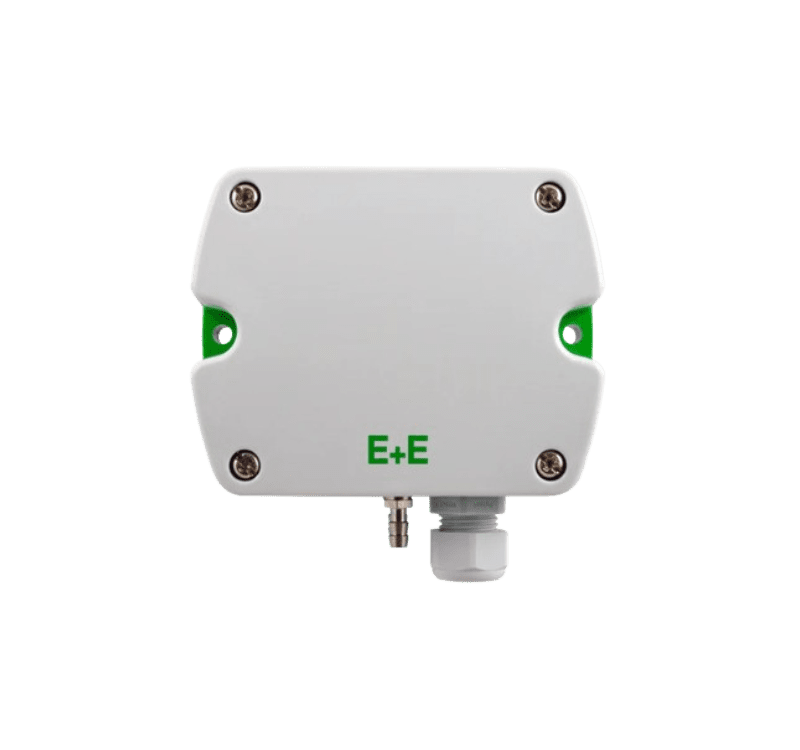

EE600 Differential Pressure Sensor
The EE600 differential pressure sensor is engineered for precise and dependable measurement of differential pressure in HVAC systems, building automation, and filter monitoring. This versatile, multi-range sensor is compatible with air and all non-flammable, non-aggressive gases. It is optionally equipped with an auto-zero function to ensure consistent long-term accuracy.
Specifications
| Specification | Value |
| Measurement Principle | Piezoresistive, no flow-through. |
| Pressure Range | ±1000 Pa, ±10,000 Pa, 0–1000 Pa, 0–10,000 Pa. |
| Output Signals | 4–20 mA (2-wire), 0–10 V, 0–5 V, 0–20 mA, RS485 (Modbus RTU). |
| Display Options | With or without backlight. |
| Selectable Units | Pa, kPa, mbar, inch WC, m³/h, ft³/min, m/s, ft/min, % |
| Mounting | External mounting holes, sealed cover. |
| Housing Material | Polycarbonate, UL94 V-0 (UL94 HB with display). |
| Protection Rating | IP65 / NEMA 4X. |
| Power Supply | 15–35 V DC / 24 V AC ±20 % |
| Current Consumption | Up to 49 mA with display and backlight. |
| Operating Temp. Range | -20 to +60 °C (with display up to +50 °C). |
| Storage Temp. Range | -40 to +70 °C (with display up to +60 °C). |
| Conformity | EN 61326-1, FCC Part15 Class A, ICES-003 Class A. |
Main Features
- High Accuracy: ±0.5 % full scale.
- Multiple Ranges: Unidirectional and bidirectional up to ±10,000 Pa (± 40 inch WC).
- Output Options: Analogue voltage and current, 4–20 mA (2-wire), RS485 with Modbus RTU.
- Graphic Display: Optional backlit display for clear readouts.
- Auto-Zero Function: Optional for drift compensation.
- Robust Housing: IP65 / NEMA 4X enclosure with easy mounting.
- Flexible Configuration: DIP switches or PCS10 software for setup.
- Accuracy ±0.5 % FS.
- Pressure Ranges ±1000 Pa / ±10,000 Pa; 0–1000 Pa / 0–10,000 Pa.
- Sensing Technology Piezoresistive, non-flow-through.
- Response Time 50 ms to 4 s (analogue), 0.5 to 30 s (digital).
- Long-Term Stability <0.5 % FS/year.
- Auto-Zero Interval Factory set to 24h configurable via PCS10.
- Power Supply 15–35 V DC / 24 V AC ±20 %.
- Protection Class IP65 / NEMA 4X.
- Temperature Range -20 to +60 °C operating, -40 to +70 °C storage.
- Compliance EN 61326-1, FCC Part 15 Class A, ICES-003 Class.
Industrial Applications
- HVAC Systems: Precise control of air pressure in ducts and cleanrooms.
- Building Automation: Monitoring and managing airflows and pressure zones.
- Filter Monitoring: Ensuring timely maintenance and efficiency of filters.
- Cleanrooms & Labs: Stability monitoring for critical environments.
- Level Measurement: Monitoring liquid or granular levels via pressure.
- Energy Management Systems: Integration for optimized airflow control.
