EE462
$999.00
The EE462, distributed by Instromart, delivers accurate and long-lasting temperature monitoring across HVAC, industrial, and building management systems. Its passive output design ensures stable readings without the need for recalibration or power supply, making it a reliable choice for professionals.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

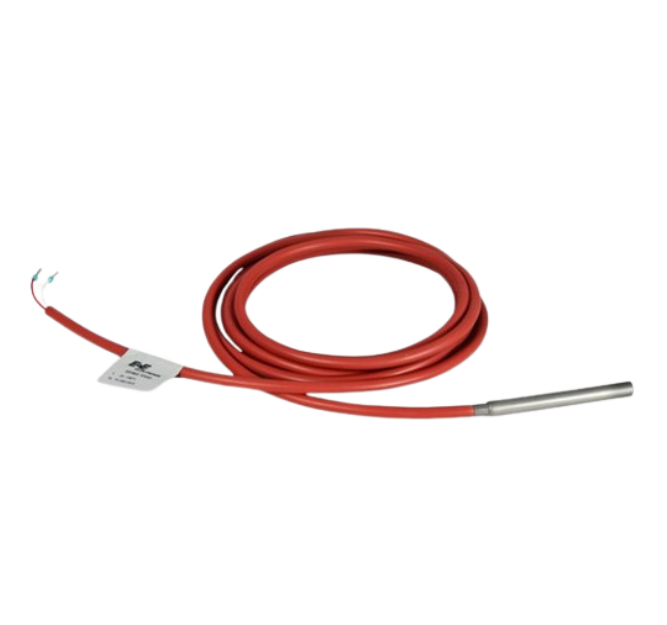

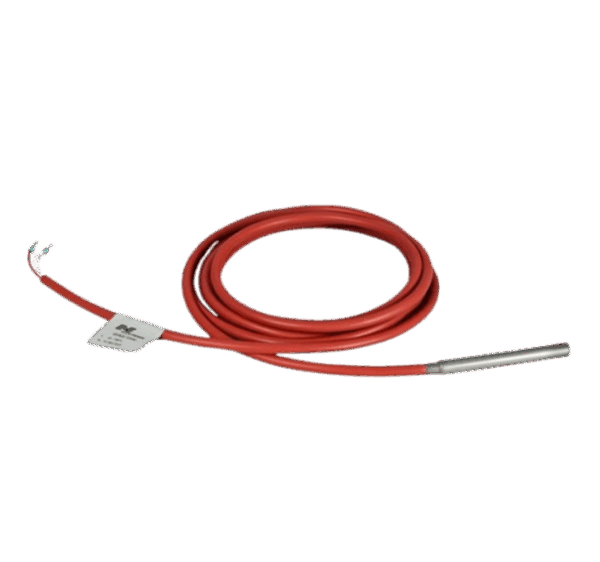

EE462 – Temperature Sensor with Passive Output
The EE462 is a robust and accurate temperature sensor tailored for HVAC and building control systems. Distributed by Instromart, it supports a wide range of passive sensing elements such as Pt1000 and NTC thermistors. With flexible mounting styles and a high protection rating, the EE462 is ideal for air ducts, heating pipelines, immersion applications, and other temperature-critical installations.
Specifications
| Measured Quantity | Temperature only. |
| Sensor Elements | Pt1000 (IEC Class B), NTC10k, NTC1.8k, Ni1000, others on request. |
| Operating Range | -60...180 °C (-76...356 °F) |
| Signal Output | Passive (resistance-based; no power supply required). |
| Electrical Connection | Terminal block for 2-wire or 3-wire configuration. |
| Mounting Variants | Duct-mount or immersion-style with optional sleeve. |
| Immersion Sleeve | Stainless steel sleeve with G½” process thread (optional). |
| Enclosure Protection | IP65 (for electronics housing). |
| Housing Material | Polycarbonate (flame retardant, UL94 V-0 rated). |
| Terminal Capacity | Max. 1.5 mm² wire via screw terminals. |
| Compliance | CE, RoHS compliant. |
Main Features
- Accurate Temperature Monitoring – Passive resistance-based sensing.
- Flexible Installation – Available for duct or immersion mounting.
- Multiple Sensor Types – Pt1000 (standard), NTC, Ni1000, and others.
- IP65-Rated Enclosure – Sealed housing for demanding environments.
- HVAC-Ready Design – Ideal for integration in heating, ventilation, and cooling systems.
- Easy Wiring Access – Screw terminal block for fast electrical connection.
- Optional Accessories – Mounting flanges and stainless steel sleeves available.
- Supports both two-wire and three-wire electrical connections for flexible installation.
- Supports integration into most BMS, DDC, and HVAC controllers.
- Durable housing with high ingress protection for indoor/outdoor use.
- Installation is made easier with available duct flanges and immersion fittings.
- Passive output enables long-term stability without recalibration.
- Designed for use in both air ducts and fluid systems.
Industrial Applications
- Ventilation and Air Handling Units – Air temperature sensing inside ducts.
- Boilers and Heat Pumps – Water temperature measurement via immersion.
- Building Automation Systems – Seamless integration into BMS, DDC, or PLCs.
- Energy Efficiency Projects – Accurate readings for heating and cooling optimization.
- Process Monitoring – Passive sensing in fluid pipelines and tank installations.
