EE371
$999.00
Optimize your humidity control with the EE371 Compact Dew Point Sensor—precision, reliability, and performance in one compact device.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

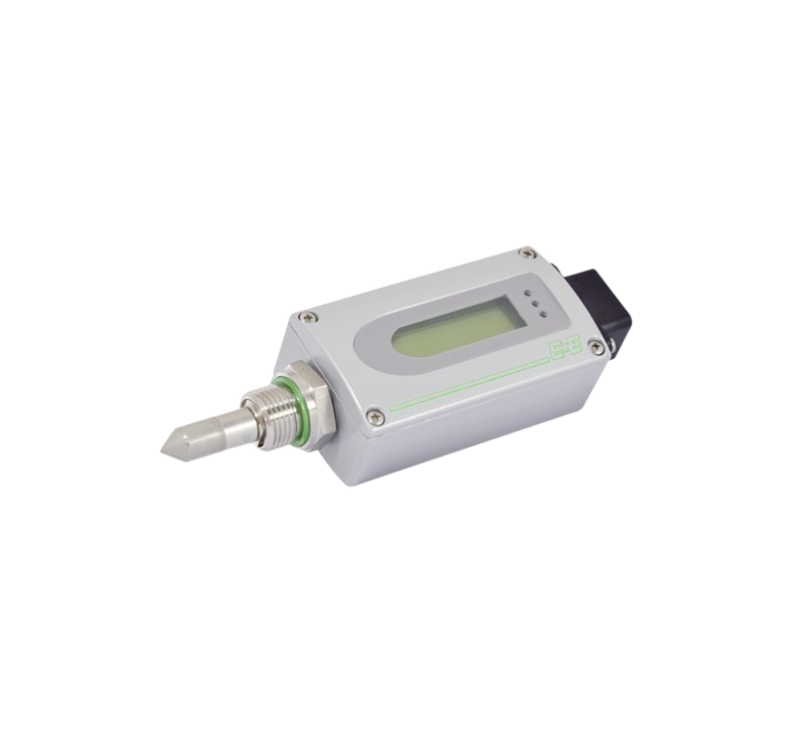

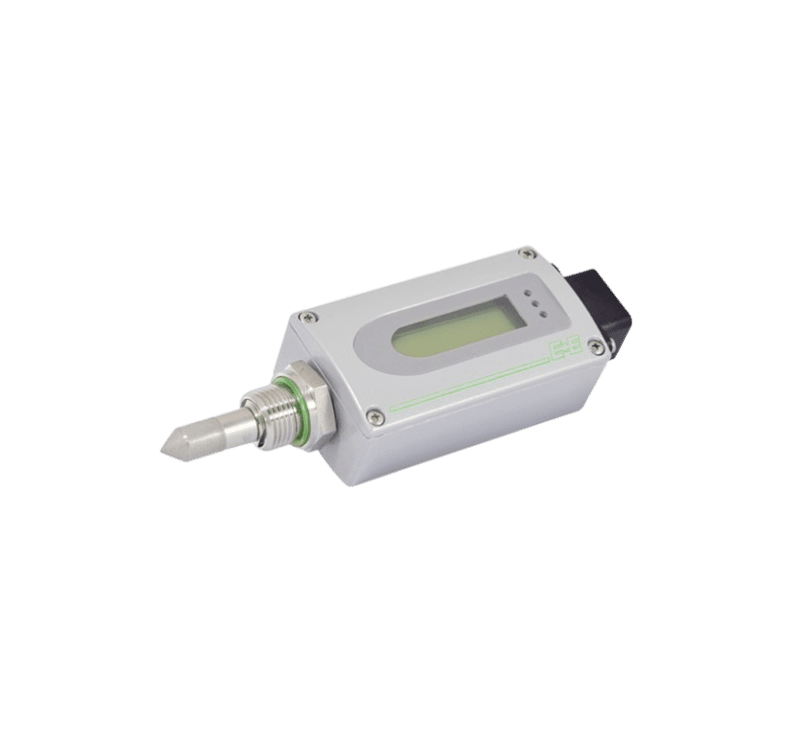

EE371 Compact Dew Point Sensor
EE371 Compact Dew Point Sensor – A high-precision, rugged moisture sensor designed for real-time dew point monitoring in industrial and lab environments. Its compact size, fast response, and reliable performance make it ideal for HVAC, compressed air, and pharmaceutical applications.
Specifications
| Measured Value | Dew point temperature (Td); Frost point (Tf) or Volume concentration (Wv) |
| Dew Point Range | –60 °C to +60 °C Td (–76 °F to +140 °F Td) |
| Dew Point Accuracy | ≤ ±2 °C Td (≤ ±3.6 °F Td) |
| Response Time (t90) | < 5 min for –5 °C → –50 °C Td; < 20 s for –50 °C → –5 °C Td |
| Volume Concentration Range | 20 to 200,000 ppm at 1 013 mbar. |
| Volume Concentration Accuracy | ±(5 ppm + 9 % of reading) at 20 °C and 1 013 mbar. |
| Analog Outputs | Two selectable channels: 0–10 V (IL < 1 mA), 4–20 mA (3-wire, RL < 500 Ω) |
| Supply Voltage | 15–30 V DC (Class III / Class 2 UL/CSA) |
| Current Consumption | Analog output: 40 mA (80 mA with calibration mode) |
| Pressure Rating | 0–20 bar (290 psi) or 0–100 bar (1450 psi) |
| Sensor Filter | Stainless steel sintered filter. |
| Operating Temperature (Media) | –40 °C to +70 °C |
| Operating Temperature (Electronics) | –40 °C to +60 °C; with display: –20 °C to +50 °C |
| Storage Temperature | –40 °C to +60 °C |
| Housing Material & Protection | Die-cast aluminum AlSi9Cu3; IP65 rating |
| EMC / Safety Compliance | EN 61326‑1, EN 61326‑2‑3, FCC Part 15 Class B, ICES‑003 Class B |
Main Features
- Pinpoint Accuracy : Measures dew point with ±2°C (±3.6°F) precision no second-guessing moisture level, Consistent readings even in fluctuating environments
- Self-Checking Smart Technology : Auto-calibration keeps performance sharp over time, No manual tweaking needed—saves you time and maintenance headaches.
- Built for High-Pressure Challenges : Perfect for compressed air systems and industrial gas monitoring, Handles up to 100 bar (1450 psi) without breaking a sweat.

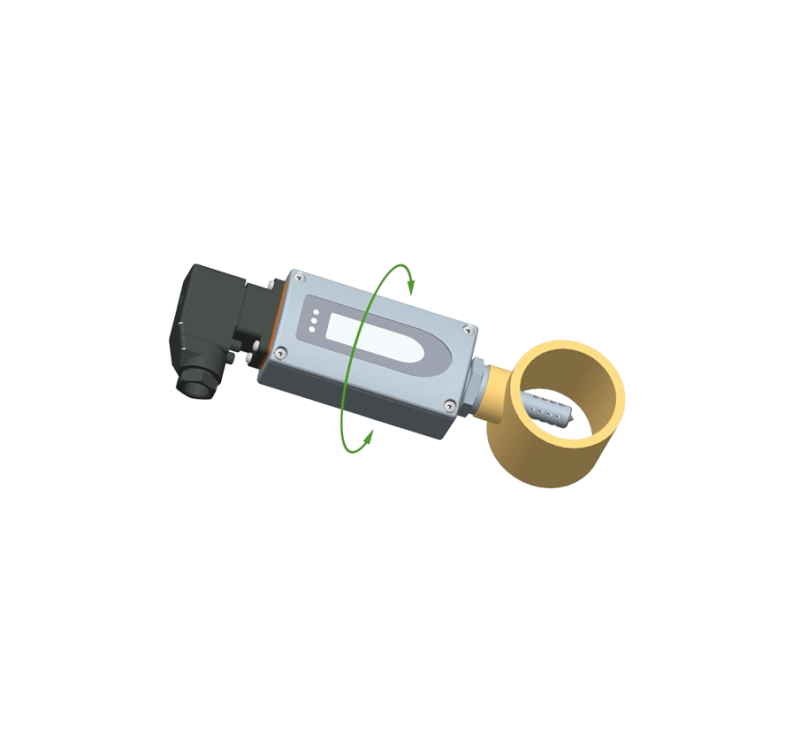

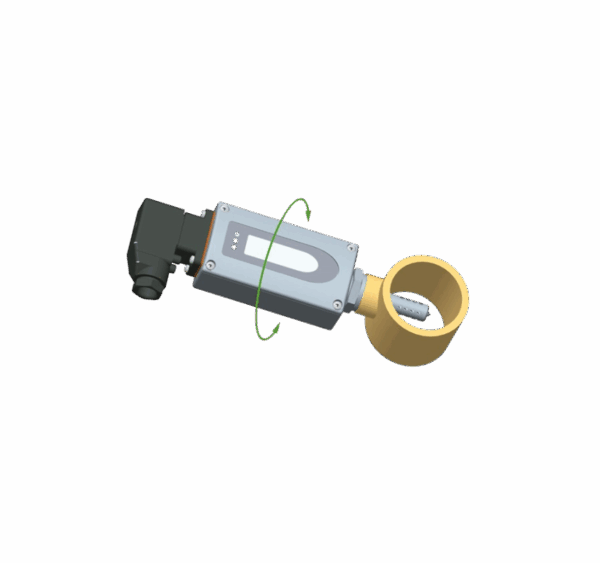

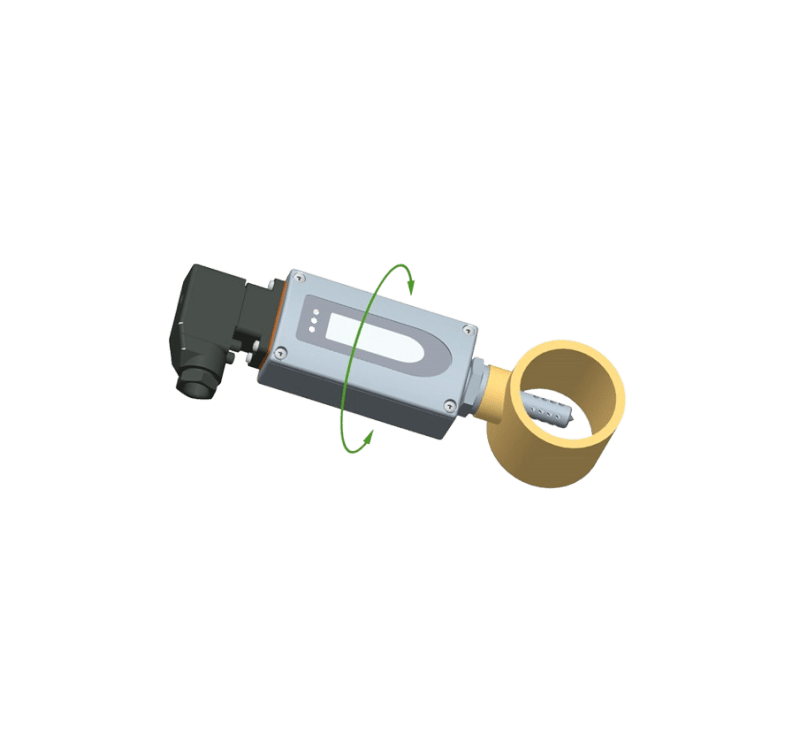

- 360° Swirling Sensor Design : Captures air samples from all directions for more representative readings, No need to reposition—gets accurate data no matter the airflow direction.
- Accuracy & Consistency : Measures dew point with exceptional precision (±2°C accuracy), Stable readings even in fluctuating environmental conditions.
- Low Maintenance : Minimal drift over time ensures long-lasting reliability, Resistant to contamination, reducing downtime.
Industrial Applications
- Keeping Buildings Comfortable & Safe.
- Critical Controlled Zones.
- Manufacturing Processes.
- Safety & Extraction.
- Keeping Filters Optimized.
