EE355
$999.00
Accurate EE355 durable dew point sensor for industrial drying processes.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

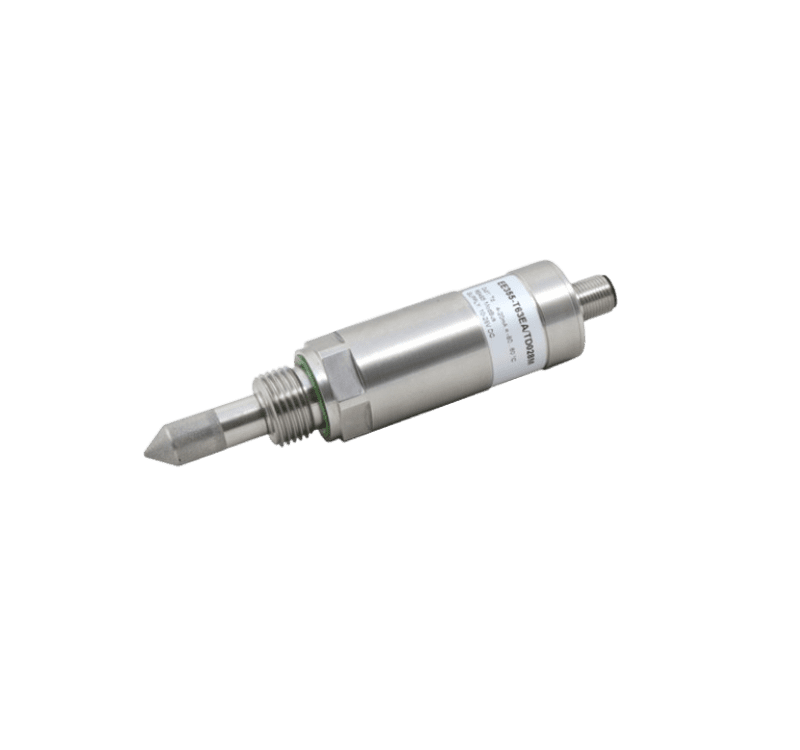

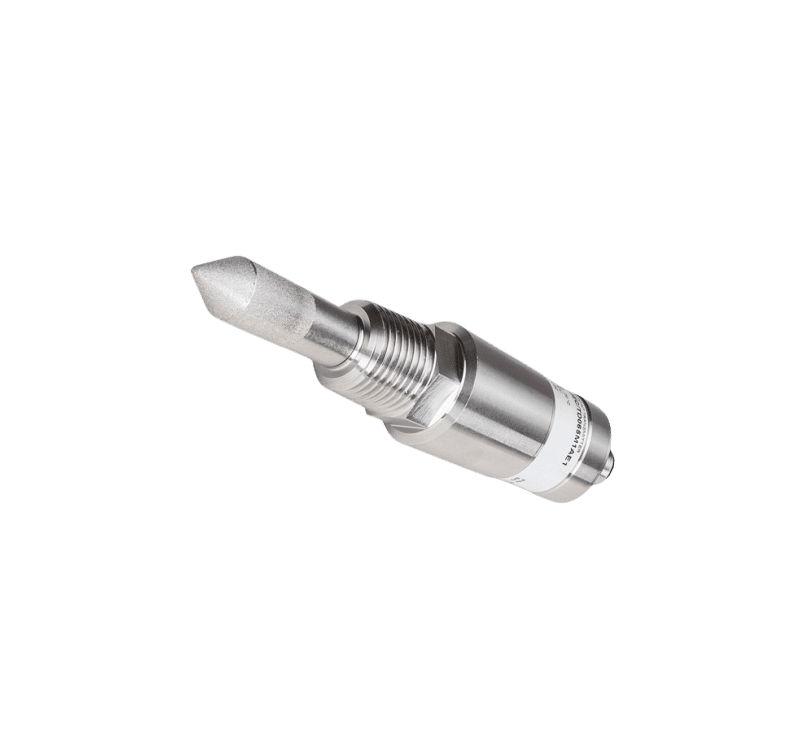

EE355 Dew Point Sensor for Industrial Drying Processes
Maintain optimal industrial drying with the EE355 Dew Point Sensor's precise moisture monitoring. This robust sensor, built to withstand tough environments, gives real-time dew point measurements, thus preventing costly moisture damage and keeping production efficient and without defects.
Specifications
| Measured Parameters | Dew point temperature (Td), Volume concentration (Wv) |
| Dew Point Measurement | -60 °C to +60 °C Td (-76 °F to +140 °F Td) |
| Accuracy (Dew Point) | ±2 °C Td (±3.6 °F Td) |
| Volume Concentration (Wv) | 20 to 200,000 ppm at 1013 mbar (14.7 psi) |
| Accuracy (Wv) | ±(5 ppm + 9% of measured value) at 20 °C (68 °F) and 1013 mbar |
| Output Signal | 4–20 mA analog (3-wire technology), RS485 (Modbus RTU) |
| Load Resistance | Max. 500 Ohm |
| Supply Voltage | 18 to 28 V DC |
| Electrical Connection | M12x1, 5-pin male connector |
| Sensor Filter | Stainless steel sintered filter (protection against dust/oil/water) |
| Housing Material | Stainless steel 1.4404 / AISI 316L |
| Protection Class | IP65 |
| Operating Pressure | 0 to 80 bar (0 to 1,160 psi) |
| Operating Temperature | -40 to +70 °C |
| Storage Temperature | -40 to +60 °C |
| Standards/Compliance | CE marked |
Main Features
● Resistant to chemical exposure in aggressive industrial settings.
● Self-calibrating function reduces downtime.
● Long lifespan with minimal servicing requirements.
● Monitors compressed air, drying ovens, and pneumatic systems.
● Ensures compliance with industry standards for moisture control.
● Intuitive interface with clear digital display.
● Customizable alarms for critical moisture thresholds
Industrial Applications
● Pharmaceuticals: Ensures moisture-free packaging and storage.
● Food & Beverage: Prevents spoilage by maintaining ideal drying conditions.
● Plastics Manufacturing: Reduces defects caused by excess humidity.
● Compressed Air Systems: Detects moisture to prevent equipment damage.
● HVAC & Industrial Dryers: Enhances efficiency by monitoring air quality.
