EE354
$999.00
The EE354 is the ideal solution for industries where precise moisture detection is non-negotiable.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

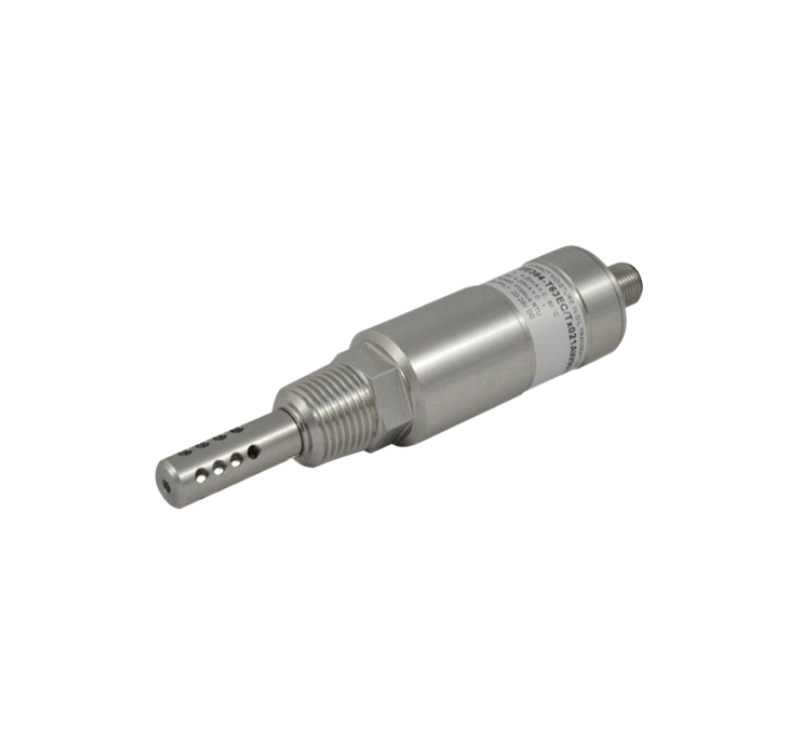

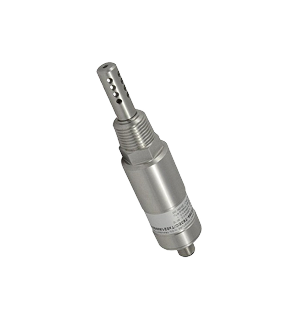

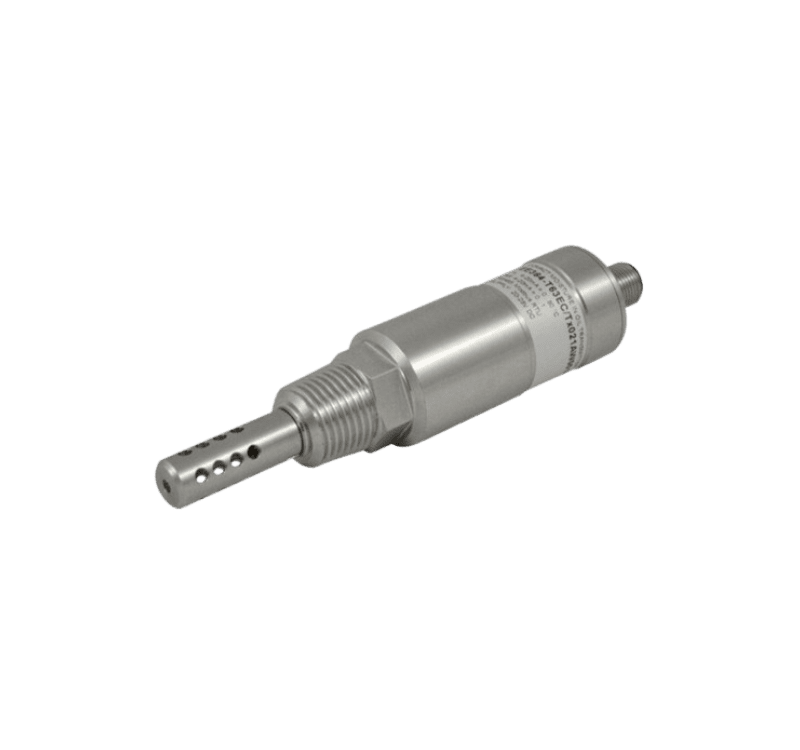

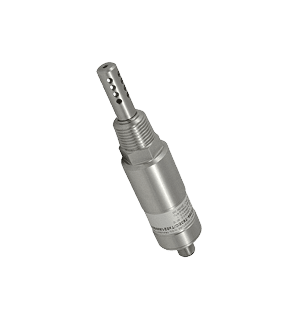

EE354 Dew Point Sensor Reliable Measurement Down to -20°C Td (-4°F Td)
Worried about moisture wreaking havoc in your industrial processes? The EE354 Dew Point Sensor gives you rock-solid moisture measurements even in freezing conditions down to -20°C (-4°F)—so you can stop estimating and start preventing costly humidity-related issues.
Specifications
| Measured Value | Dew Point Temperature (Td), Volume Concentration (Wv) |
| Measurement Range Dew Point Temperature (Td) | -20 °C Td to +50 °C Td (-4 °F to +140 °F) |
| Accuracy (Td) | ±1 °C Td (±1.8 °F Td) |
| Measurement Range Volume Concentration (Wv) | 1 250...125 000 ppm |
| Accuracy (Wv) | ±(50 ppm + 10 % of measured value) |
| Output Options | Analog: 4–20 mA 3 Wire Digital: RS485 (Modbus RTU) |
| Response Time (T90) | <30 seconds. |
| Operating Temperature | -40...+60 °C (-40...+140 °F) |
| Process Pressure Range | 0.01 to 20 bar (0.15 to 290 psi) |
| Probe Material | Stainless steel. |
| Electrical Connection | M12x1 5-pin male connector. |
| Supply Voltage | 10–28 V DC |
| Power Consumption | <20 mA |
| Protection Class | IP65 / NEMA 4 |
| Compliance | CE, RoHS |
Main Features
• Accuracy: Get reliable dew point readings in low-temperature conditions.
• Robust Construction: Built for durability in demanding industrial settings.
• Response Time: Quickly detects changes in moisture levels for real-time monitoring.
• Easy Integration: Compatible with most control systems for perfect installation.
• Maintenance: Long-lasting performance with minimal calibration needs.
• Ultra-Low Measurement: Catches moisture threats down to -20°C (-4°F) – perfect for freezer plants and cold storage.
• Industrial Toughness: Stainless steel warrior that laughs off corrosion, vibration, and 30 bar pressure.
• Plug-and-Play Smart Outputs: Delivers both 4-20mA and Modbus RTU signals simultaneously – no adapters needed.
• Maintenance-Free Operation: 5+ years of set-and-forget reliability with self-diagnosing smarts.
• Critical Failure Prevention: Instant moisture spike alerts prevent compressor blowouts and ruined product batches.
Industrial Applications
● Compressed Air Lines: Stops water from pooling in your air dryers and wrecking tools.
● Pharma & Food Production: Keeps drying processes bone-dry to meet strict regulations.
● Plastics & Electronics: Prevents foggy molds or fried circuits from humidity.
● Cold Storage & HVAC: Alerts you before condensation turns into ice or mold outbreaks.
