EE310
$999.00
The EE310, distributed by Instromart is a high-accuracy transmitter built for advanced humidity, temperature, and calculated climate parameter monitoring in industrial and HVAC systems.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.
EE310 – Advanced Industrial Humidity and Temperature Transmitter with In-House Capacitive Sensor Technology

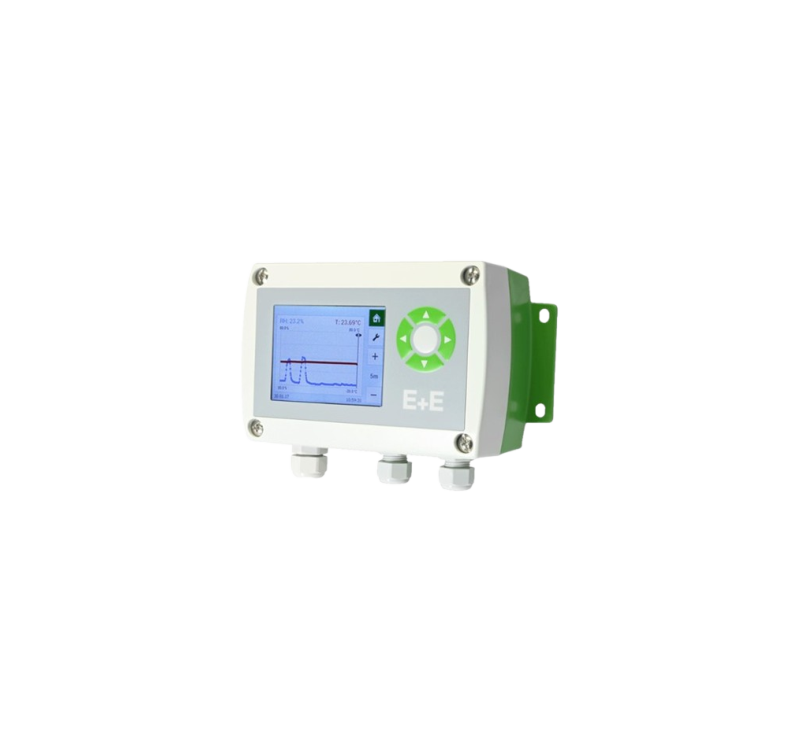

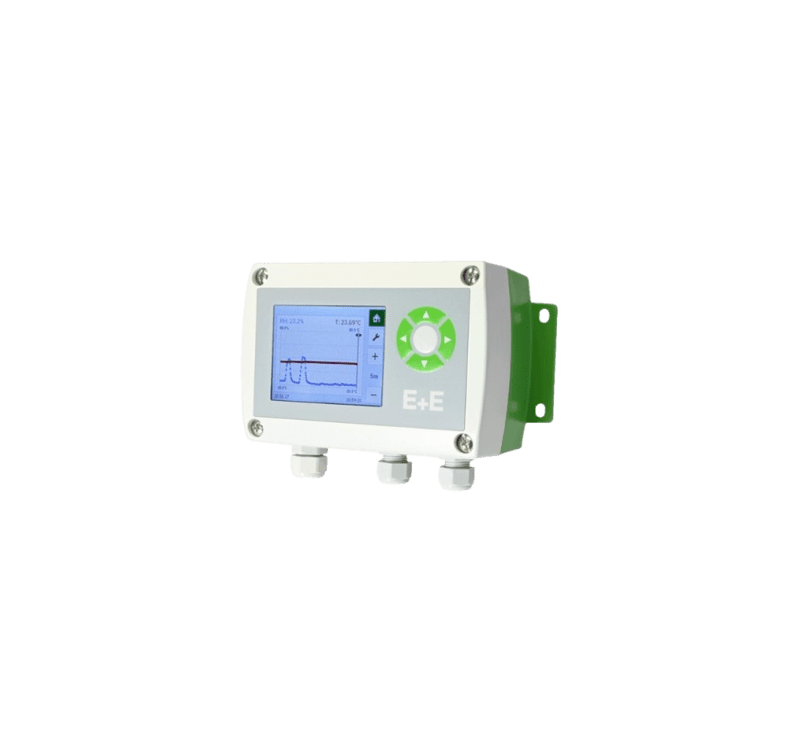

The EE310 is a high-accuracy transmitter built for advanced humidity, temperature, and calculated climate parameter monitoring in industrial and HVAC systems. It features a 3.5-inch color touchscreen for easy setup, real-time display, and data analysis, along with flexible analog and digital outputs to integrate smoothly into automation and monitoring environments.
Specifications
| Measured Values | Humidity, temperature, dew point, frost point, enthalpy, mixing ratio, absolute humidity. |
| Humidity Accuracy | ±1.3 % RH (10–90 % RH) |
| Temperature Accuracy | ±0.1 °C (model dependent). |
| Output Signals | 2 × analog: 0–10 V or 4–20 mA; digital: Modbus RTU / BACnet MS/TP. |
| Display | 3.5" color touchscreen with multilingual interface. |
| Sensor Module | Replaceable, factory-calibrated. |
| Logging Function | Stores up to 20,000 values with timestamp. |
| Configuration | Touchscreen menu or USB via PC software. |
| Power Supply | 24 V AC/DC. |
| Operating Temperature | -80 °C to +180 °C (probe dependent). |
| Enclosure Protection | IP65 / NEMA 4 (housing-specific). |
| Compliance | CE, UKCA, FCC, IC, RCM certified. |
Main Features
- Simultaneous measurement of humidity and temperature.
- Vibrant 3.5″ touchscreen shows current readings, warnings, and graphical trends.
- Offers both analog signals (0–10 V / 4–20 mA) and digital communication via Modbus RTU or BACnet MS/TP.
- Configurable output scaling, alarms, and settings via USB or touchscreen.
- Sensor modules pre-set at the factory to simplify rapid, calibration-free changes.

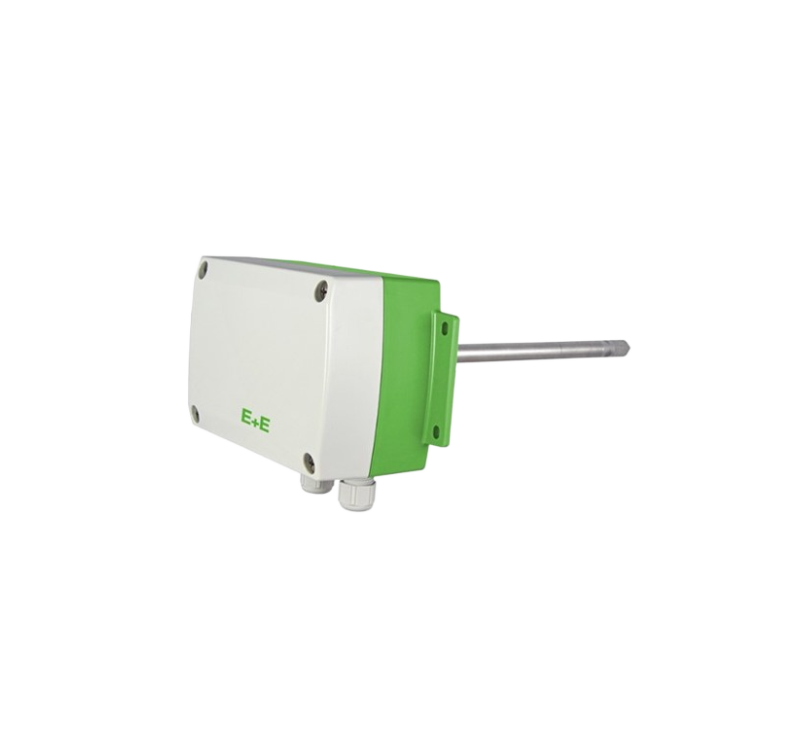

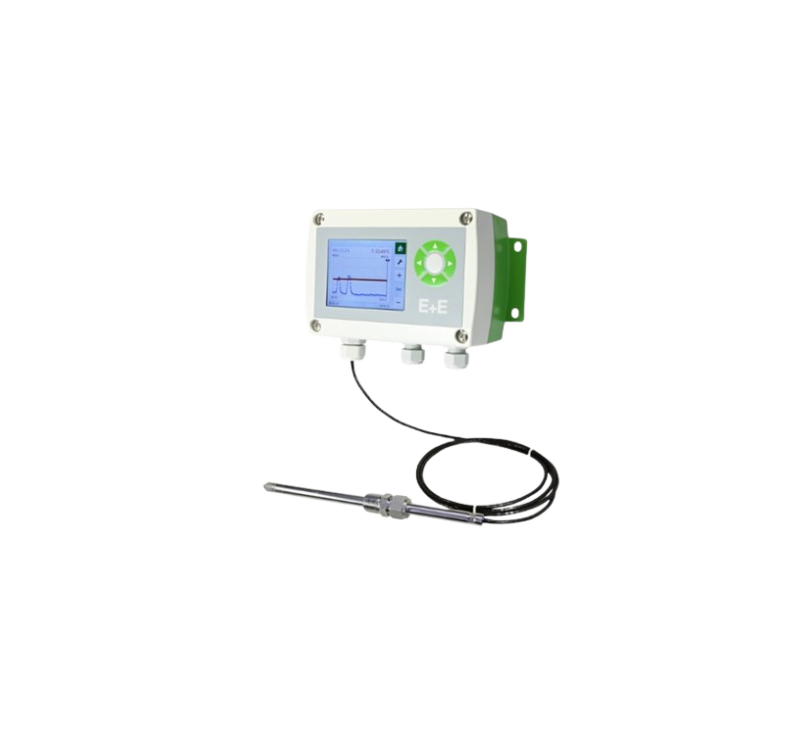

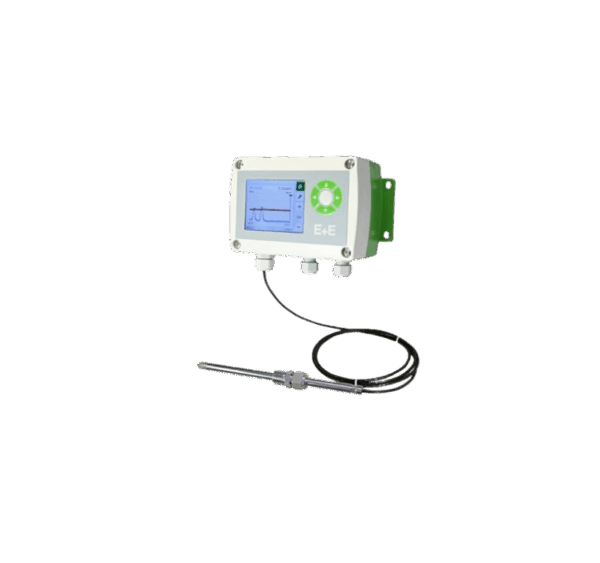

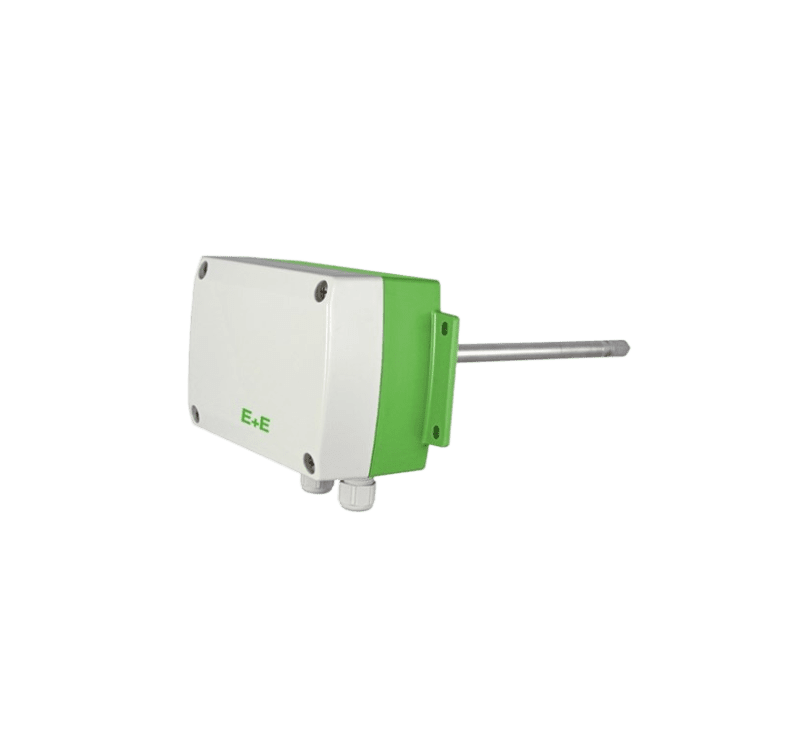

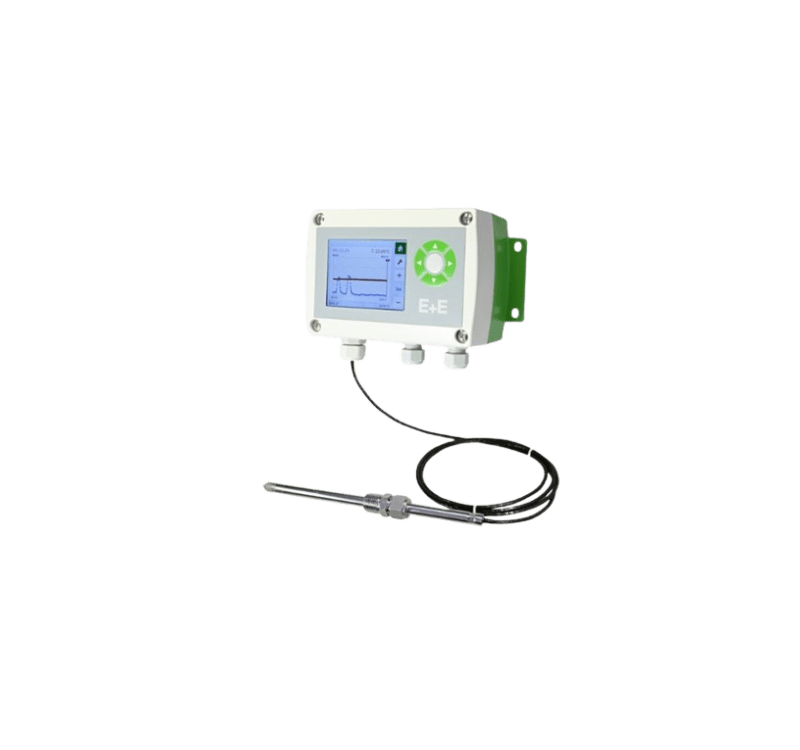

- Mounting versatility – choose between wall-mounted, duct-mounted, or remote sensing units.
- Wide temperature operating range: from -80 °C to +180 °C depending on probe type.
- Logs up to 20,000 measurements with accurate date and time stamps for tracking.
- Interactive 3.5″ color interface for real-time monitoring, alarm status, and historical trends.
- Versatile output configurations supporting multiple analog and digital interfaces.
- Highly stable and accurate measurements over long periods.
- Captures and graphs up to 20,000 readings directly on the touchscreen.
- Designed for easy integration with wall-mounted, duct-mounted, or external probe setups.
Industrial Applications
- Cleanrooms and Pharma Facilities – Stable climate monitoring for compliance and control.
- HVAC and Climate Systems – Supports smart control of temperature and humidity.
- Food & Beverage Industry – Ensures safe and consistent storage and processing conditions.
- Environmental Test Chambers – Delivers dependable climate data for research and QA.
- Industrial Automation – Integrates into monitoring systems for long-term reliability.
