EE260
$999.00
The EE260 features a heated sensing element and probe, ensuring reliable humidity and temperature measurement in high humidity and condensing environments.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

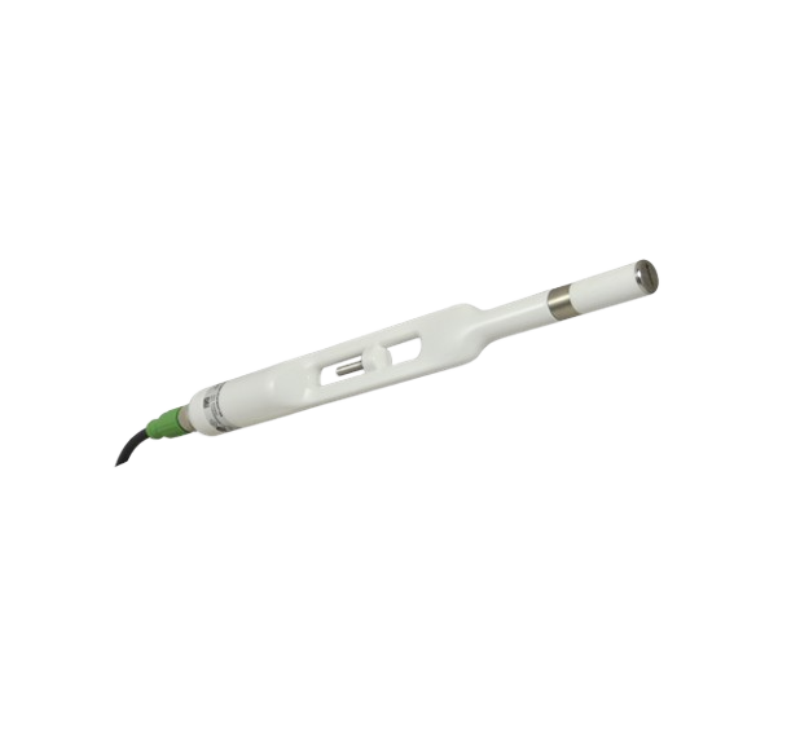

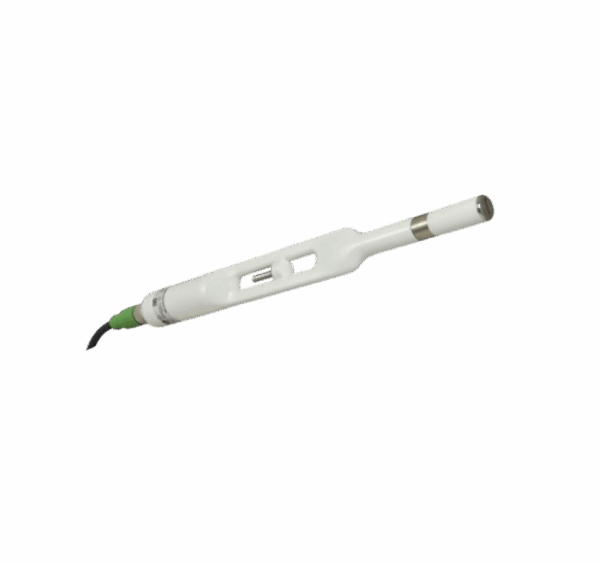

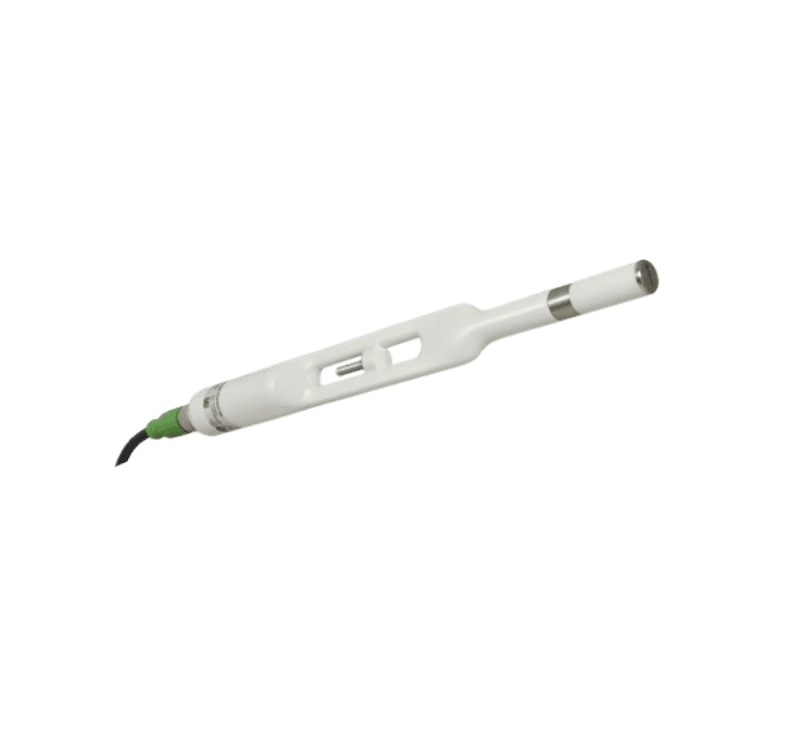

EE260 Heated Humidity and Temperature Probe

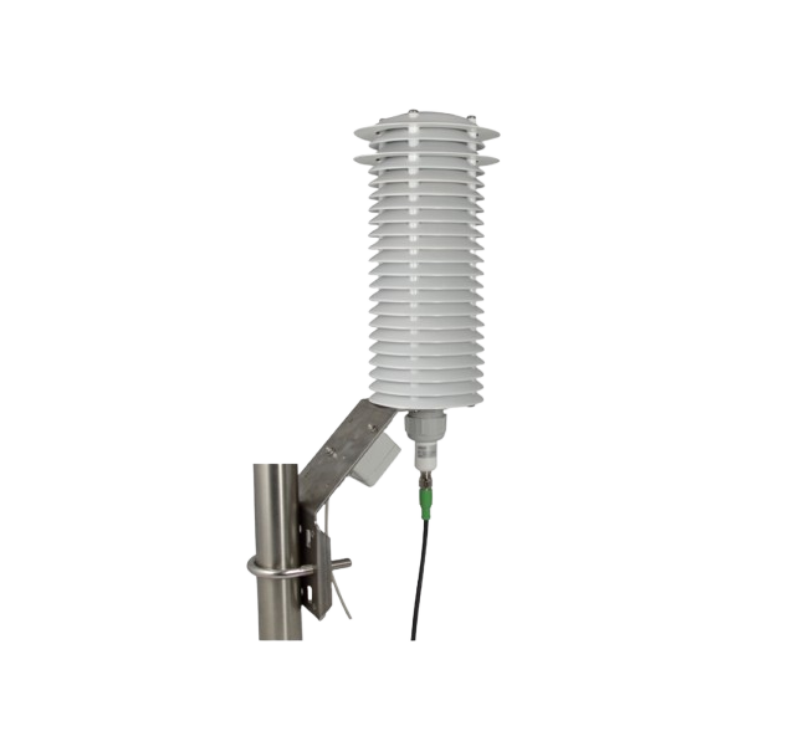

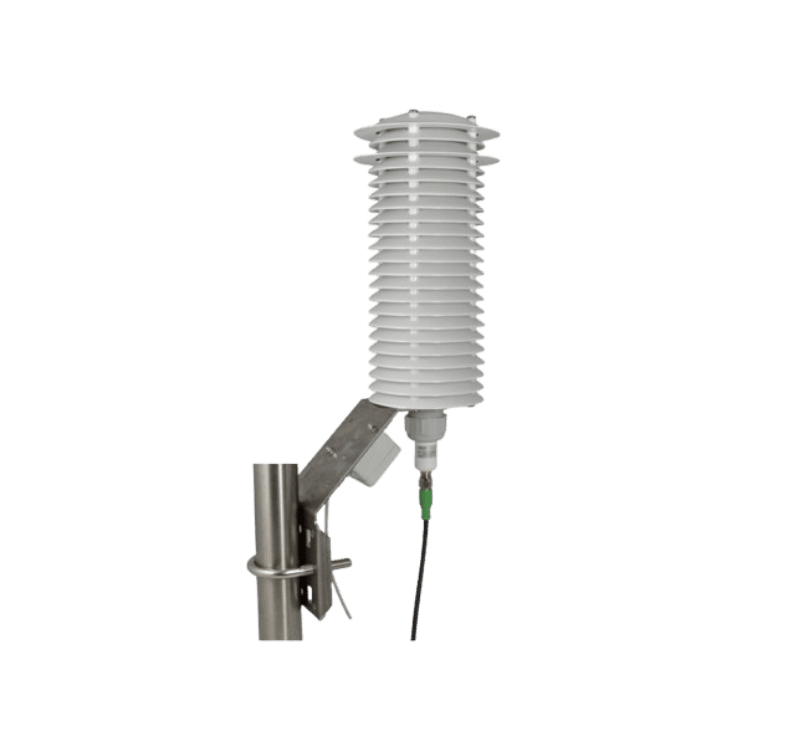

The EE260 probe is optimized for accurate and reliable relative humidity (RH) and temperature (T) measurement in meteorology and demanding outdoor applications. It features a compact design with a heated humidity sensing head and an integrated temperature sensor, ensuring compatibility with radiation shields and reliable performance in harsh environments.
Specifications
| Relative Humidity Range | 0...100 %RH |
| RH Accuracy | ±(1.3 + 0.3 % * mv) %RH (≤90%), ±2.0 %RH (≥90%) |
| Temperature Range | -60...+60 °C |
| Temperature Accuracy | High accuracy; response time ≤ 20 s. |
| Protection | IP67, UV resistant, thermoplastic elastomer housing. |
| Outputs | 2x Analogue (0–1 V, 0–2.5 V, 0–5 V, 0–10 V), RS485 with Modbus RTU |
| Power Supply | 7–30 V DC, typ. 300 mW |
| Digital Interface | RS485 with Modbus RTU, up to 115200 Baud. |
| Operating Conditions | -60...+60 °C, 0...100 %RH |
| Software | PCS10 Product Configuration Software (free) |
Main Features
• Heated RH and T sensing elements
• Dual heating system for condensation prevention
• Calculation of multiple humidity-related quantities
• E+E proprietary sensor coating for extended sensor life
• Fully encapsulated electronics with IP67 rating
• RS485 interface with Modbus RTU and configurable analogue outputs
• User configurable via PCS10 software
• Compact, UV-resistant enclosure
• Flexible thermoplastic elastomer construction
• M12x1 stainless steel connector
• Fast response times for both RH and T
• Long-term stability in dusty, dirty, or oily environments
Industrial Applications
• Meteorological weather stations
• Environmental monitoring systems
• Offshore and coastal weather measurement
• Industrial HVAC and climatology systems
• Remote sensing and research stations
