EE220
Available on backorder
-
The EE220, distributed by Instromart the system is designed for easy installation, maintenance, and calibration, making it ideal for demanding industrial applications.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

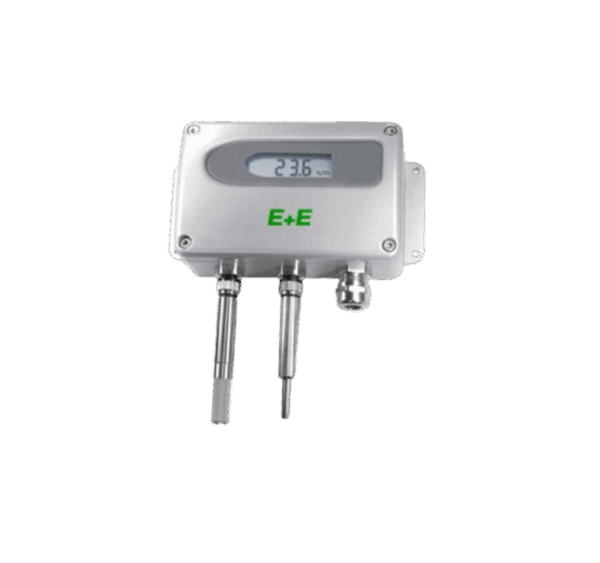

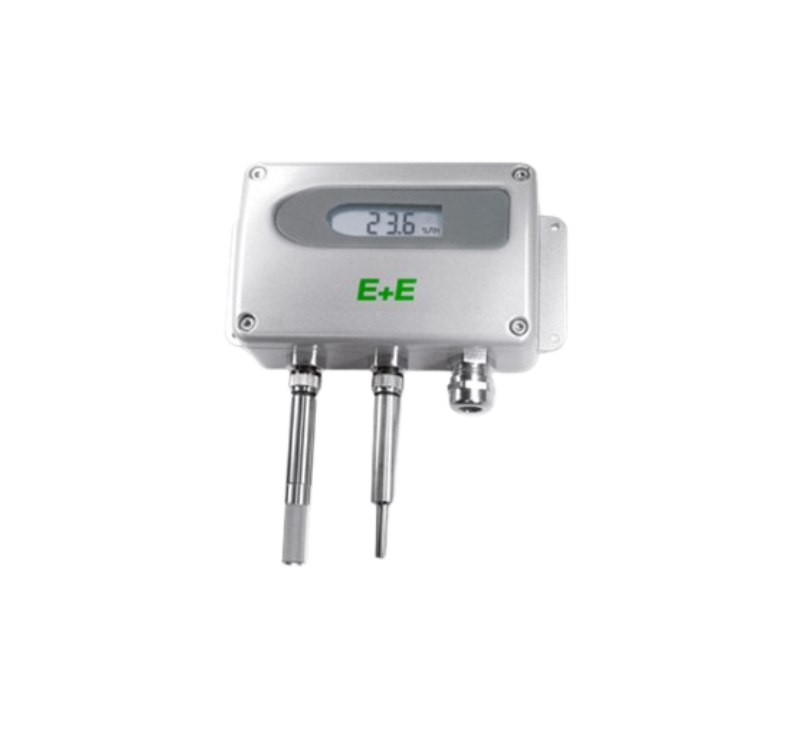

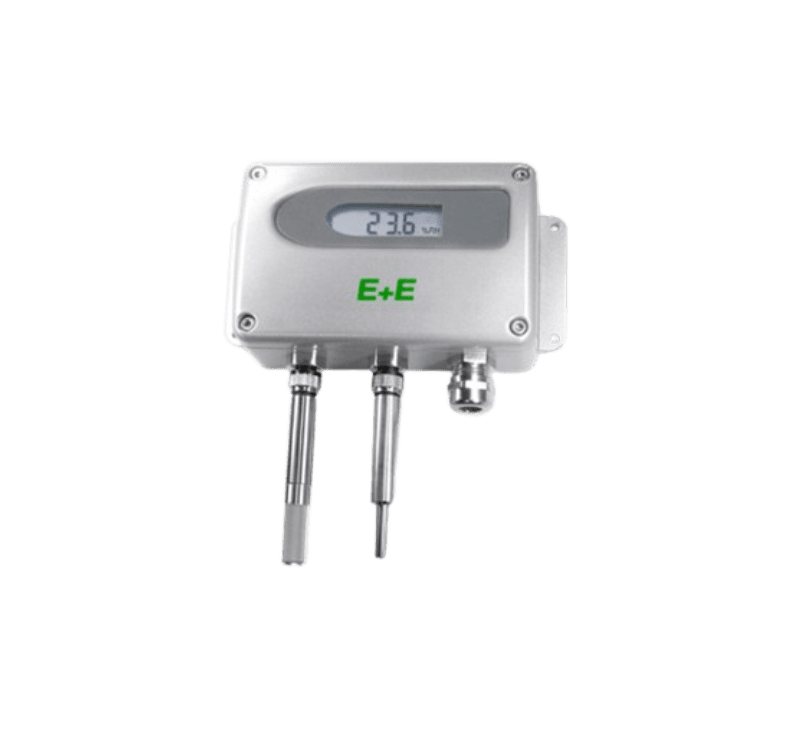

EE220 - Humidity and Temperature Sensor
The EE220 is an innovative and modular humidity (RH) and temperature (T) sensor system. It includes a central unit paired with easily replaceable, plug-in probes, delivering excellent flexibility and precise measurement performance. The system is designed for easy installation, maintenance, and calibration, making it ideal for demanding industrial applications.
Specifications
| Humidity Range | 0...100 %RH |
| Temperature Range | -40...+80 °C (-40...+176 °F) |
| Output Signals | 0-1 V, 0-10 V, 4-20 mA (2-wire) |
| Power Supply | 10-35 V DC / 9-29 V AC |
| Current Consumption | 10 mA (DC), 20 mA (AC) |
| Enclosure Material | Polycarbonate / Aluminium die-cast. |
| Protection Class | IP65 / NEMA 4(X) |
| Operating Conditions | -40 to +60 °C (without display), 0-95 %RH non-condensing. |
| Mounting Options | Wall, rail, or duct mount. |
| Cable Connection | M12, max 10 m |
Main Features
- Modular design with interchangeable probes.
- Comes with enclosure options in rugged polycarbonate or durable die-cast aluminum.
- Easy field calibration and adjustment.
- Configurable output options (voltage or current).
- Optional display for real-time monitoring.
- Loop calibration compatible.
- IP65 / NEMA 4X protection class.
- Temperature range: -40 to +80 °C.
- Humidity range: 0 to 100 %RH.
- Offered with enclosures made from polycarbonate or die-cast aluminum for enhanced durability.
- M12 connection with cables up to 10 meters.
Industrial Applications
- Pharmaceutical and food processing industries.
- Clean room environments.
- HVAC systems and building automation.
- Environmental chambers and calibrators.
- Industrial process control and monitoring
