EE211 Humidity & Temp Sensor
$999.00
Tired of sensors that fail in steamy conditions? The Humidity and Temp Sensor EE211 thrives where others quit—delivering rock-solid accuracy in 100% humidity, condensing environments, and extreme temps (-40°C to +60°C).
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

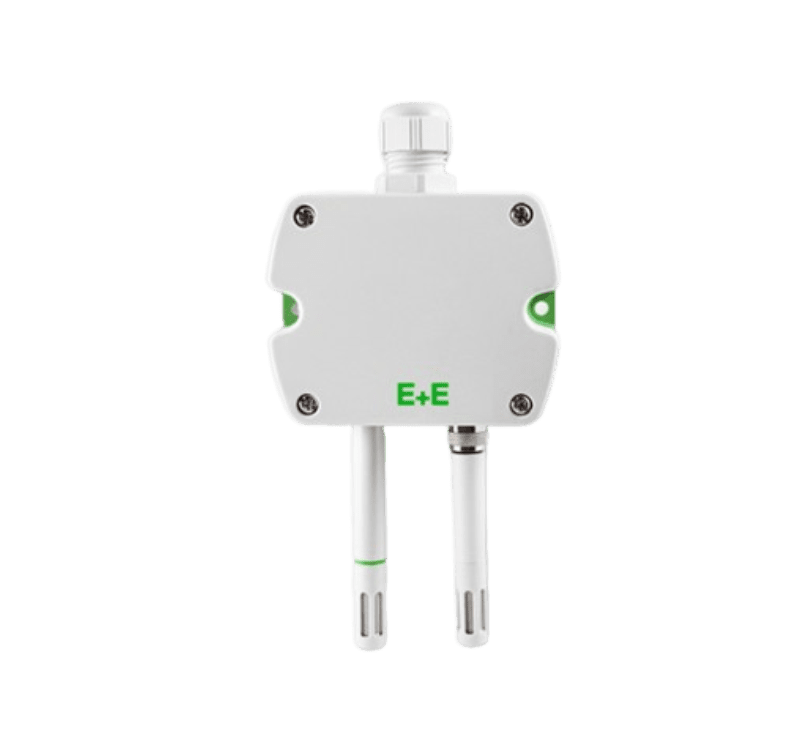

EE211 Humidity and Temp Sensor
The heated sensing element eliminates drift, and the industrial-grade (IP65/NEMA4X) casing is dust, water, and corrosion resistant. Perfect for food processing, HVAC, and harsh industrial applications. Set it and forget it. Measure Humidity and Temperature with EE211.
Specifications EE211
| Measured Parameters | Relative Humidity (RH) and Temperature (T) – heated RH probe, interchangeable T probe (epluse.com). |
| Humidity Measuring Range | 0…100 % RH. |
| Humidity Accuracy (–5 to +30 °C) | ±(1.3 + 0.007 × RH %RH) for RH ≤ 90 % at 20–30 °C; ±3 % RH for RH > 90 % or outside that temp range. |
| Temperature Measuring Range | –40 to +60 °C (–40 to +140 °F). |
| Temperature Accuracy | ±0.2 °C at 20 °C. |
| Heated Sensing Head | Prevents condensation, extends sensor stability in high humidity. |
| Analogue Outputs | 0–5 V / 0–10 V or 0–20 mA / 4–20 mA (3 wire). |
| Digital Interface | RS485 with Modbus RTU; displays up to 3 parameters (if equipped). |
| Power Supply | 15–35 V DC or 24 V AC ±20%. |
| Current Consumption | • Voltage version: ~13 mA (without display) / ~19 mA (with display). • Current version: ~34 mA / ~40 mA (with display). • Digital: ~8 mA / ~17 mA. |
| Ambient Operating Temperature | –40 to +60 °C without display; –20 to +50 °C with display. |
| Storage Temperature | –40 to +60 °C (electronics). –20 to +60 °C (with display). |
| Enclosure Rating | IP65 / NEMA 4X (polycarbonate housing). |
| Configuration | Configurable via USB-C stick and PCS10 software; supports RH/T adjustment. |
Main Features
- Easy Mounting: External holes for fast installation anywhere.
- 3-Parameter Display: See temp, humidity & more at a glance.
- IP65/NEMA4X Tough: Survives dust, water jets & harsh environments.

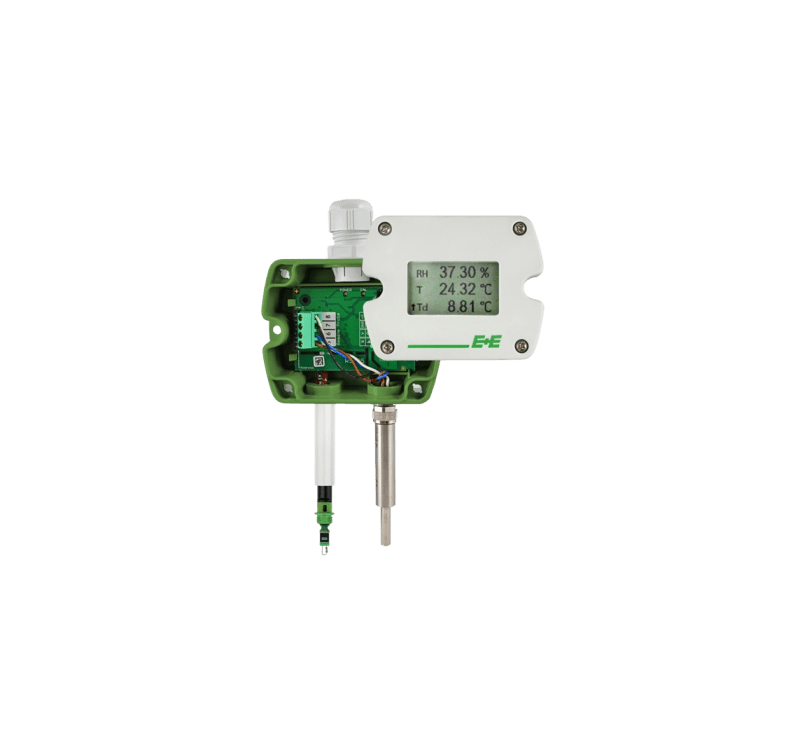

- Shockproof Design: Bottom-mounted electronics prevent damage during installation.
- Condensation-Proof: Cast electronics resist moisture damage.
- Heated Sensor: Maintains accuracy in 100% humidity.

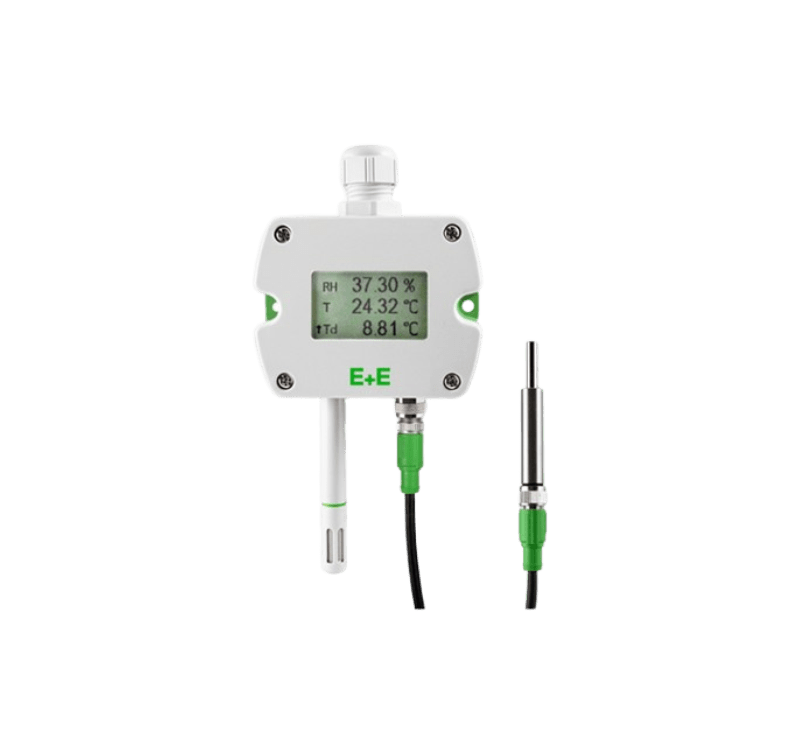

- Optional Probe: Add an external temp sensor for hard-to-reach spots.
- Easy-Clean Surface: Smooth cover prevents dust buildup.
- Built for real-world industrial challenges, where other sensors fail.
Industrial Applications
- HVAC/R systems: Maintain ideal climate control in malls, hospitals, and data centers.
- Food & beverage: Ensure compliance with hygiene standards in production/storage.
- Pharmaceuticals: Protect sensitive products in labs and warehouses.
- Agriculture: Monitor greenhouses, poultry farms, and mushroom cultivation.
- Water treatment: Control humidity in tanks and processing areas.
