EE210
$999.00
The EE210, offered by Instromart, stands out with its high-precision sensing technology, purpose-built for reliable performance in critical climate control environments.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

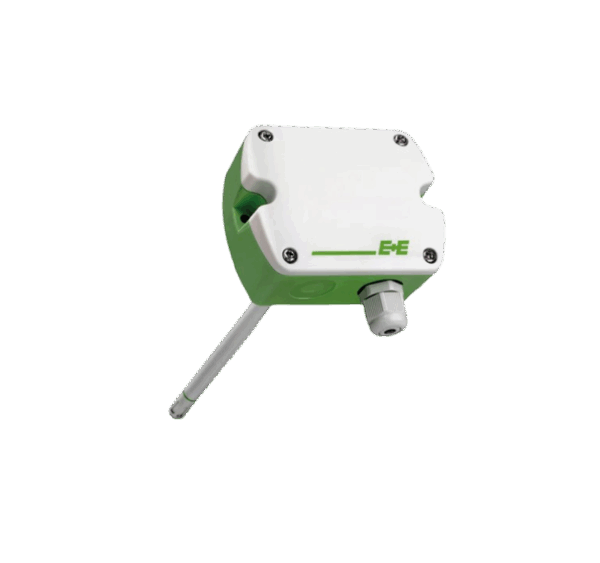

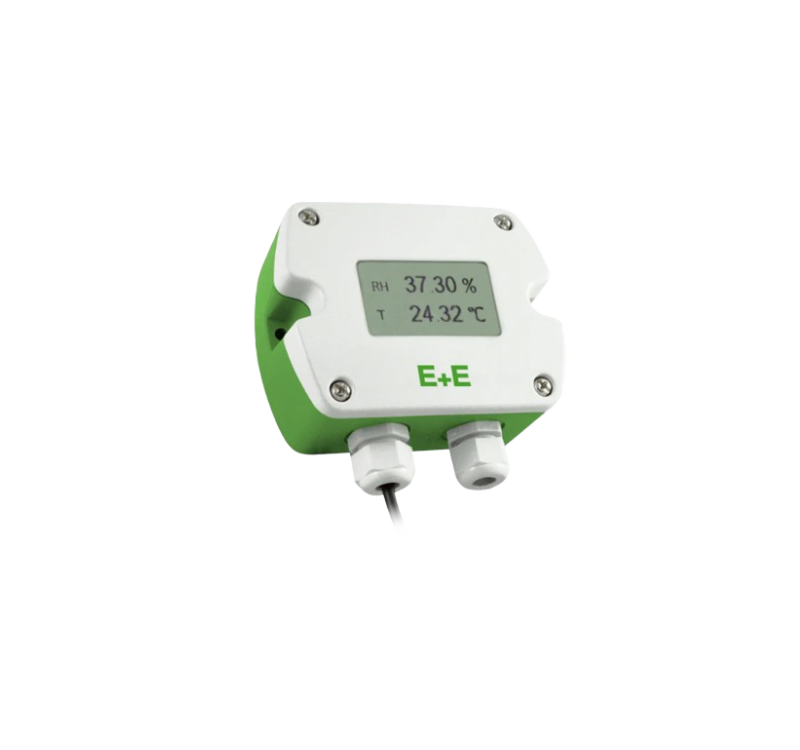

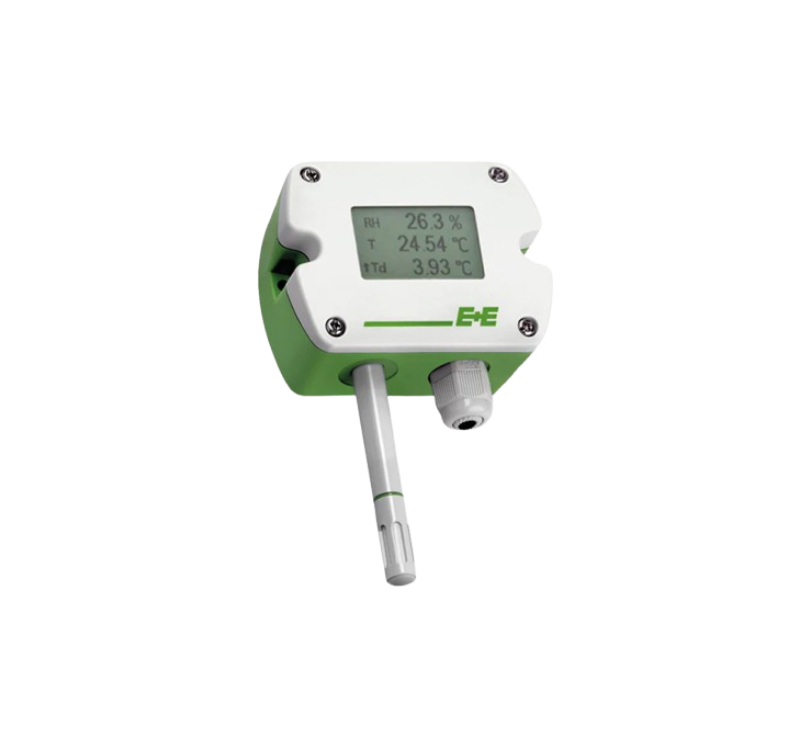

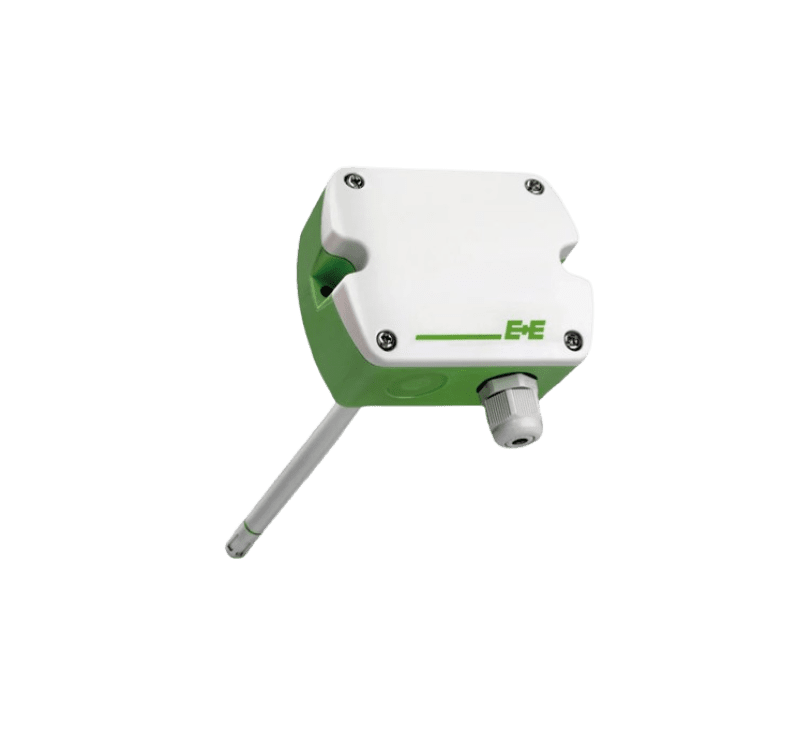

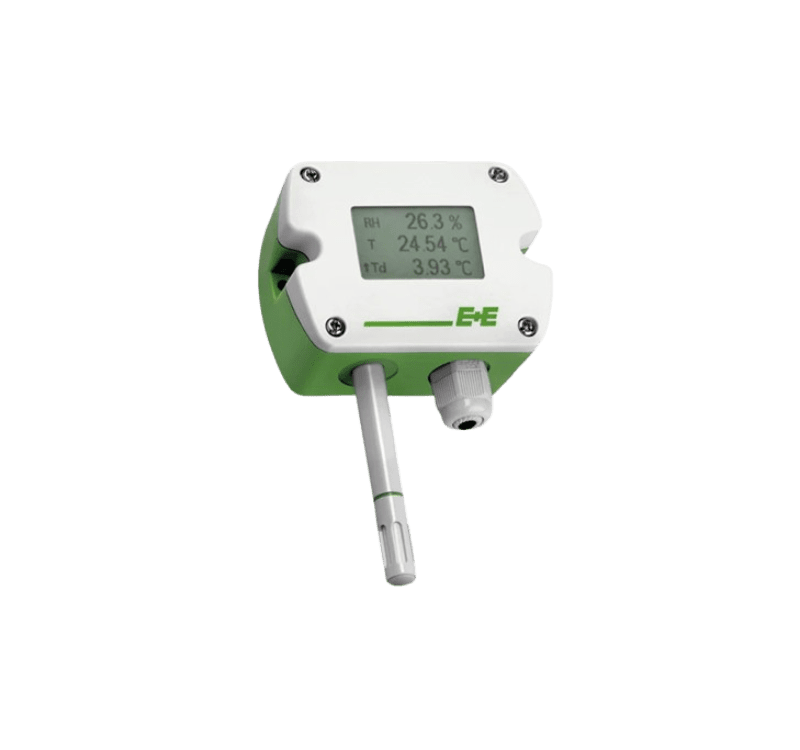

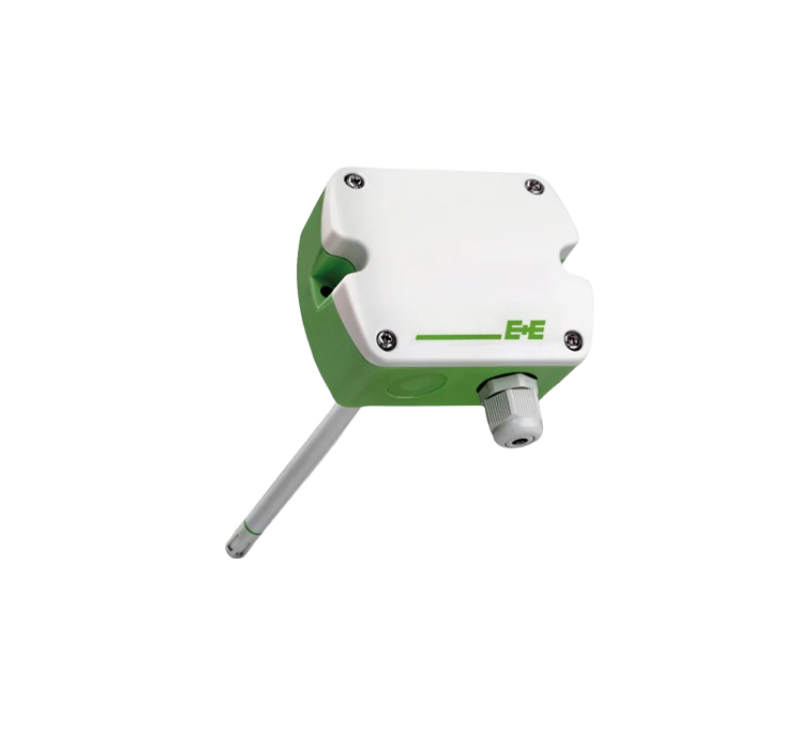

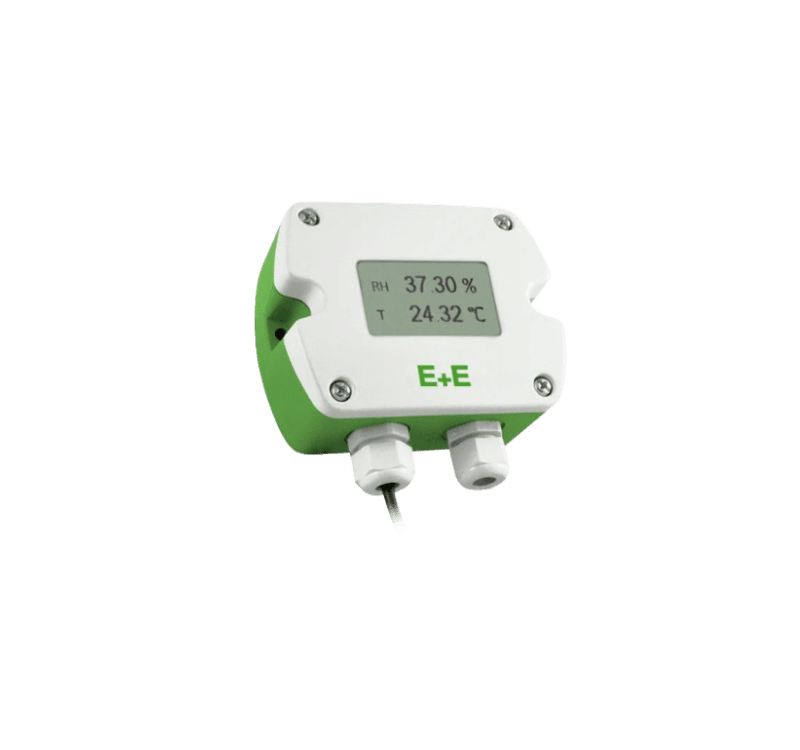

EE210 Humidity and Temperature Sensor for Demanding Climate Control
Most climate sensors promise accuracy but fail when it counts. The EE210 Humidity and Temperature Sensor for Demanding Climate Control is different. Built for facilities managers, engineers, industrial and commercial applications, this robust sensor delivers real-time data to optimize climate control systems, ensuring ideal conditions for sensitive equipment and processes.
Specifications
| Measured Quantities | Relative Humidity (RH), Temperature (T); Optional: Dew Point, Frost Point, Absolute Humidity, Mixing Ratio, Wet Bulb, Water Vapor Pressure, Specific Enthalpy. |
| Humidity Range | 0 – 100 % RH (non‑condensing). |
| Humidity Accuracy (Wall/Duct Types T1, T2) | –15 to +40 °C ≤90 % RH: ±(1.3 + 0.003×RH) % RH –15 to +40 °C >90 % RH: ±2.3 % RH –40 to +60 °C: ±(1.5 + 0.015×RH) % RH |
| Humidity Accuracy (Remote Probe T3) | ±2.5 % RH at 20 °C |
| Temperature Range | –40 to +80 °C (–40 to +176 °F) |
| Temperature Accuracy | ±0.2 °C at 20 °C (±0.36 °F) |
| Analog Outputs | 0–5 V or 0–10 V (IL < 1 mA); 4–20 mA (two-wire, RL ≤ 500 Ω); 0–20 mA three-wire option. |
| Digital Interface | RS485 with Modbus RTU protocol; baud rates 9 600 / 19 200 / 38 400; float/INT16 data. |
| Supply Voltage | Analog: 15–35 V DC or 24 V AC ±20%; Current loop: 10 V + RL×20 mA < V+ < 30 V DC (24 V ± 10 % for T13). |
| Current Consumption | Voltage output: ~3.3 mA DC; with display ~3.6 mA DC; Current versions up to 40 mA DC; Digital interface ~5 mA DC. |
| Response Time (t₆₃) | ~15 s (dependent on filter and airflow). |
| Protection & Coating | Sensor protected with E+E proprietary coating; electronics encapsulated inside probe. |
| Housing & Mounting Options | IP65 / NEMA 4X polycarbonate enclosure; wall, duct, remote, or outdoor (T13). |
| Display (optional) | 1–3 line LCD, configurable with backlight; displays up to 3 parameters. |
| Connection | Screw terminals (max 1.5 mm²); cable gland M16×1.5. |
| Approvals | CE, RoHS; EMC: EN 61326‑1 / EN 61326‑2‑3; FCC Part 15 Class A / ICES‑003 Class A. |
Main Features
- 3 installation types – wall, duct, or remote probe.
- Custom outputs – switch between 0- 10V or 4- 20mA.
- Modbus ready – plugs right into modern systems.
- Optional display – see readings at a glance.
- Accuracy – stays precise over time.
- Temperature-proof – works in extreme heat/cold.
- Dirt & condensation-proof – handles tough environments.
- Durable – survives impacts and chemicals 3-minute setup – tool-free magnetic or threaded mount.
- Accurate: Unlike other sensors that drift, this one holds its calibration for years.
- Install easily: Magnetic base + 1/2” NPT thread means you’re done in 3 minutes.
- Eats less power: Sips electricity so you can run it 24/7 without worrying about your power bill.
- Survives winter: -40°C rating means Canadian winters won’t kill it.
Industrial Applications
- Food warehouses: Keep USDA inspectors happy with perfect chill room logs.
- Pharma storage: No more scrambling when the FDA shows up unannounced.
- Server rooms: Prevent six-figure downtime from overheating.
- Greenhouses: Dial in perfect VPD for faster plant growth.
- Museums: Protect irreplaceable art from humidity damage
