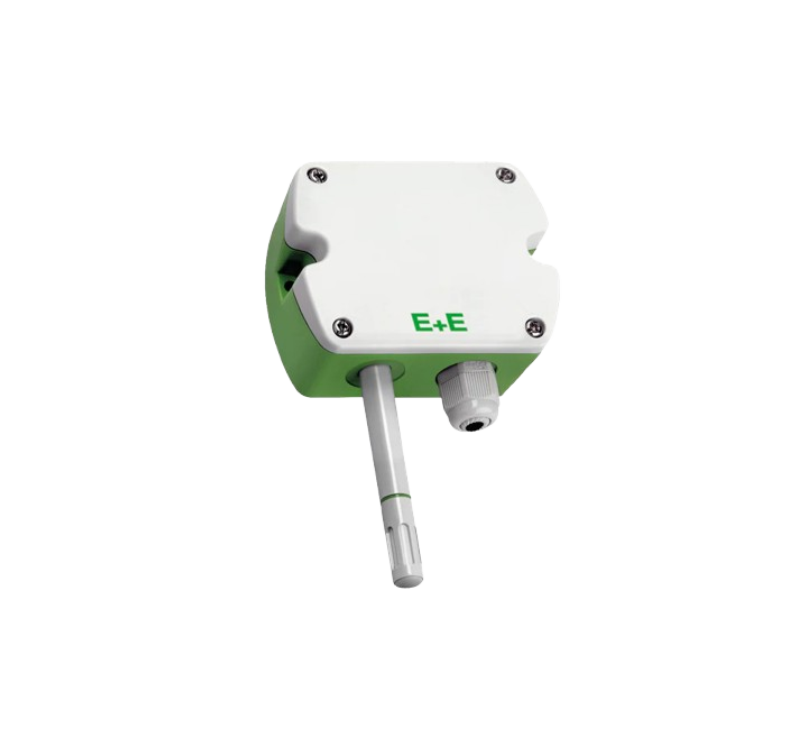

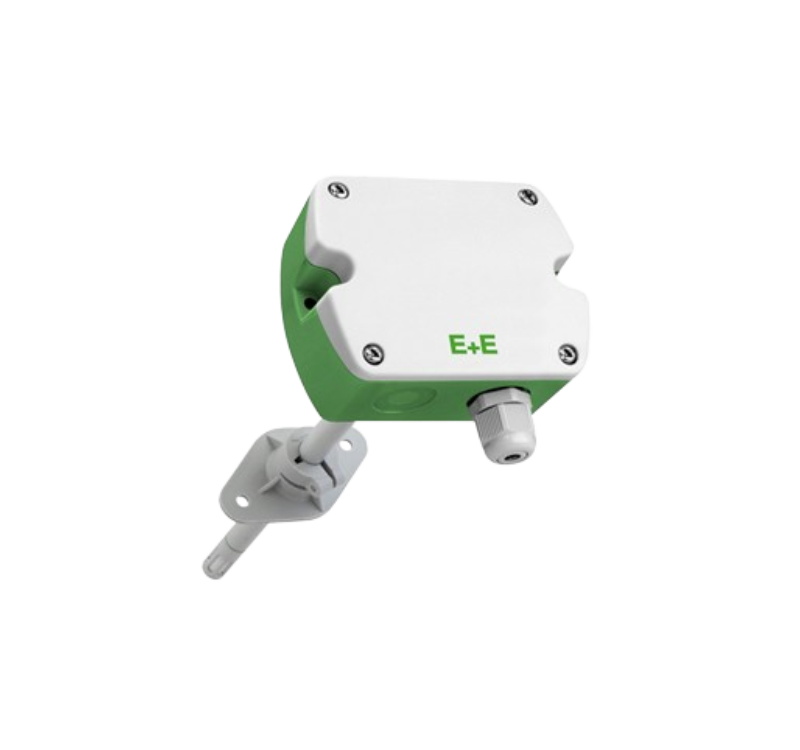

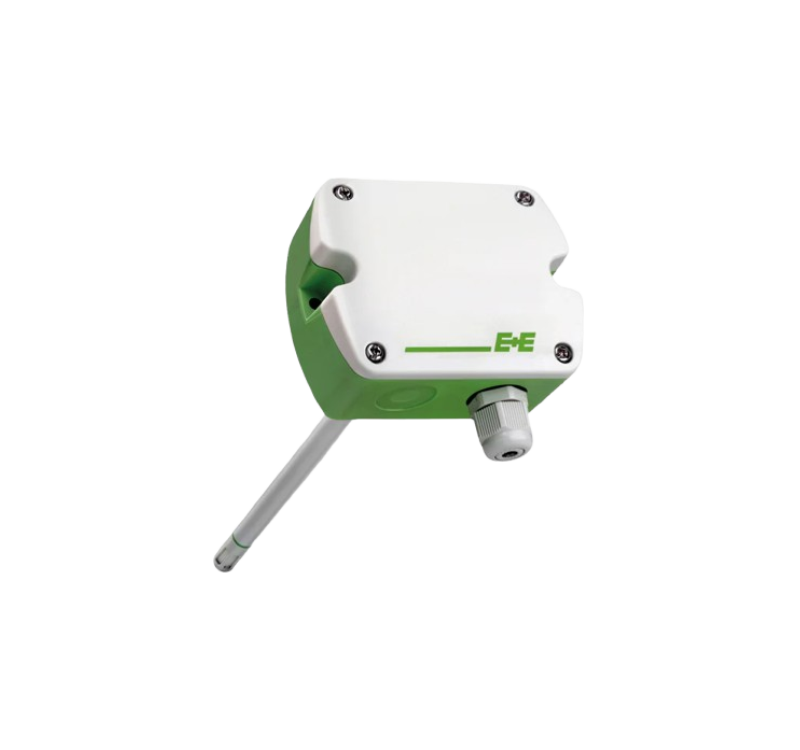

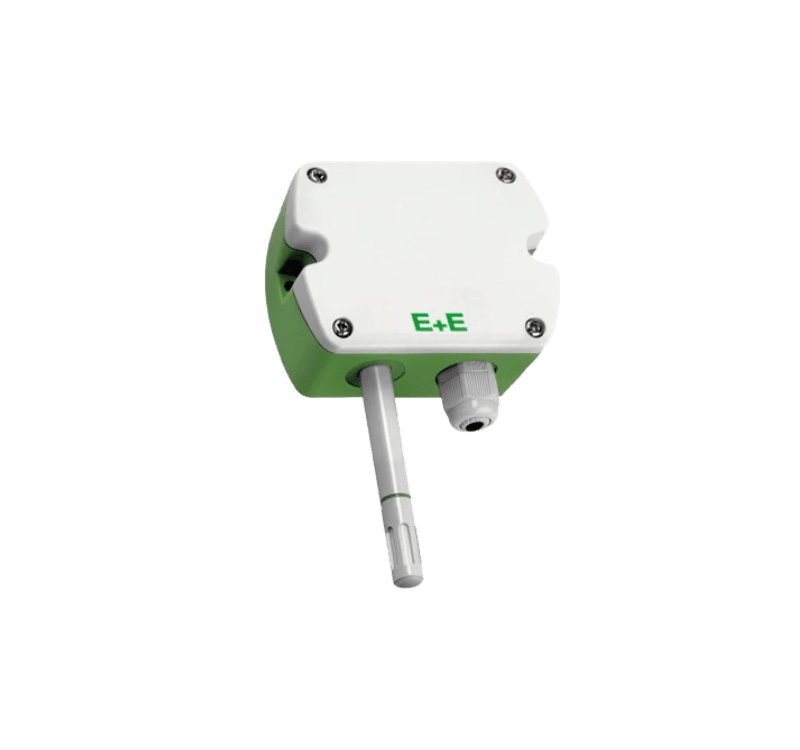

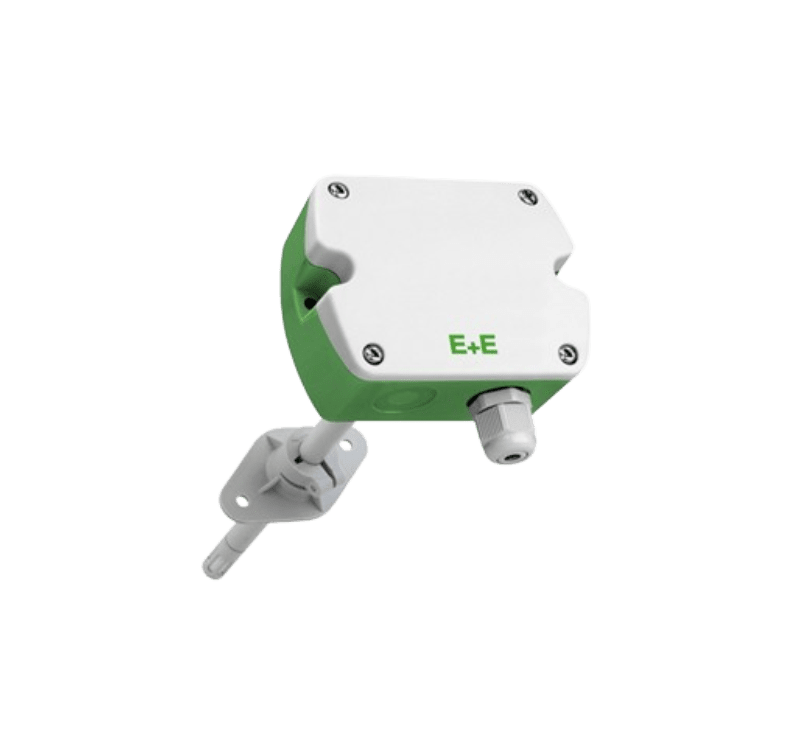

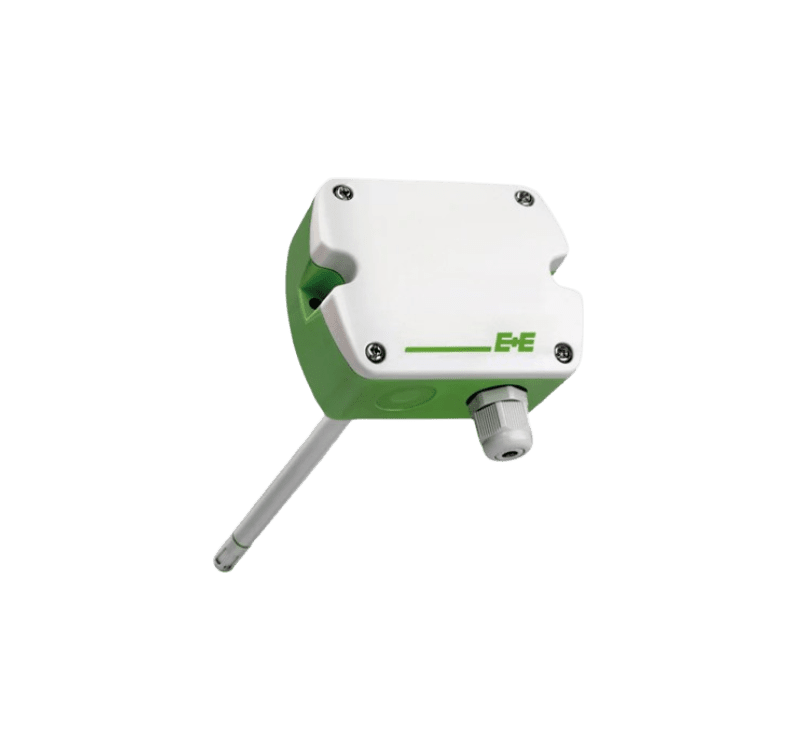

EE160
You need this reliable device when you can't leave air quality and temperature readings to chance. Lab environment or preventing mold in a mushroom farm, the EE160: Humidity and Temperature Sensor delivers precision you can trust day after day.
Specifications
| Measured Quantities | Relative Humidity (RH), Temperature (T). |
| Humidity Range | 0–100 % RH (non-condensing). |
| Humidity Accuracy | ±2 % RH at 23 °C ±2.5 % RH (0–40 °C) ±3.5 % RH (–20 to 60 °C) ±4.5 % RH (–40 to –20 °C) |
| Factory Calibration Uncertainty | ±(0.7 + 0.003 × measured value) % RH for 0–90 % RH; ±1 % RH for 90–100 % RH. |
| Temperature Range | –40 to +60 °C (–40 to +140 °F) |
| Temperature Accuracy | Varies with temperature: ±0.5 °C (0 °C), reducing to ±0.1 °C (20 °C); factory uncertainty ±0.1 °C. |
| Outputs | Analog: 0–10 V or 4–20 mA; Digital: RS485 / Modbus RTU; Optional passive T output. |
| Power Supply | 24 V AC/DC ±10%; DC versions: 15–30 V DC; 2-wire 4–20 mA version available. |
| Response Time (t63) | ~15 seconds (dependent on filter and flow). |
| Filter Element | Replaceable caps: PTFE, stainless steel, or plastic, offering contamination protection. |
| Sensor Coating/Protection | Encapsulated electronics with E+E’s proprietary sensor coating against moisture and pollutants. |
| Housing & Mounting | IP65 / NEMA 4X enclosure; wall or duct mounting; bayonet cover and robust probe design. |
| User Configuration | Configurable via USB stick + PCS10 software. |
| Certifications | CE, RoHS compliant; RS485 Modbus, optional BACnet available (per product version). |
Additional information
| Model Type | EE160 M1T2A6, EE160 M1T1J3P1BD5, EE160 M1T1A6 |
|---|---|
| Color | Green, Red, Yellow |
Main Features
- Dual Measurements: Tracks both relative humidity (RH) and temperature simultaneously.
- Long-Term Stability: Minimal drift over time for consistent readings.
- Low Maintenance: Robust construction reduces calibration needs.
- High Accuracy: ±1.5% RH and ±0.3°C precision for critical applications.
- Wide Operating Range : Works in -40°C to 80°C and 0–100% RH conditions.
- Analog & Digital Outputs: Supports 0–10V, 4–20mA, or Modbus RTU for flexible connectivity.
Industrial Applications
- Pharmaceutical cleanrooms: Maintains strict FDA-mandated climate conditions with audit-ready precision.
- Commercial greenhouses: Prevents crop loss by catching humidity spikes before mold takes hold.
- Data center HVAC: Stops costly downtime by alerting to cooling system failures before servers overheat.
- Museum preservation: Protects priceless artifacts by maintaining perfect 45-55% RH levels automatically.
- Smart Buildings: Essential for ensuring comfortable and healthy air in places like offices, schools, and libraries.
