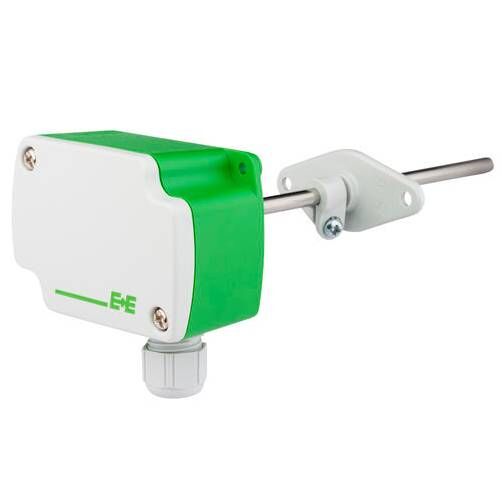

EE150 – Humidity & Temperature Transmitter
$999.00
Instromart delivers the EE150—an accurate, low-maintenance sensor for humidity and temperature, ideal for efficient HVAC and building system integration.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.
The EE150, available through Instromart, is a compact and durable sensing solution designed for precise humidity and temperature measurement in HVAC systems. Its IP65-rated housing and reliable sensor technology make it ideal for both wall and duct-mounted installations, ensuring long-term accuracy and minimal maintenance in building automation environments.
Technical Specifications:
| Measured Parameters | Relative Humidity (RH), Temperature (T) |
| Humidity Range | 0 to 100 % RH |
| Humidity Accuracy | ±2.5 % RH (10 to 90 % RH) |
| Temperature Ranges | –5 to +55 °C, 0 to +50 °C, –20 to +60 °C, –40 to +60 °C |
| Temperature Accuracy | ±0.3 °C (typical at 20 °C) |
| Output Signals | 0–10 V (3-wire) or 4–20 mA (2-wire) |
| Power Supply | 10–35 V DC or 12–30 V AC (voltage); 10–35 V DC (current) |
| Sensor Coating | E+E proprietary coating |
| Mounting Type | Wall-mounted or duct-mounted versions |
| Enclosure Rating | IP65-rated polycarbonate housing |
| Configuration | USB interface with E+E PCS software |
Main Features
Features:
• Captures humidity and temperature simultaneously
• Built for harsh HVAC conditions with an IP65-rated enclosure
• Selectable analog outputs: 0–10 V or 4–20 mA
• Protected sensing element with factory calibration
• Quick setup via USB service port using free software
Industrial Applications
Industrial Applications:
• Monitoring air quality in ventilation ducts and ambient zones
• Integration with BMS and automation systems
• Environmental regulation in labs and clean areas
• Climate management in IT and server infrastructure
• Indoor air control in industrial or commercial buildings
