EE10
AU$260.00
Instromart introduces the EE10 – a smart and adaptable humidity and temperature transmitter designed to ensure consistent indoor climate control. EE10 M1A6D1 — Compact transmitter module with 4–20 mA output for basic humidity and temperature monitoring.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.

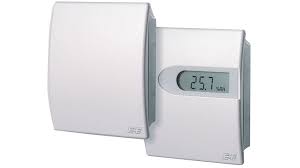

EE10 - Humidity and Temperature Room Sensor
The EE10 presents a compact and reliable transmitter for precise humidity and temperature monitoring in residential and commercial HVAC systems. With analogue outputs or digital interfaces like BACnet and Modbus RTU, the EE10 offers flexible integration and optional on-device display for real-time data. It also calculates advanced metrics such as enthalpy, frost point, and absolute humidity. Designed for easy installation, its two-part housing protects sensitive electronics during setup and allows quick, tool-free replacement. The EE10 blends performance, convenience, and style for modern climate control.
Technical Specifications:
| Measured Quantity | Relative Humidity |
| Sensor Type | E+E’s trusted sensing technology |
| Measurement Ranges | 0 to 95 % RH -5 to 55 °C |
| Accuracy | ±2 % RH (40-60 % RH) at 20 °C (analogue) ±3 % RH (10-90 % RH) at 20 °C (analogue) ±3 % RH (30-70 % RH) at 20 °C (digital) ±5 % RH (10-90 % RH) at 20 °C (digital) |
| Temperature dependence (t₉₀) | 0.06 % RH / °C (0.03 % RH / °F) |
| Analog Outputs | 0–10 V (-1< load current <1 mA) or 4–20 mA (load resistance < (UV - 10) / 0.02 < 500Ω) |
| Digital Interface | RS485 |
| Voltage Supply | 15 - 40 V DC or 24 V AC ±20 % 10 + 0.02 x RL < UV < 28 V DC (RL < 500 Ω) 15 - 35 V DC2) or 24 V AC ±20 % |
| Current Consumption | DC supply: 4 mA / AC supply: 15 mA rms (analogue) DC supply: 9 mA / AC supply: 20 mA rms (digital) |
| Operating Temperature | -5 to 55 °C |
| Storage Temperature | -25 to 60 °C |
| Humidity Range | 5–95 % RH |
| Protection Class | IP30 |
| Electrical Connection | Screw terminals max; 1.5 mm^2 (AWG 16) |
| Housing Material | Polycarbonate |
| Mounting Style | Wall mount |
| Configuration Tool | EE‑PCS (E+E Product Configuration Software) |
| Compliance | US Version: UL94 V-0 approved / EU Version: UL94 HB approved |
Main Features
Features:
- Accurate measurement of humidity and temperature for HVAC systems
- Analog (0–10 V / 4–20 mA) and digital (BACnet / Modbus RTU) outputs
- Optional display for quick local data viewing
- Calculates advanced metrics like enthalpy and frost point
- Two-part housing for easy, tool-free installation
- Available in multiple sizes to match regional standards
Industrial Applications
- Commercial and residential HVAC systems
- Data centers for equipment protection
- Pharmaceutical and cleanroom climate control
- Museums and archives for preservation
- Smart buildings for energy-efficient automation
