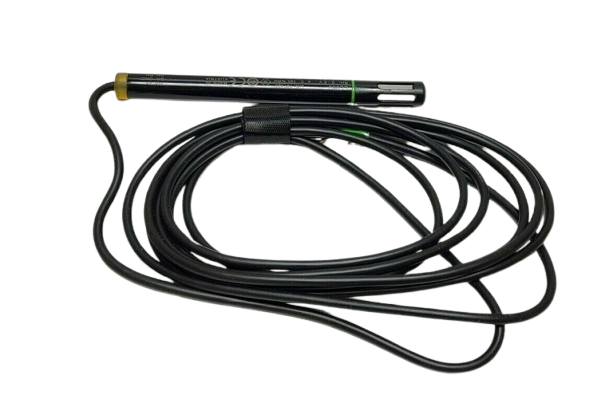

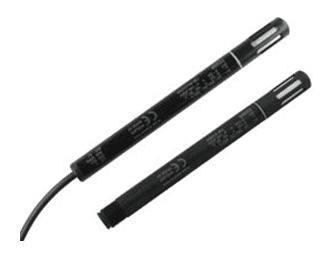

EE060 – Humidity & Temperature Probe
$999.00
The EE060 from Instromart is a compact and accurate humidity and temperature probe, ideal for OEM and space-constrained HVAC monitoring applications.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.
EE060 – Compact Humidity & Temperature Probe
Instromart presents the EE060, a cost-effective and reliable probe designed for precise measurement of relative humidity and temperature. With its compact design, robust sensor protection, and long-term stability, the EE060 is ideal for embedded HVAC and building automation applications.
Technical Specifications:
| Measured Parameters | Relative Humidity (0–100 % RH), Temperature (-40…+60 °C) |
| Humidity Accuracy | ±2.5 % RH at 20 °C (all ranges) |
| Temperature Accuracy (active) | ±0.3 °C (±0.5 °F) at 20 °C |
| Analog Output Channels | 0–1 V, 0–5 V, or 0–10 V (load current limits as per output) |
| Supply Voltage | Version-dependent: 3.6–30 V DC (0–1 V) or 10–30 V DC (0–5/10 V) |
| Current Consumption | Typically 1.5 mA |
| Connection Options | M12×1 connector (4‑pole) or cable with specified length and filter cap |
| Filter Options | Membrane or metal grid |
| Operating Temperature Range | -40 to +60 °C |
| Housing Protection | IP65 polycarbonate body |
| Sensor Protection | Encapsulated electronics with thick sensor coating |
| Typical Response Time | Approx. 15 seconds (t₆₃) depending on filter type |
| Certifications | CE, EMC EN 61326‑1 (industrial), FCC Class B, ICES‑003 Class B |
Main Features
Features:
• Simultaneous humidity and temperature measurement in one compact probe
• Excellent long-term stability and accuracy
• Factory-calibrated digital sensor core
• Protective coating on sensing elements enhances resistance to contamination
• Built to support integration in confined setups and precision systems
Industrial Applications
Industrial Applications:
• Compact HVAC units and control panels
• Embedded systems in ventilation and climate control devices
• Indoor air quality monitoring in automation systems
• OEM applications requiring stable humidity/temperature data
