EC-777E High-Precision Coating Thickness Gauge
$999.00
EC-777E is backed by dual technology, i.e., it uses both eddy current and magnetic induction to measure coating thickness.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.
Hassle-Free Measurement of Coating Thickness: EC-777E

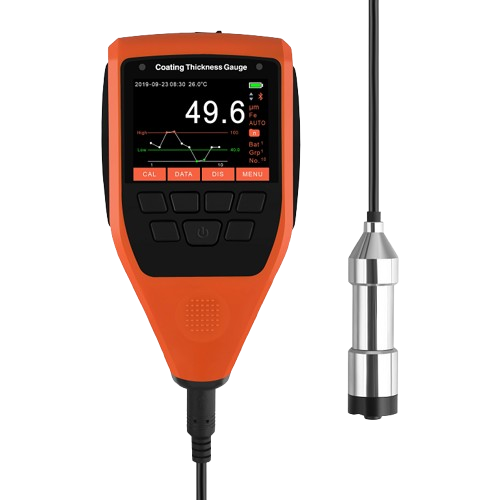

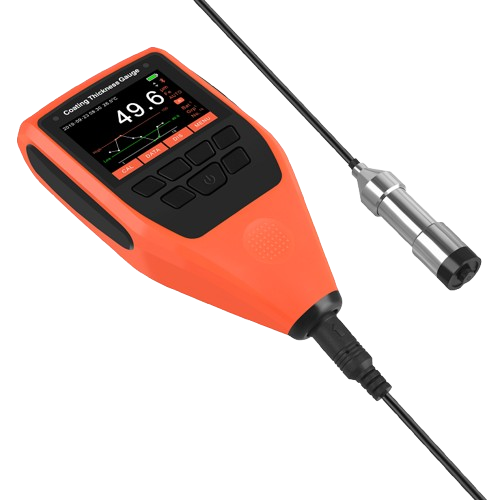

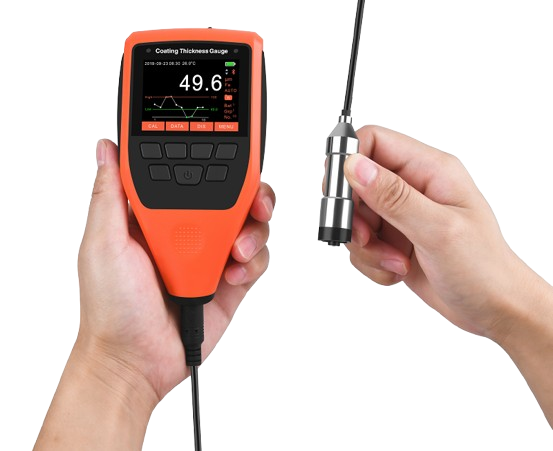

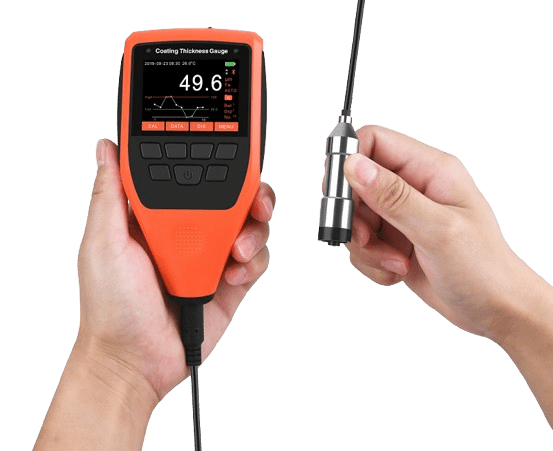

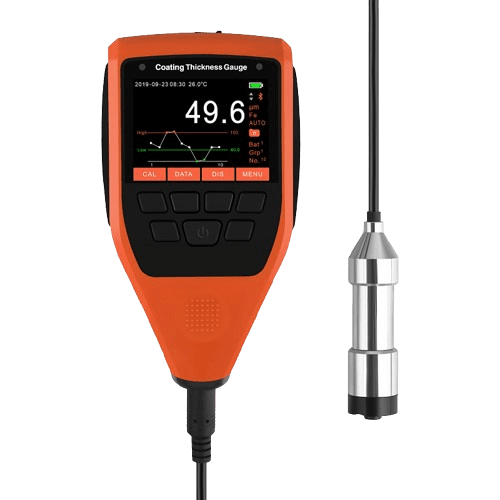

Dual technology, backed EC-777E, i.e., it uses both eddy current and magnetic induction to measure coating thickness. A separate probe, two batteries, and a USB cable accompany the EC-777E. The probe consists of stainless steel and weighs approximately 63 grams. You can see the measurement results of this device either on your laptop or on your mobile. Look at EC-900
Specifications
|
Probe type
|
Separated probe
|
|
Measuring Principle
|
Fe: Magnetic induction; NFe: Eddy currents
|
|
Measuring Range
|
0~2000μm
|
|
Accuracy
|
±(2%+1μm)
|
|
Resolution
|
0.1μm(0~100μm); 1μm(>100μm)
|
|
Display
|
2.4 inch color screen
|
|
Unit
|
μm, mm, mils, inch
|
|
Temperature Range (Operation/Storage)
|
(-10 to 50 °C) / (-20 to +60 °C)
|
|
Chart
|
Curve, bar chart or trend chart
|
|
Readings Memory
|
10x13x10 measurement data
|
|
Minimum measuring area
|
Diameter 15mm
|
|
Probe trigger mode
|
Mechanical trigger, trigger force: 0.4-0.8N
|
|
Minimum thickness of Substrate
|
Fe: 0.20mm/NFe: 0.03mm
|
|
Maximum measuring rate
|
2 readings
|
|
Power Supply
|
2pcs 1.5V AA alkaline batteries, 2pcs 1.2V AA rechargeable batteries
|
|
Size
|
Housing: 146X76X32mm; Wire: ⌀3.5X1000mm; Probe: ⌀17X67mm
|
|
Case
|
Housing: ABS; Probe: Stainless steel
|
|
Weight
|
Housing: about 137g(no batteries); Probe: about 63g
|
|
Standards/Certificates
|
CE, ROHS, ISO 2178, 2360, GB./T 4956-2003, 4957-2003, JJG-818-2005
|
Main Features
- EC-777E comes with a separate probe.
- It allows you to perform statistical analysis of data.
- The measuring range of EC-777E is 0 to 2000 micrometers.
- It facilitates both zero and multipoint calibration.
- EC-777E comes with a 12-months warranty.
- It displays four units of measuring values.
- EC-777E is known as a highly accurate device for measuring coating thickness.
- It comes with a volume-adjusting knob.
- The device has a 2.4-inch color screen.
- EC-777E comes with Bluetooth and app support.
- EC-777E measures the coating thickness of the non-conductive coating on a non-magnetic surface.
- It measures the non-magnetic coating on a ferrous substrate.
Industrial Applications
- Manufacturing: EC-777E checks the coating thickness of various products that belong to the manufacturing industry.
- Construction: It measures the coating thickness of various construction materials to ensure their durability.
- Electronics: Insulated coatings are found on various electronic components. The device measures it to check its performance and durability.
