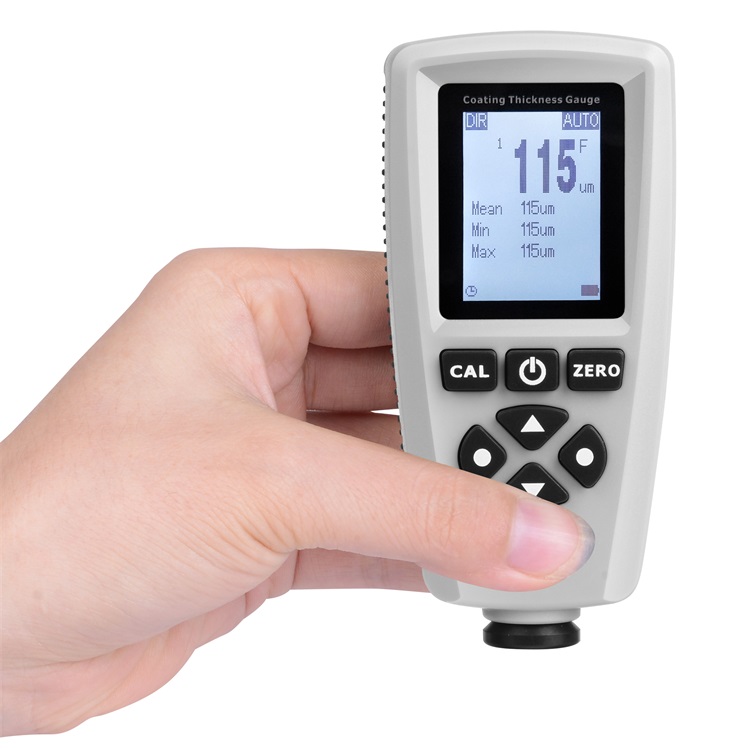

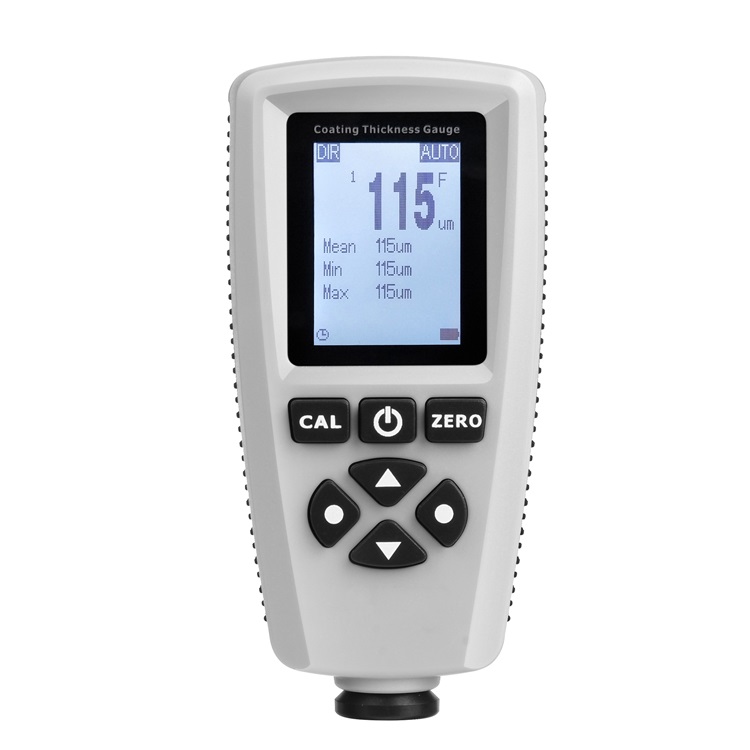

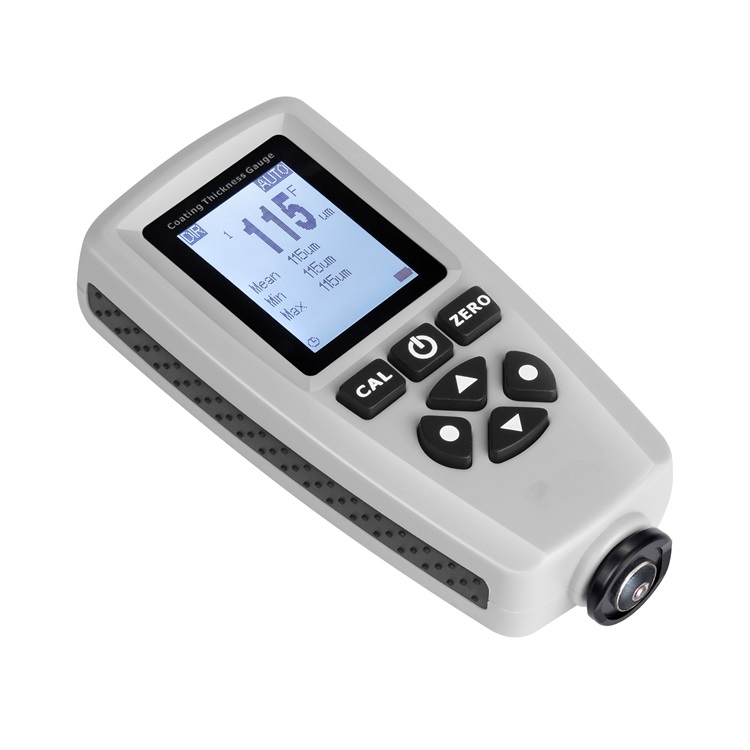

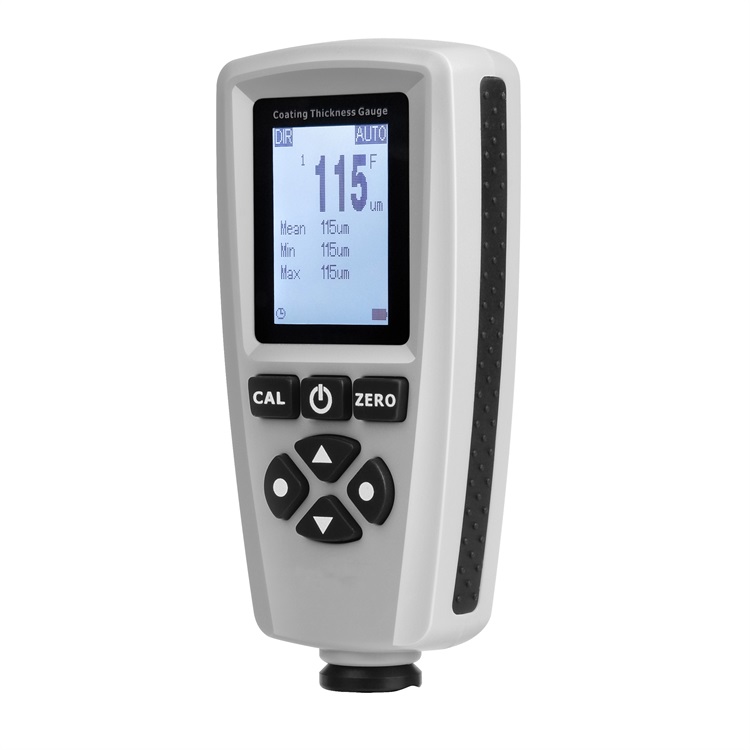

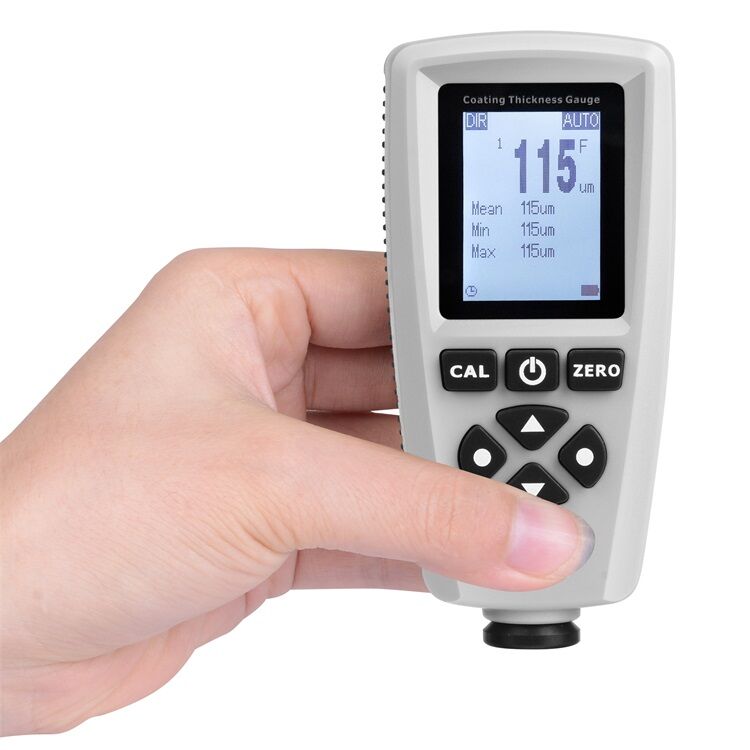

EC-770P Coating Thickness Tester
$999.00
EC-770P coating thickness gauge is ideal for non-destructive measurement of coating thickness.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.
Professional High Accuracy Coating Thickness Tester: EC-770P
The EC-770P coating thickness gauge is ideal for non-destructive measurement of coating thickness, suitable for non-magnetic coatings such as paint, enamel, and chrome on steel, as well as insulating coatings like paint and anodized layers on non-ferrous metals. Know about EC-770SE
Specifications
| Measuring Principle | Fe: Magnetic induction; NFe: Eddy currents |
| Measuring Range | 0–2000 μm |
| Accuracy | ±(2.5% + 1 μm) |
| Resolution | 0.1 μm (0–99.9 μm), 1 μm (≥100 μm) |
| Power Supply | Two 1.5V AAA batteries |
| Readings Memory | 320 readings for EC-770 |
| Unit | μm, mm, mils |
| Size / Case Material | 114 mm x 53 mm x 25 mm / 80 g / ABS |
| Standards / Certificates | CE, ROHS, ISO 2178, 2360, GB / T 4956-2003, 4957-2003 |
| Storage Environment | Temperature: -20–60°C |
| Operation Environment | Temperature: -20–60°C |
Main Features
- High accuracy and measurement stability
- 128×128 dot matrix LCD with user-friendly menu interface
- Rotatable LCD for easy operation
- LCD displays mean, maximum, minimum, and standard deviation
- Alarm limit with red backlight indication
- Data storage, recall, and deletion options
- Simple zero calibration and multi-point calibration support
- USB connectivity for PC integration and data transfer
- Supports multiple languages for global usability
- Handles up to 5 measurement groups
- Automatically detects substrate type (F or N)
- Accurate Readings: Shows maximum, minimum, and average values for precise analysis.
- Smart Detection: Automatically identifies the properties of the substrate.
- Reliable Measurements: Provides consistent results even when the probe is retracted.
- Effortless Operation: The user-friendly probe quickly adapts to different surfaces.
- Non-Destructive: Measures coating thickness without causing any damage to the material.
- Versatile Compatibility: Works with both ferromagnetic and non-ferromagnetic metals.
Industrial Applications
- Painting
- Automotive
- Aerospace
- Manufacturing
