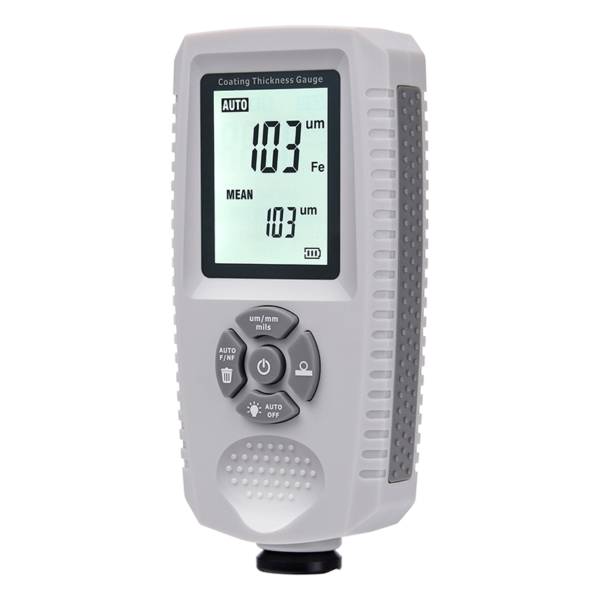

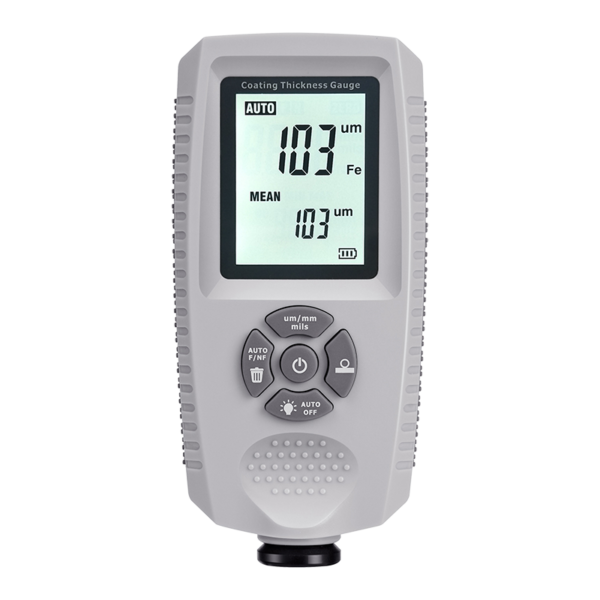

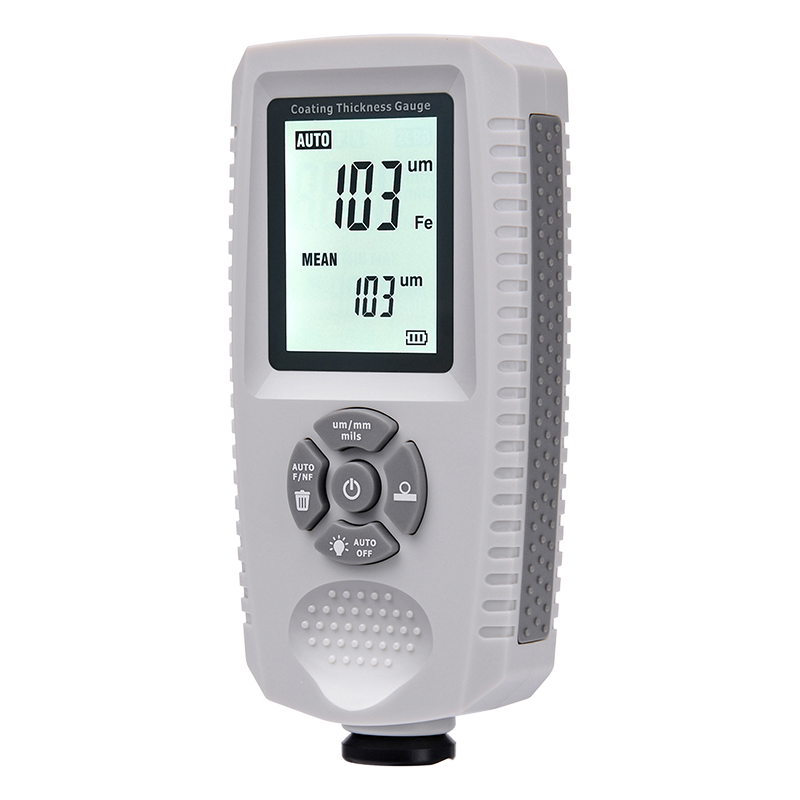

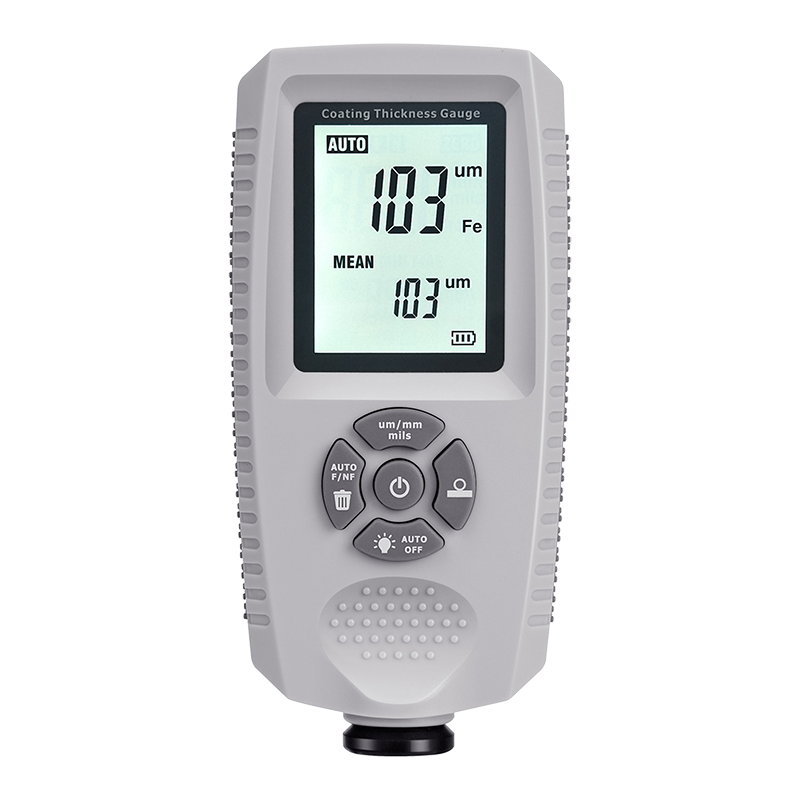

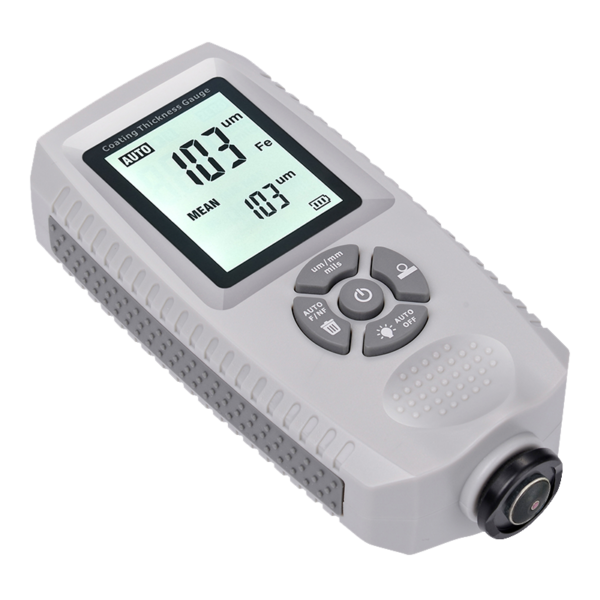

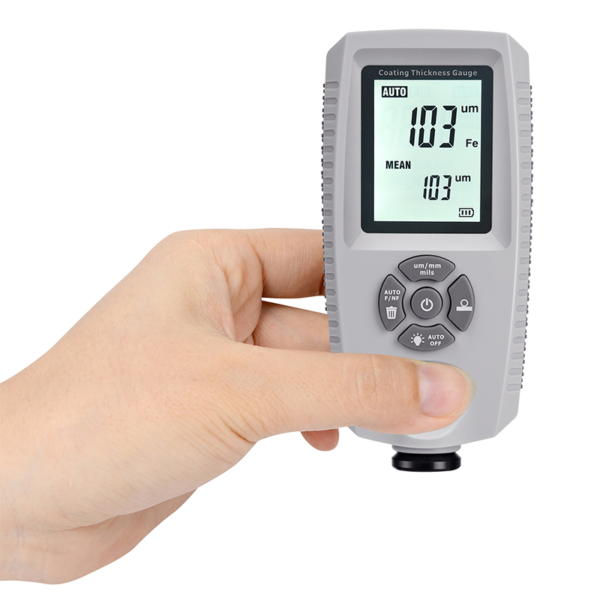

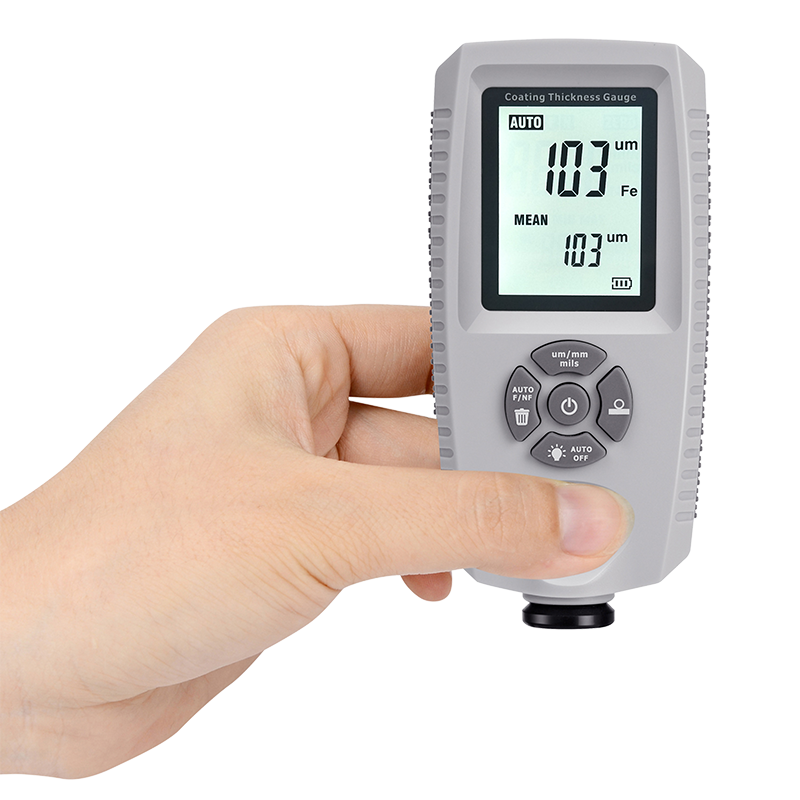

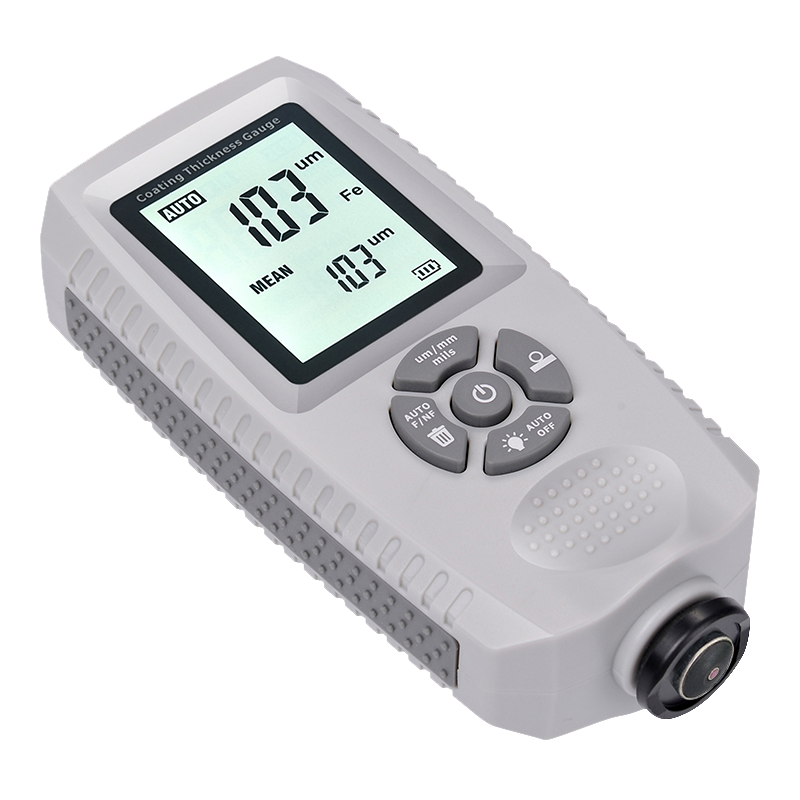

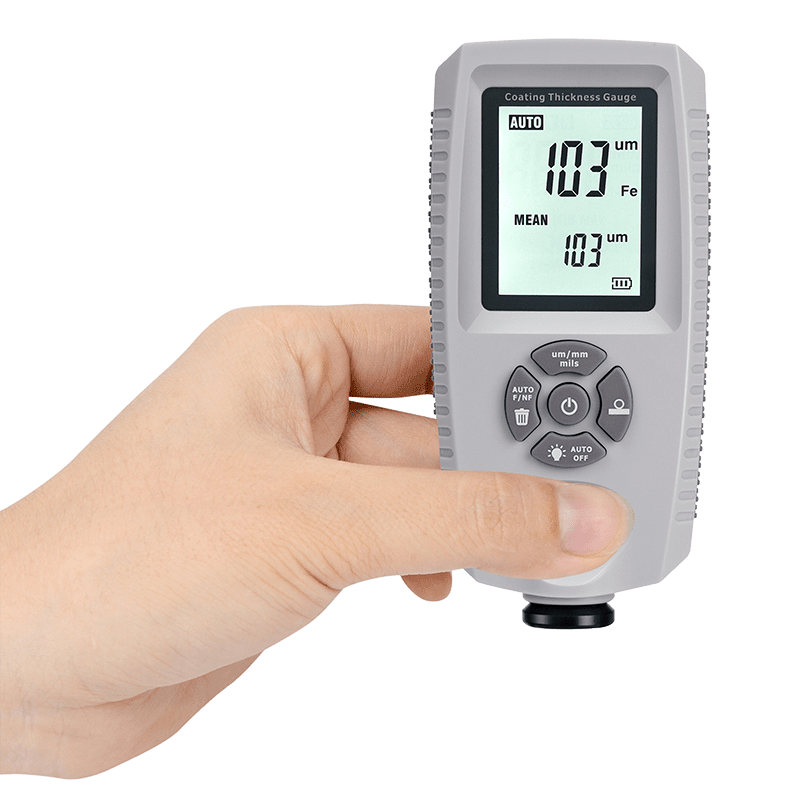

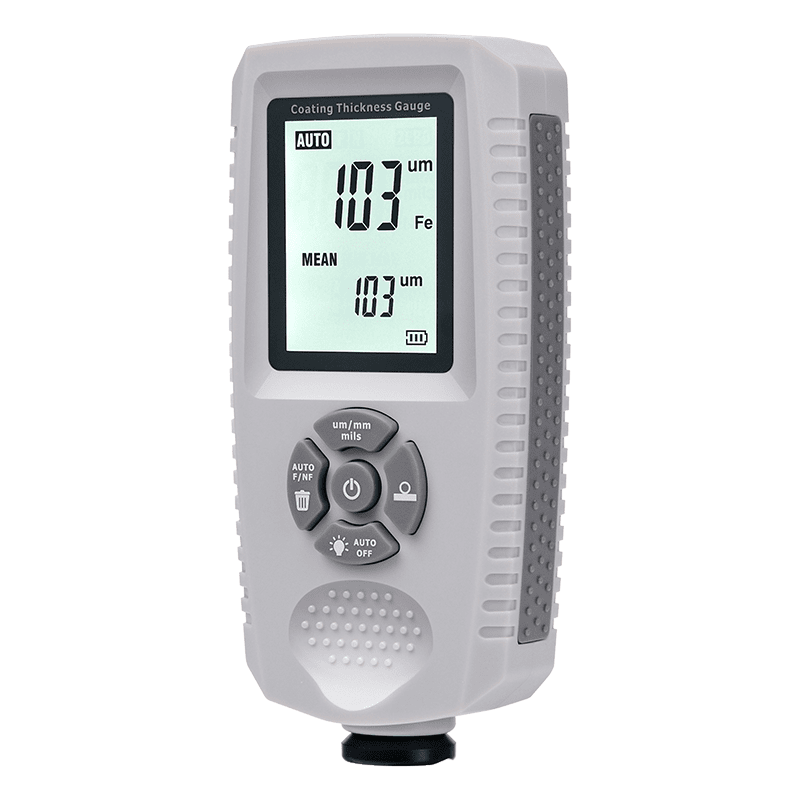

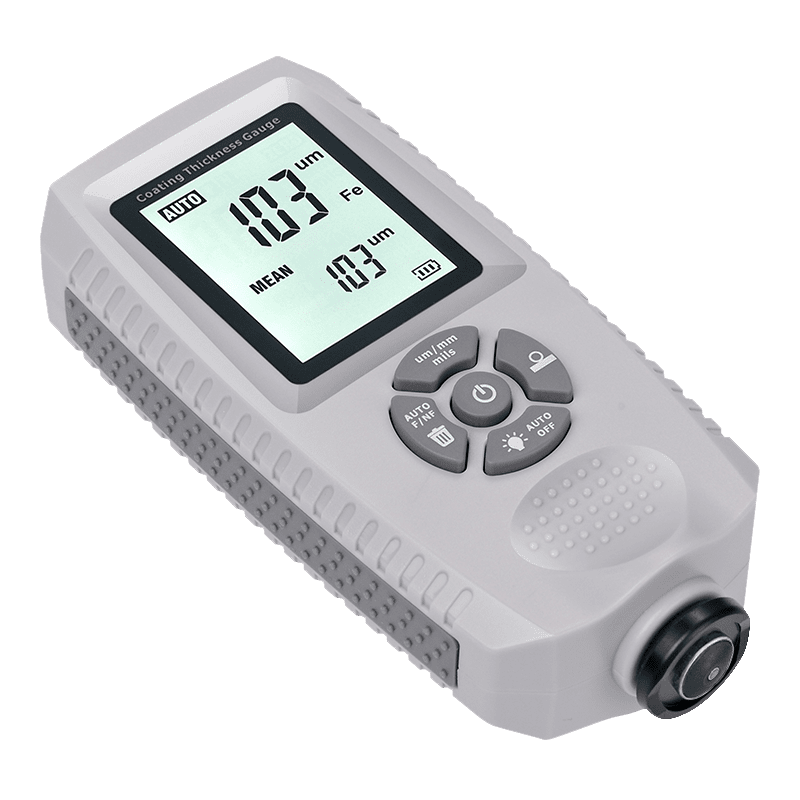

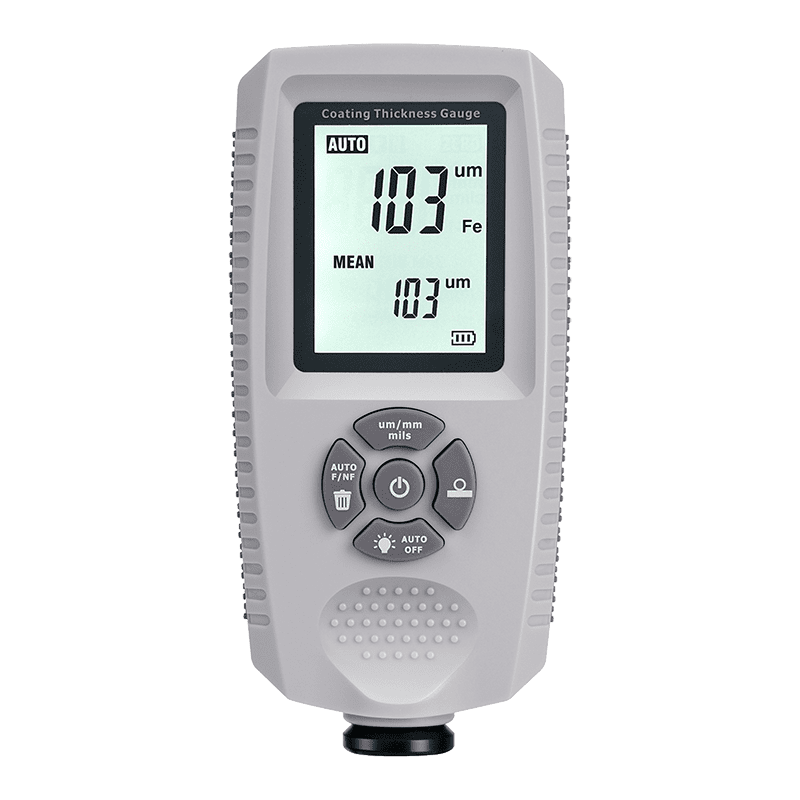

EC-500A Compact Coating Thickness Gauge
$999.00
EC-500A is a compact coating thickness gauge designed for non-destructive measurement of coating thickness.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.
Economical Coating Thickness Measuring Device: EC-500A
The compact EC-500A coating thickness gauge's design allows for non-destructive measurement of coating thickness, making it ideal for assessing non-magnetic coatings such as paint, enamel, and chrome on steel, as well as insulating coatings like paint and anodized layers on non-ferrous metals.
Specifications
| Measuring Principle | Fe: Magnetic induction; NFe: Eddy currents |
| Measuring Range | 0–1500 μm |
| Accuracy | ±(3% + 1 μm) |
| Resolution | 0.1 μm (0–99.9 μm), 1 μm (≥100 μm) |
| Unit | μm, mm, mils |
| Operation Environment | Temperature: -10–50°C |
| Storage Environment | Temperature: -10–60°C |
| Power Supply | Two 1.5V AAA batteries |
| Standards / Certificates | CE, ROHS, ISO 2178, 2360, GB / T 4956-2003, 4957-2003 |
| Size / Weight / Case Material | 116 mm x 53 mm x 24 mm, 80 g (incl. probe) / ABS |
Main Features
- High measurement accuracy and stability
- LCD display shows number, mean, maximum, and minimum readings
- Simple zero calibration process
- Automatic shutdown for energy efficiency
- Low battery indicator for timely replacement
- Automatic substrate type detection
- Accurate Readings: Displays maximum, minimum, and average values.
- Smart Detection: Automatically identifies substrate properties.
- Reliable Measurements: Ensures precision even with probe retraction.
- Effortless Operation: User-friendly probe adapts to surfaces quickly.
- Non-Destructive: Measures coating thickness without damaging materials.
- Versatile Compatibility: Works with ferromagnetic and non-ferromagnetic metals.
Industrial Applications
- Painting
- Automotive
- Aerospace
- Manufacturing
