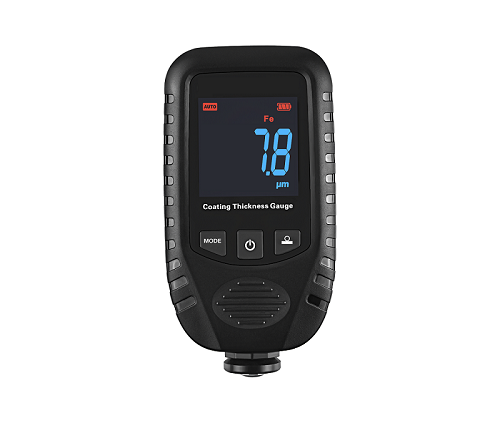

EC-470B Coating Thickness Gauge
$999.00
EC-470B thickness gauge enables non-destructive coating measurement on ferrous and non-ferrous metals.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.
Coating Thickness Gauge
The EC-470B thickness gauge enables non-destructive coating measurement on ferrous and non-ferrous metals. It accurately measures paint, galvanized layers, and plastic films. A colour segment LCD ensures high precision in low-light environments.
Specifications
| Probe Type | Internal |
| Measuring Principle | Fe: Magnetic Induction; NFe: Eddy Currents |
| Measuring Range | 0~2000µm |
| Accuracy | ±(3% + 1µm) |
| Resolution | 0.1µm (0~100µm); 1µm (>100µm) |
| Unit | µm, mm, mil |
| Iron Putty Power Identification Range | 0~1000µm |
| Iron-Galvanized Substrate Recognition Range | 3~500µm |
| User Calibration Method | Zero Calibration |
| Probe Triggering Force | 0.5~1.2N |
| Minimum Measurement Area | Diameter 15mm |
| Minimum Substrate Thickness | Fe: 0.30mm; NFe: 0.05mm |
| Maximum Measuring Speed | 2 readings/sec |
| Display | Color Segment LCD Screen |
| Operating Environment | -10~50℃ |
| Storage Environment | -20~60℃ |
| Power Supply | 2 pcs AAA 1.5V alkaline batteries; 2 pcs AAA 1.2V rechargeable batteries |
| Protection Class | IP40 |
| Dimensions | 102 × 53.6 × 25mm |
| Material | ABS |
| Weight | About 75g (without batteries) |
Main Features
- High Resolution: Up to 0.1µm
- Precision Accuracy: ± (3% + 1µm)
- Wide Measuring Range: 0~2000µm
- Continuous Measurement Support
- Zero Calibration Function
- Iron Putty Power Identification
- Iron-Galvanized Substrate Recognition
- Battery Protection
- Manual Screen Rotation
- Automatic Shutdown
- Fast Reaction Time: Less than 0.5 seconds
- High Precision Measurement: Ensures accuracy with a resolution of 0.1µm.
- Dual Technology: Supports magnetic induction and eddy current methods.
- Substrate Recognition: Auto-detects ferrous (Fe) and non-ferrous (NFe) metals.
- Wide Measurement Range: Measures thickness from 0 to 2000µm.
- User Calibration: Supports zero calibration for precise results.
- Fast Response: Provides measurements in less than 0.5 seconds.
- Data Recording: Stores, recalls, and deletes previous readings.
- Alarm System: Red backlight alerts for user-defined limits.
- Rotatable Display: Manual screen rotation for ease of use.
- Battery Protection: Auto shut-down function for extended battery life.
Industrial Applications
- Medical Equipment Production.
- Shipbuilding & Marine Industry.
- Automotive Industry.
