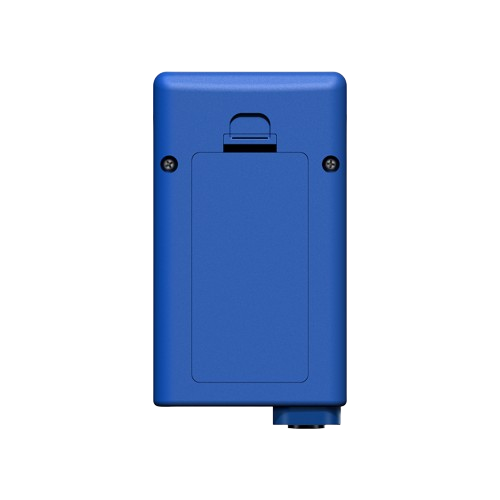

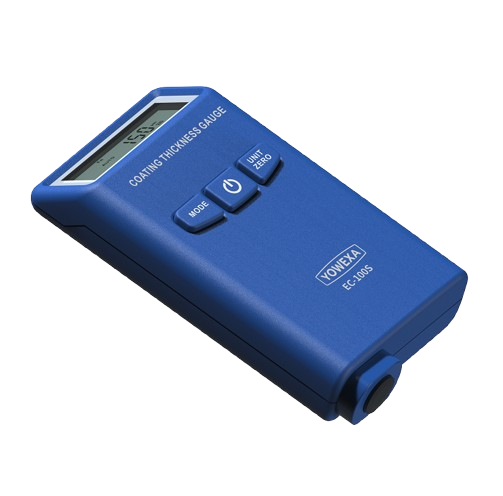

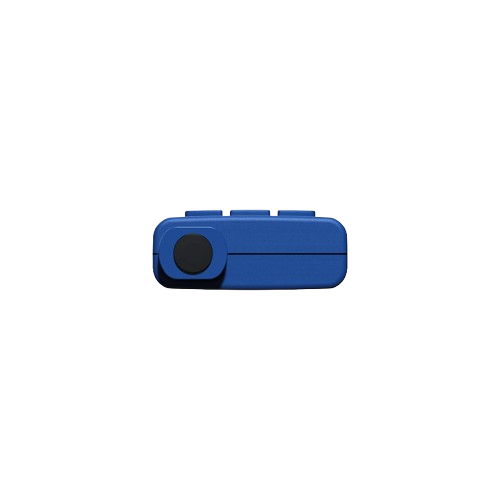

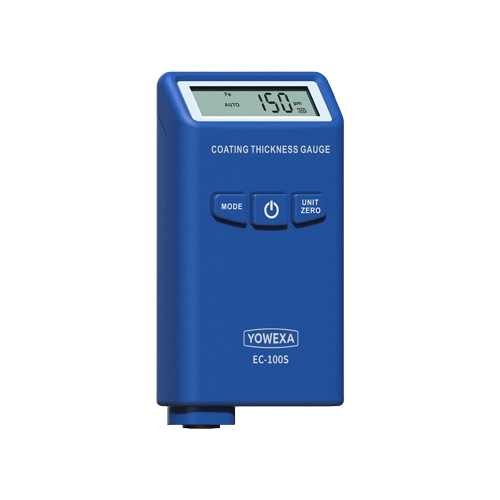

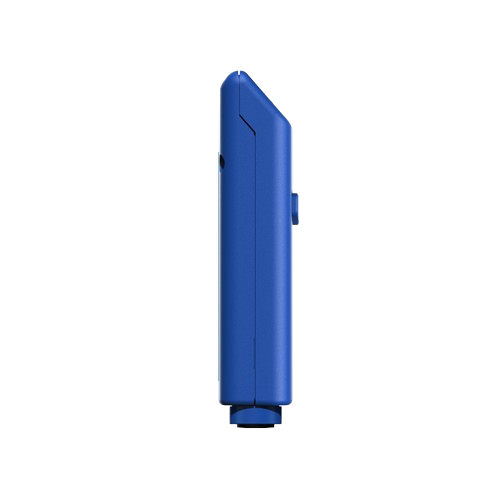

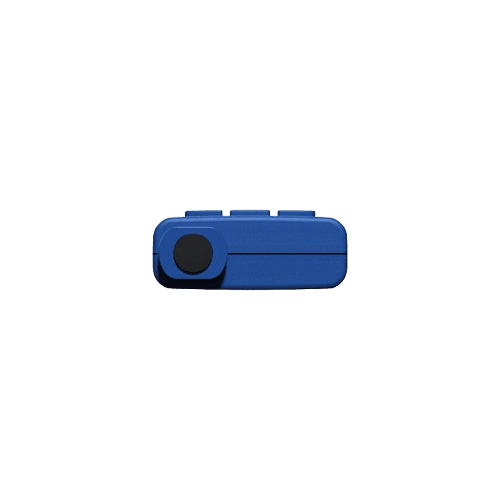

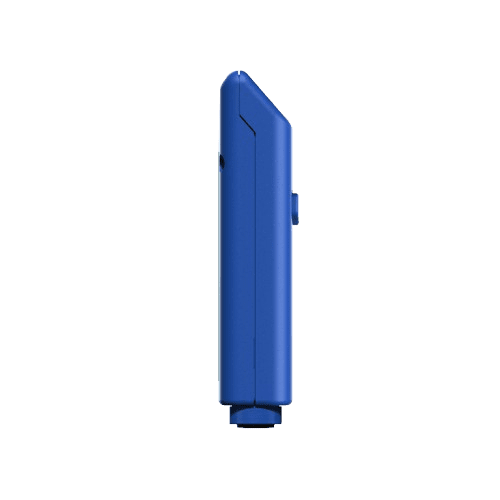

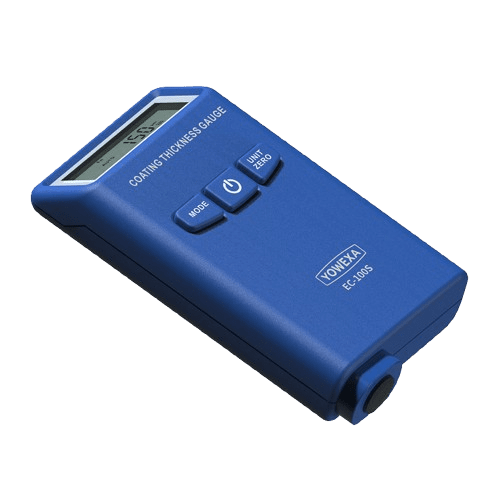

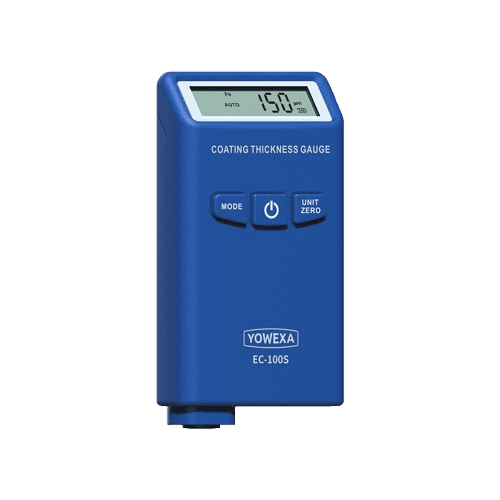

EC-100S Coating Thickness Sensor

Main Features

• EC-100S comes with a 10µm resolution.
• The instrument operates within the temperature range of 0 to 50 degrees Celsius.
• It can measure the coating thickness from 0 to 2000µm.
• The units displayed on the LCD are in µm, mm, and mils.
• It features a digital screen that provides accurate measurement readings.

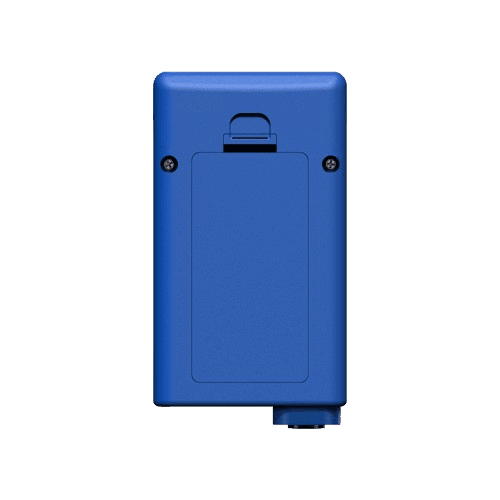

• EC-100S comes with two 1.5-Volt AAA batteries.
• The optimum storage environment for this device is within -20 to 60 °C.
• The device will shut down automatically when the user doesn’t use it.
• The instrument weighs around 45 g.
• EC-100S is CE, ROHS, and IOS certified.
• It is available at a low cost.
• You can easily do zero calibration.
• Low battery indication.
• EC-100S is a battery-operated device that also indicates to the user when the battery is low.
• It measures the non-magnetic coatings like paint or enamel on a magnetic substrate like steel.
• EC-100S measures the thickness of insulated or anodized coatings on a non-ferrous metal substrate. For example, it can measure the paint coating thickness of an aluminum surface.

Industrial Applications

• Automotive Industry: EC-100S is used in the automobile industry to check the thickness of the paint applied to the vehicle. If the thickness is within a specific range, then the durability of the paint is ensured.
• Aerospace Industry: The device measures the coating thickness of an anodized layer on different aluminum aircraft components. A proper thickness range will ensure the durability and corrosion resistance of the product.
• Electronics: The device measures the thickness of insulated coatings on various electronic components. It helps to ensure its proper function and insulation capability.
• Manufacturing: The device measures the thickness of non-conductive coatings, such as paint, on various metal parts.
