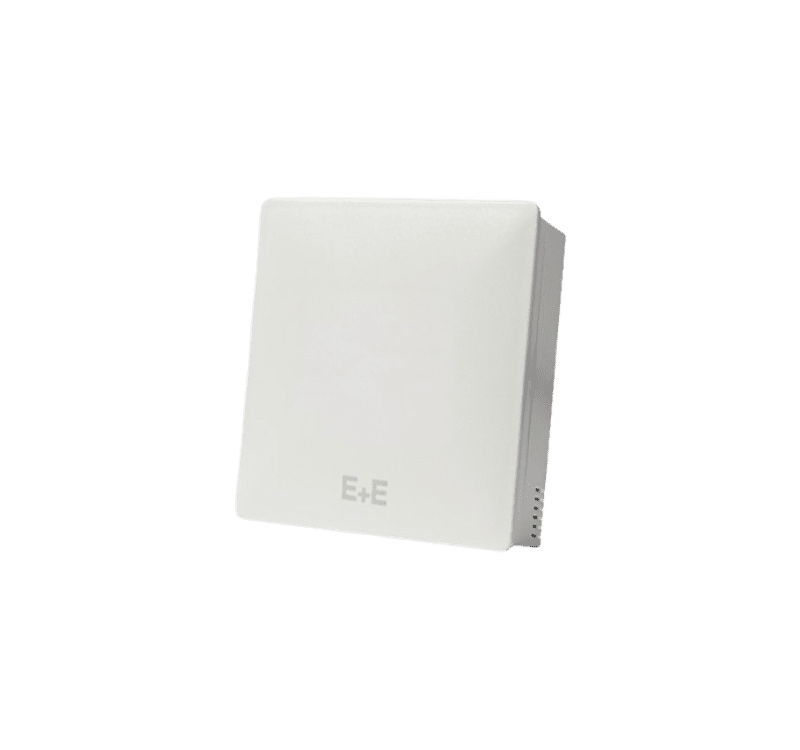

CDS201
$999.00
The CDS201, distributed by Instromart, It combines CO₂, temperature, and humidity sensing in a streamlined, space-efficient design. Suitable for both residential and commercial environments, the CDS201 provides reliable indoor air quality monitoring and supports energy-efficient ventilation management.
Contact Our Technical Experts 1300 000 000
Get expert advice—select with certainty.
CDS201

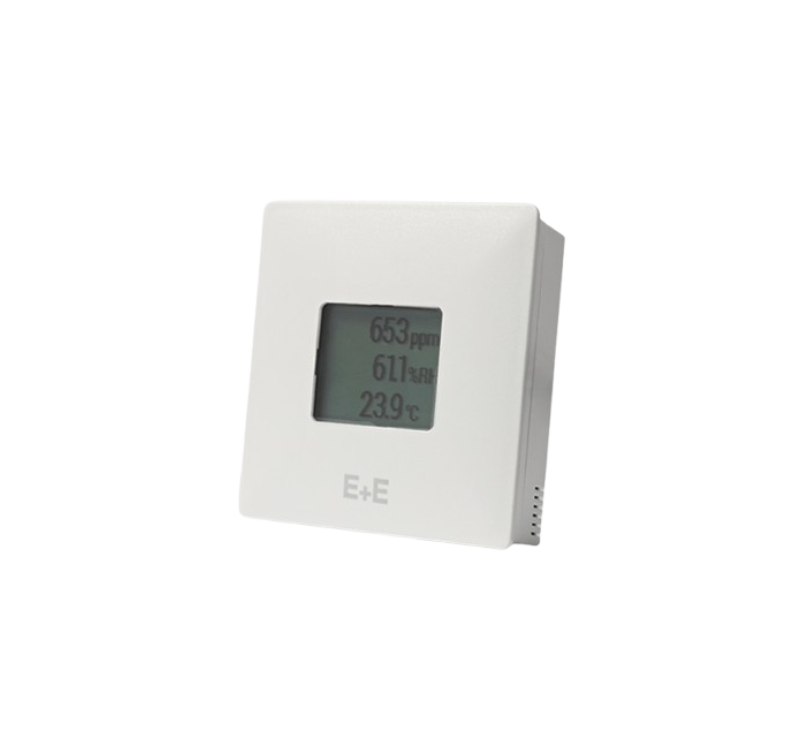

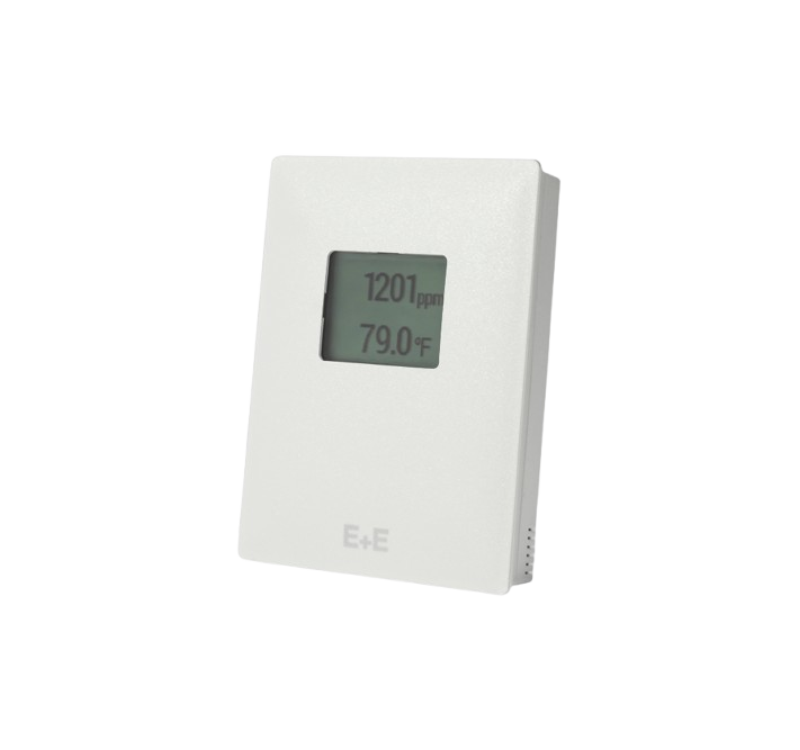

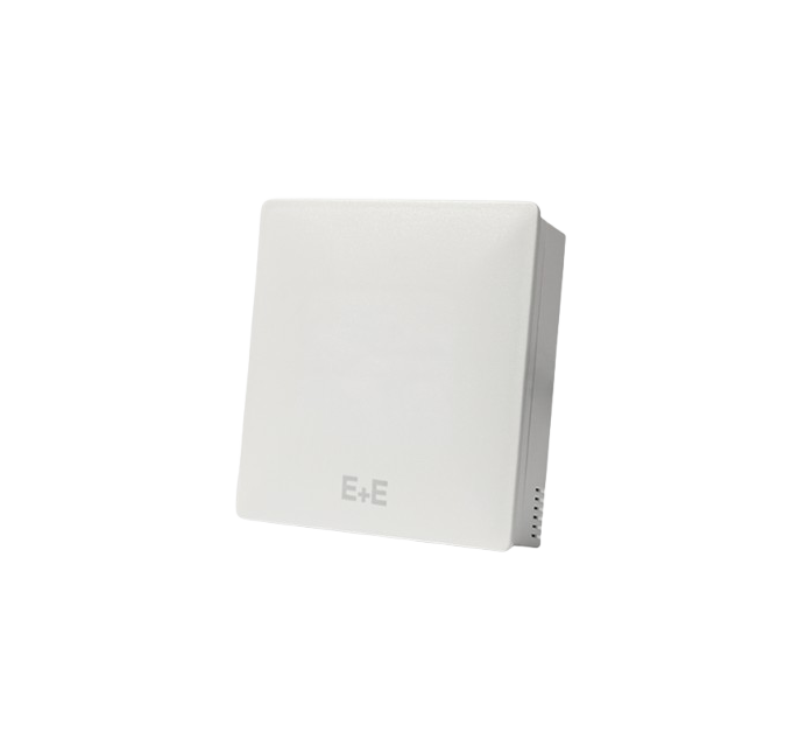

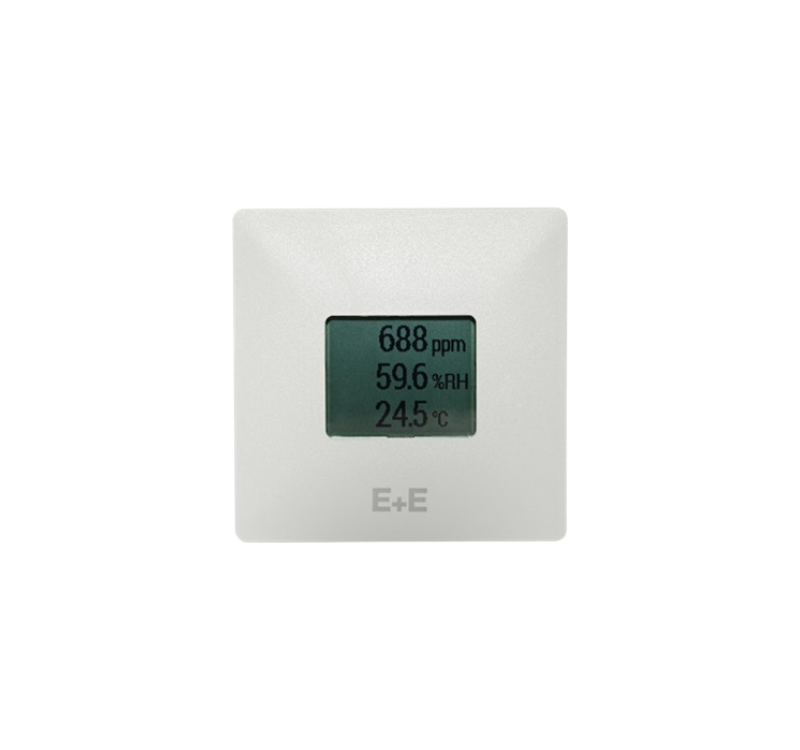

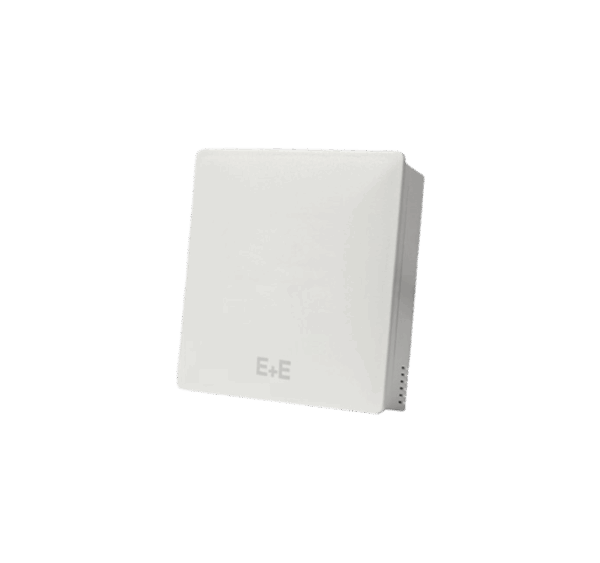

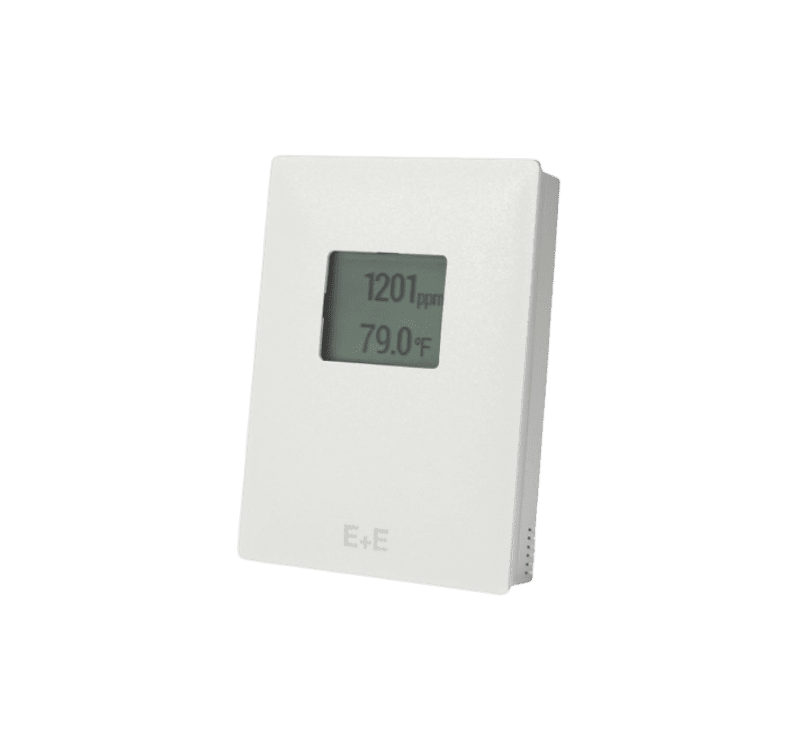

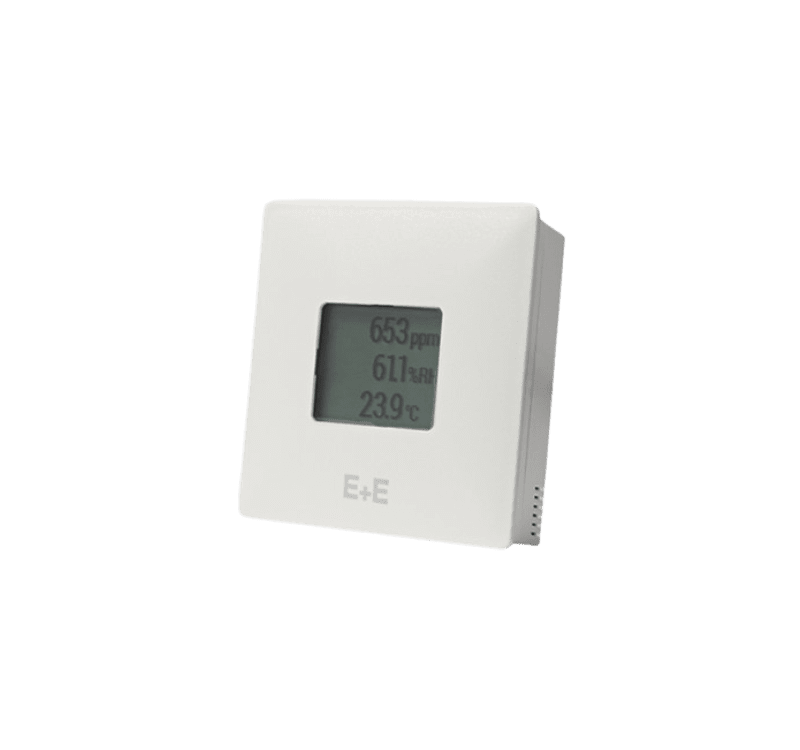

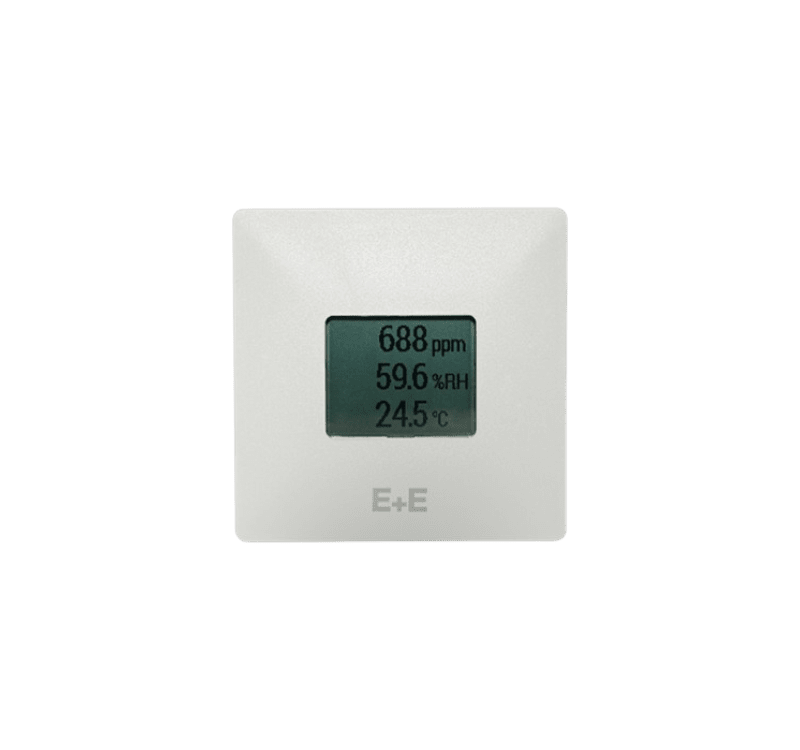

The CDS201 is a precision indoor sensor designed for demand-driven ventilation and advanced building automation systems. It combines CO₂, temperature, and humidity sensing in a streamlined, space-efficient design. Suitable for both residential and commercial environments, the CDS201 provides reliable indoor air quality monitoring and supports energy-efficient ventilation management. Available in both EU and US configurations, it also offers an optional LCD for live data display.
Specifications
| Measurement Range - CO₂ | 0–2000 ppm (default), 0–5000 ppm optional |
| Measurement Range - Temp | 0–50°C |
| Measurement Range - RH | 0–95% RH (non-condensing) |
| Accuracy - CO₂ | ±(50 ppm + 3% of measured value) |
| Accuracy - Temp | ±0.3°C |
| Accuracy - RH | ±2% RH |
| Power Supply | 15–35 V DC / 24 V AC |
| Output | Analog (0–10 V) or RS485 Modbus |
| Enclosure Format | EU / US wall mount |
| Display (optional) | LCD with CO₂, Temp, RH readouts |
| Operating Temperature | 0–50°C |
| Protection Class | IP30 |
Main Features
• Simultaneous monitoring of CO₂ levels, temperature, and relative humidity
• Demand-controlled ventilation (DCV) support
• Two enclosure formats: EU and US
• Optional LCD display for real-time data
• Analog and digital outputs (0–10 V, Modbus RTU)
• Wall-mounted for easy installation.
• CO₂-based ventilation control
• Indoor climate monitoring
• HVAC automation
• Air quality optimization for health and productivity
• Building Management System (BMS) integration
Industrial Applications
• Residential Automation: Maintains healthy indoor air quality and comfort in smart homes.
• Educational Institutions: Regulates CO₂ levels in classrooms for better cognitive function.
• Combined measurement of CO₂ levels, temperature, and relative humidity.
• HVAC Systems: Integrated control for air handling units and VAV systems in large buildings.
• Green Buildings: Supports sustainability goals by reducing energy consumption via DCV.
